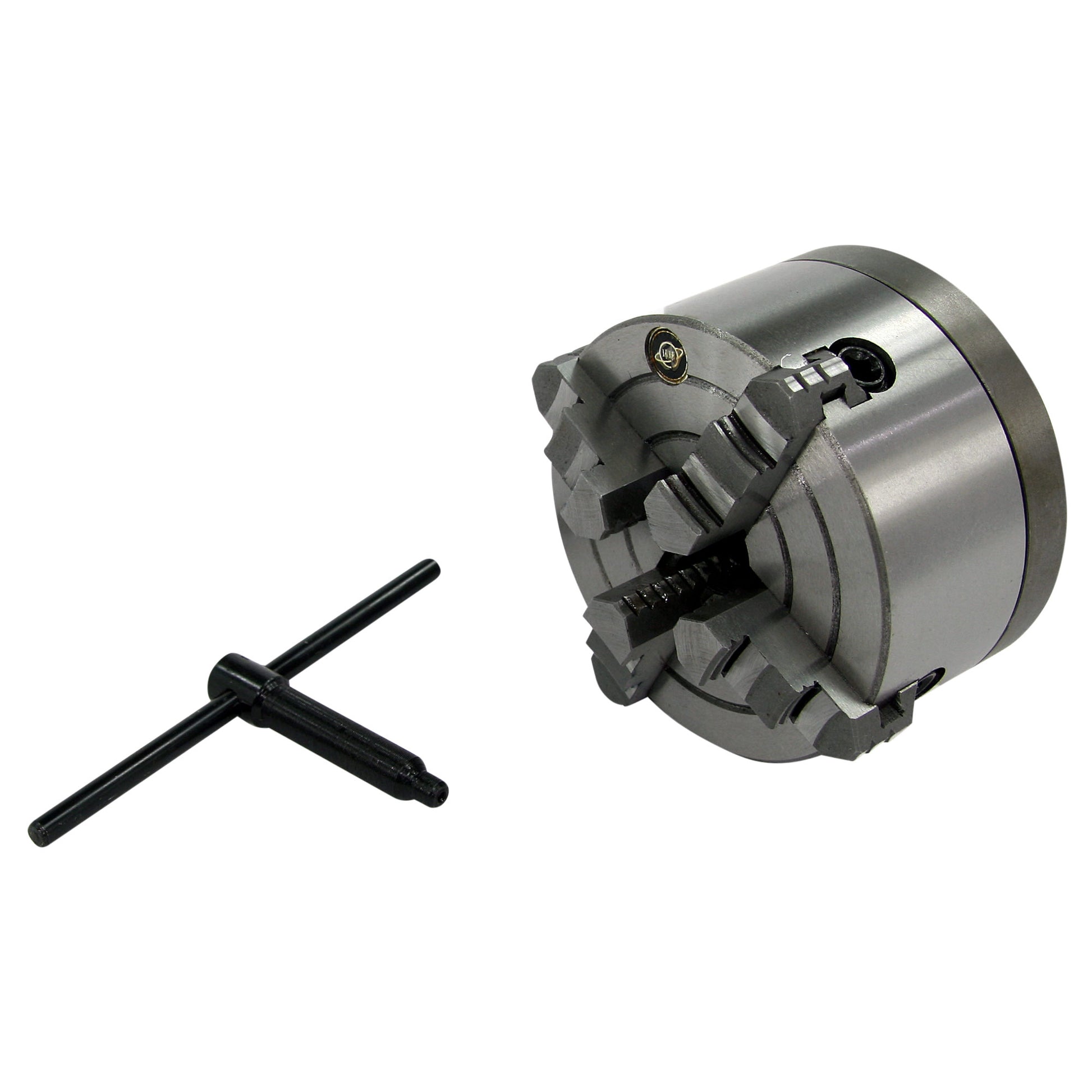

Lathe Chuck - 5", 4-Jaw, Independent with Adapter to 3" Spindle
Lathe Chuck - 5", 4-Jaw, Independent with Adapter to 3" Spindle
SKU:2346
Out of stock
Couldn't load pickup availability
Key Features
Key Features
- 4-Jaw Lathe Chuck for Sale
- 5" (125 mm) diameter
- Each jaw is independently adjustable and reversible
- Includes an adapter to mount on a 3" (80 mm) flange
- Plain back mounting
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
5 inch, 4-Jaw independent lathe chuck with adapter for the mini lathe.
Each jaw is independently adjustable and reversible.
The through bore of this chuck is 30 mm (1.18").
The chuck can hold work up to 125 mm (4.92") in diameter.
This mini lathe chuck comes with an adapter for the mini lathe so that you can bolt it on in place of a 3" (80 mm) chuck.
Chris's Tips
Here is a chart that provides lathe chuck capacities and mounting dimensions.
Specifications
Rated Capacity, Inside Jaws: 0.276" - 2.244" (7 mm - 57 mm)
Rated Capacity, Outside Jaws: 1.890" - 4.921" (48 mm - 125 mm)
Diameter, Overall: 4.921" (125 mm)
Registration Recess Diameter: 3.740" (95 mm)
Registration Recess Depth: 0.177" (4.5 mm)
Bolt Circle Diameter: 4.252" (108 mm)
Center Hole Diameter: 1.181" (30 mm)
Height: 2.205" (56 mm)
Jaw Height Above Face: 0.827" (21 mm)
Height with Jaws: 2.638" (67 mm)
Number and Size of Bolts: 4 M8
Chuck Key: 0.274" (6.95 mm)
Chuck Designation: K72-125
Product Instructions
