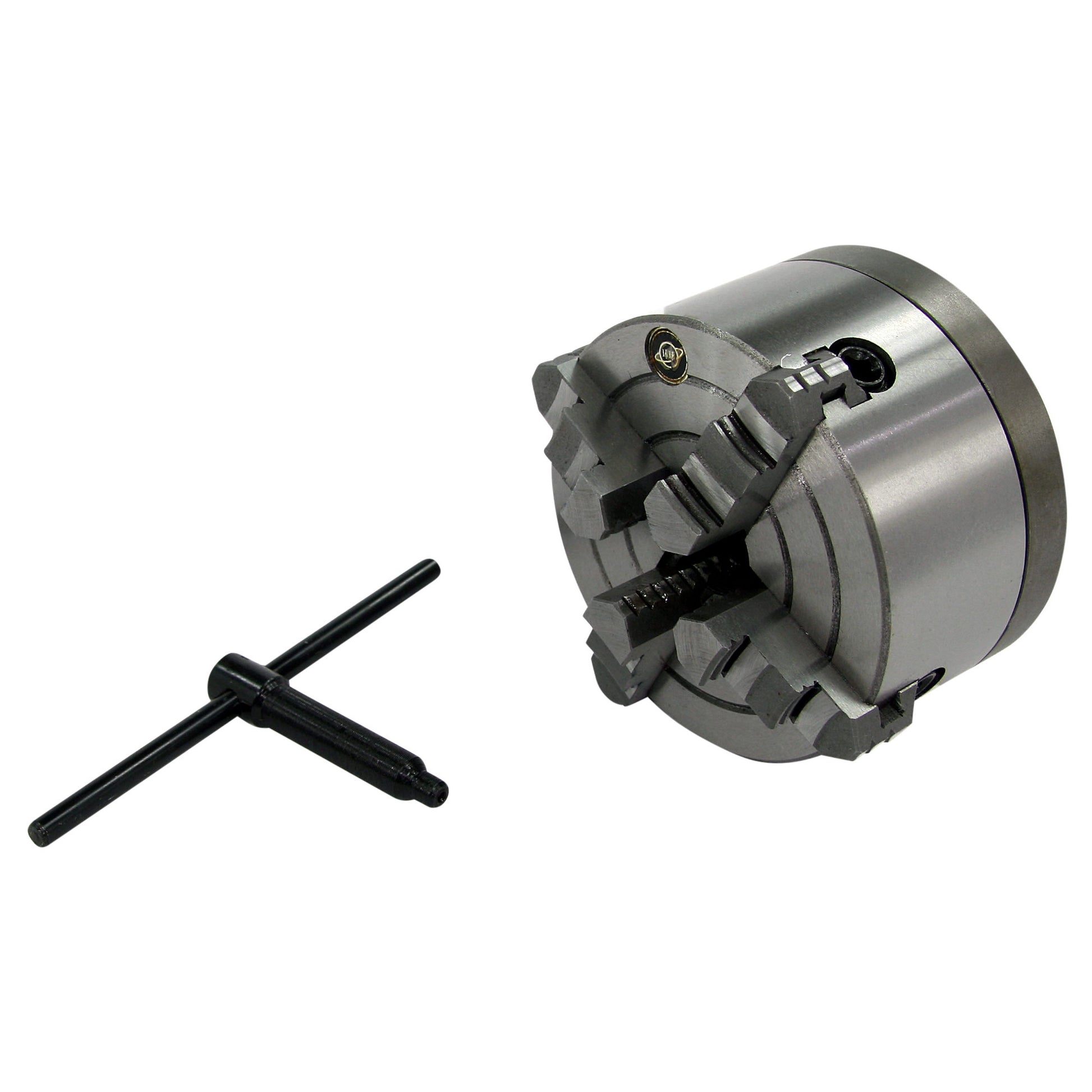

Lathe Chuck - 5", 4-Jaw, Independent with Adapter to 4" Spindle

Lathe Chuck - 5", 4-Jaw, Independent with Adapter to 4" Spindle

6559

$179.95 USD
$179.95 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Key Features

  • 4-Jaw Lathe Chuck for Sale
  • 5" (125 mm) diameter
  • Each jaw is independently adjustable and reversible
  • Includes an adapter to mount on a 4" 100 mm) flange
  • Plain back mounting

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

5 inch, 4-Jaw independent lathe chuck with adapter for the mini lathe.
Each jaw is independently adjustable and reversible.
The through bore of this chuck is 30 mm (1.18").
This 5 inch chuck can hold work up to 125 mm (4.92") in diameter and comes with an adapter for the HiTorque mini lathe spindle as well as other lathes with a 4" (100mm) spindle flange.

Chris's Tips

Here is a chart that provides lathe chuck capacities and mounting dimensions.

Specifications

Rated Capacity, Inside Jaws: 0.276" - 2.244" (7 mm - 57 mm)

Rated Capacity, Outside Jaws: 1.890" - 4.921" (48 mm - 125 mm)

Diameter, Overall: 4.921" (125 mm)

Registration Recess Diameter: 3.740" (95 mm)

Registration Recess Depth: 0.177" (4.5 mm)

Bolt Circle Diameter: 4.252" (108 mm)

Center Hole Diameter: 1.181" (30 mm)

Height: 2.205" (56 mm)

Jaw Height Above Face: 0.827" (21 mm)

Height with Jaws: 2.638" (67 mm)

Number and Size of Bolts: 4 M8

Chuck Key: 0.274" (6.95 mm)

Chuck Designation: K72-125
