Lathe Chuck - 6", 3-Jaw

Lathe Chuck - 6", 3-Jaw

2028

$189.95 USD
$189.95 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Key Features

  • 3-jaw self centering lathe chuck
  • 6" (160 mm) diameter
  • Includes chuck key, inside and outside jaws
  • Plain back mounting
  • High quality steel, hardened and ground

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

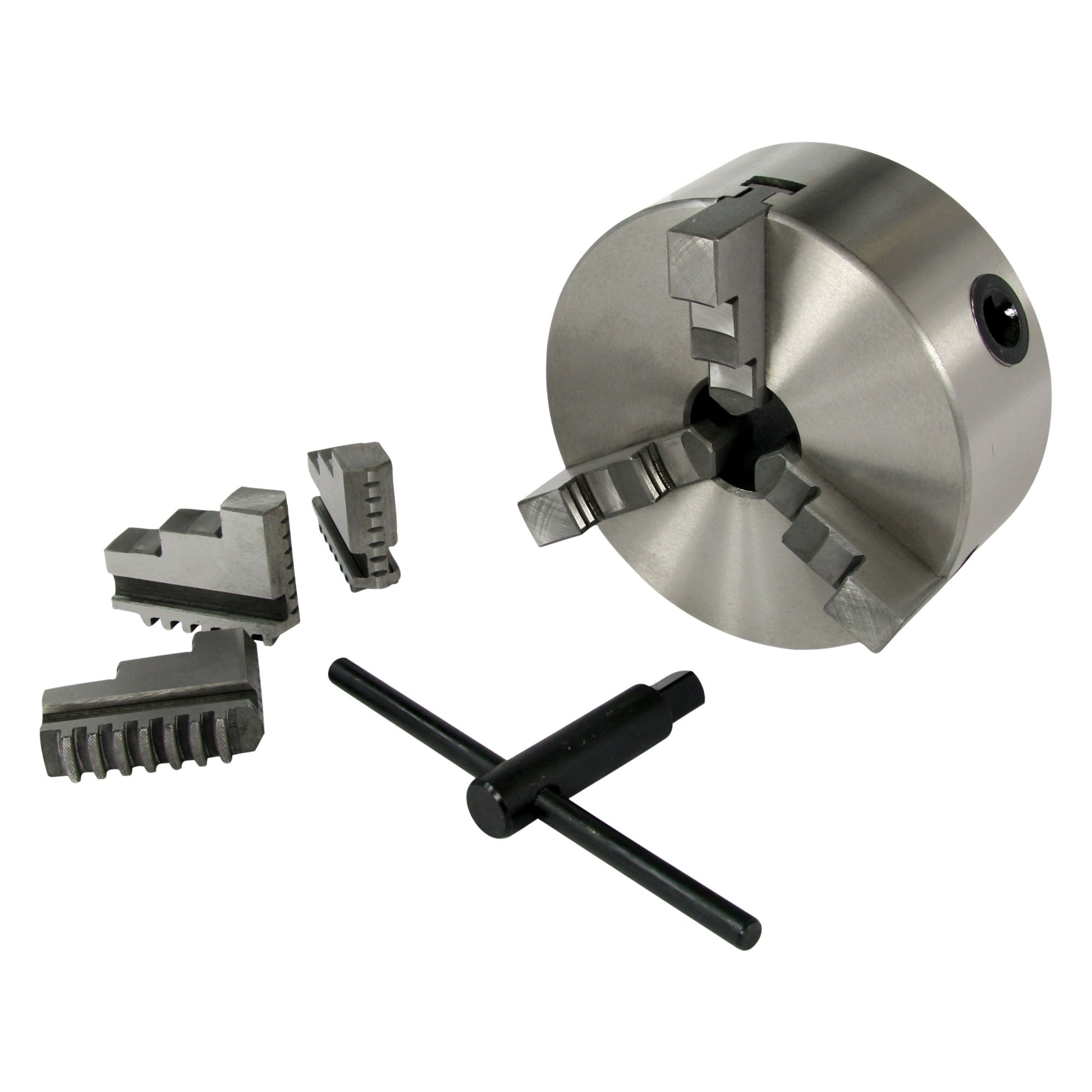

This 6 inch 3-Jaw self-centering lathe chuck includes a chuck key, inside and outside jaws, and mounting bolts.

This chuck has a 1.57" (40 mm) through hole. The chuck can hold work up to 5.70" (145 mm) in diameter.

This is a plain back chuck and requires a backplate adapter to mount it.

The radial runout of a test bar held in this chuck, when the chuck is mounted true, is 0.003" maximum.

Chris's Tips

Mount this chuck on a mini lathe with one of our chuck adapters. Or purchase a chuck with an adapter already mounted.

Here is a chart that provides Lathe chuck capacities and mounting dimensions.

Specifications

Rated Capacity, Inside Jaws: 0.118" - 2.165" (3 mm - 55 mm)

Rated Capacity, Jamming Range: 1.969" - 6.299" (50 mm - 160 mm)

Rated Capacity, Outside Jaws: 2.165" - 5.709" (55 mm - 145 mm)

Runout (Max): ≤ 0.003" (0.081mm)

Diameter, Overall: 6.299" (160 mm)

Registration Recess Diameter: 5.118" (130 mm)

Registration Recess Depth: 0.197" (5 mm)

Bolt Circle Diameter: 5.591" (142 mm)

Center Hole Diameter: 1.575" (40 mm)

Height: 2.559" (65 mm)

Jaw Height Above Face: 1.181" (30 mm)

Height with Jaws: 3.740" (95 mm)

Number and Size of Bolts: 3 M8

Chuck Key: 0.374" (9.5 mm)

Max RPM: 3600 RPM

Chuck Designation: K11-160
