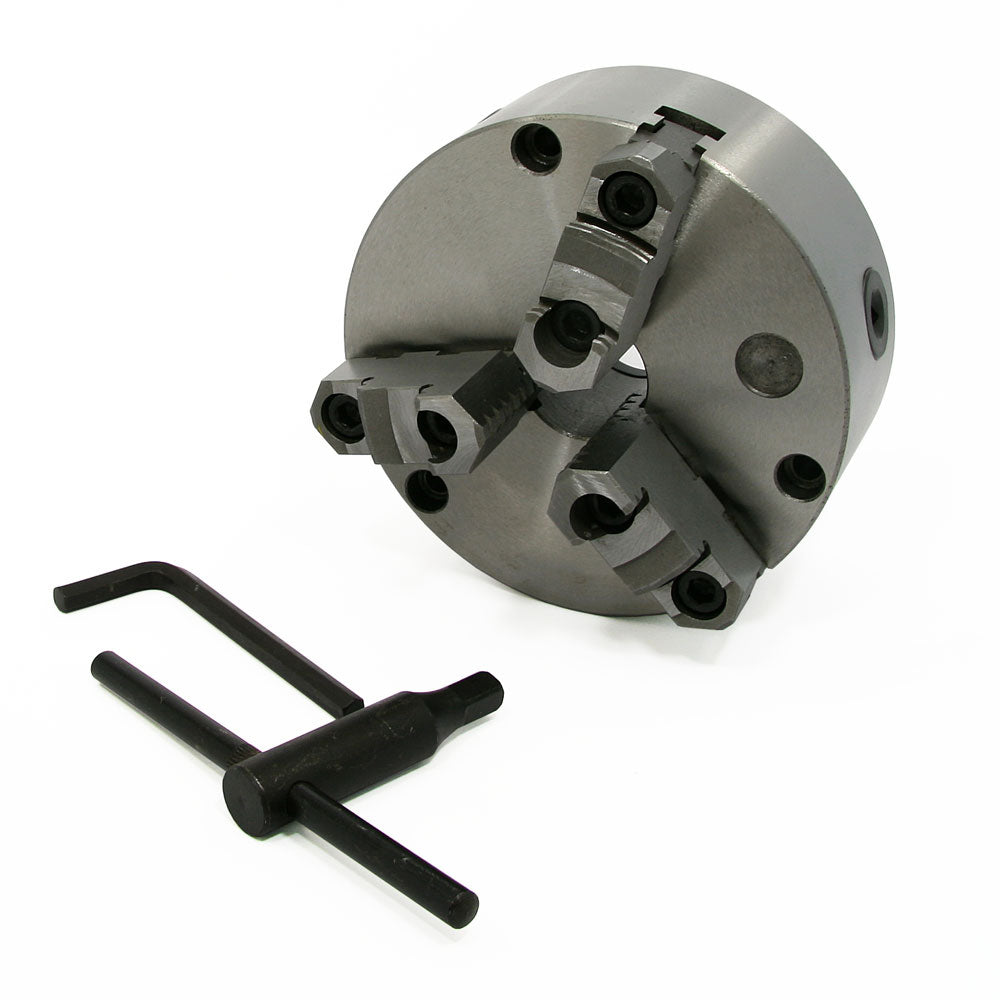

Lathe Chuck - 6", 3-Jaw, Front Mount Reversible Jaws
Lathe Chuck - 6", 3-Jaw, Front Mount Reversible Jaws
SKU:4985
Low stock
Couldn't load pickup availability
Key Features
Key Features
- 3-jaw self centering lathe chuck
- 6" (160 mm) diameter
- Includes chuck key and reversible top jaws
- Plain back mounting with bolts thru from the front
- High quality steel, hardened and ground
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
This 6 inch 3-Jaw self-centering lathe chuck includes a chuck key, reversible top jaws, and mounting bolts.
This chuck has a 1.57" (40 mm) through hole. The chuck can hold work up to 5.70" (145 mm) in diameter.
This is a plain back chuck and requires a backplate adapter to mount it. Front mount chucks are designed to be used with rotary tables and other devices where back mounting chucks cannot be used.
The radial runout of a test bar held in this chuck, when the chuck is mounted true, is 0.004" maximum.
Specifications
Rated Capacity, Inside Jaws: 0.118" - 2.165" (3 mm - 55 mm)
Rated Capacity, Jamming Range: 1.969" - 6.299" (50 mm - 160 mm)
Rated Capacity, Outside Jaws: 2.165" - 5.709" (55 mm - 145 mm)
Runout (Max): ≤ 0.003" (0.081mm)
Diameter, Overall: 6.299" (160 mm)
Registration Recess Diameter: 5.118" (130 mm)
Registration Recess Depth: 0.197" (5 mm)
Bolt Circle Diameter: 5.591" (142 mm)
Center Hole Diameter: 1.772" (45 mm)
Height: 2.559" (65 mm)
Jaw Height Above Face: 1.181" (30 mm)
Height with Jaws: 3.740" (95 mm)
Number and Size of Bolts: 3 M8
Chuck Key: 0.374" (9.5 mm)
Max RPM: 3600 RPM
Chuck Designation: K11-160
