Lathe Chuck - 6", 4-Jaw, Independent

Lathe Chuck - 6", 4-Jaw, Independent

2038

$199.95 USD
$199.95 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Key Features

  • 4-jaw lathe chuck
  • 6" (160 mm) diameter
  • Each jaw is independently adjustable and reversible
  • Plain back mounting, 4-hole mounting pattern
  • High quality steel, hardened and ground

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

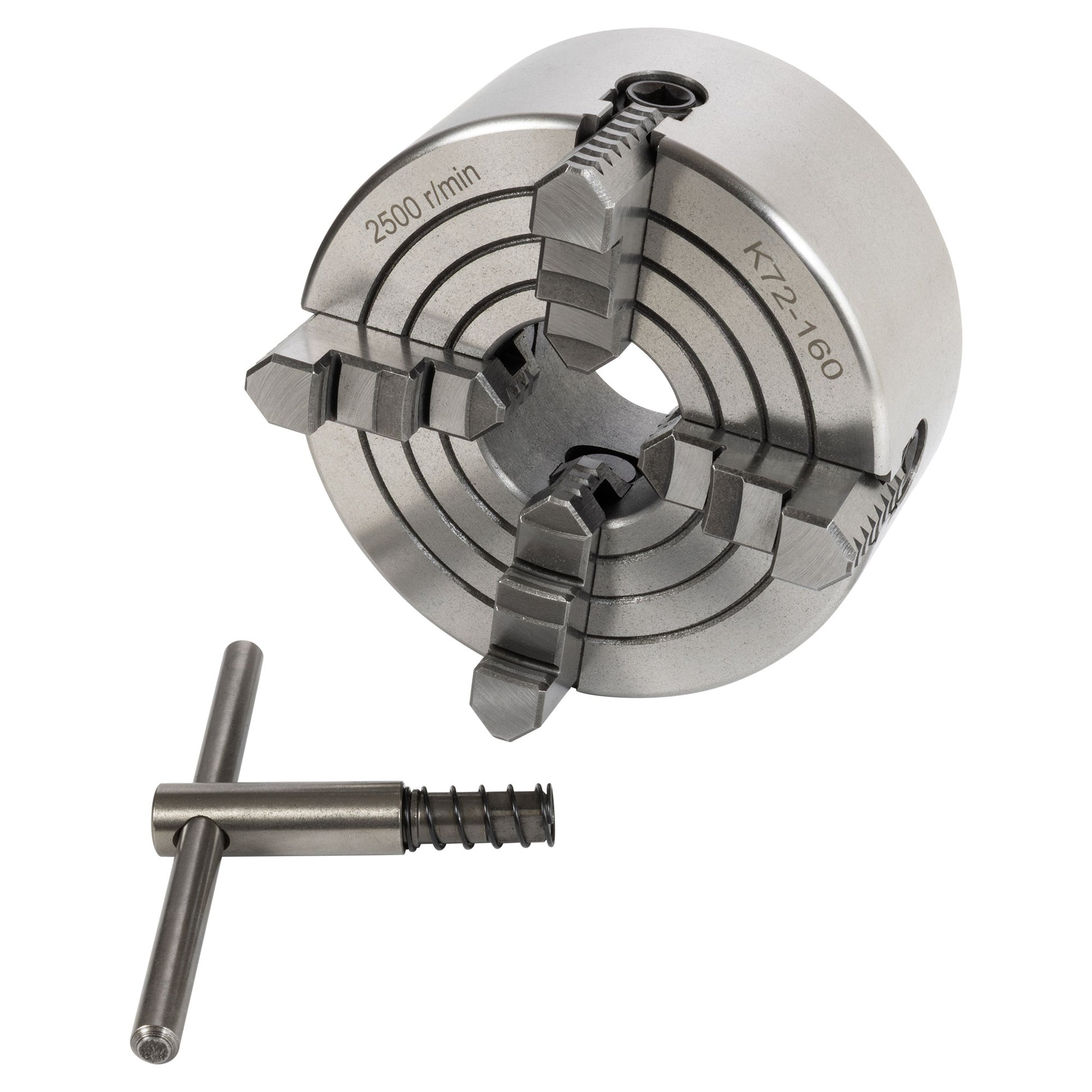

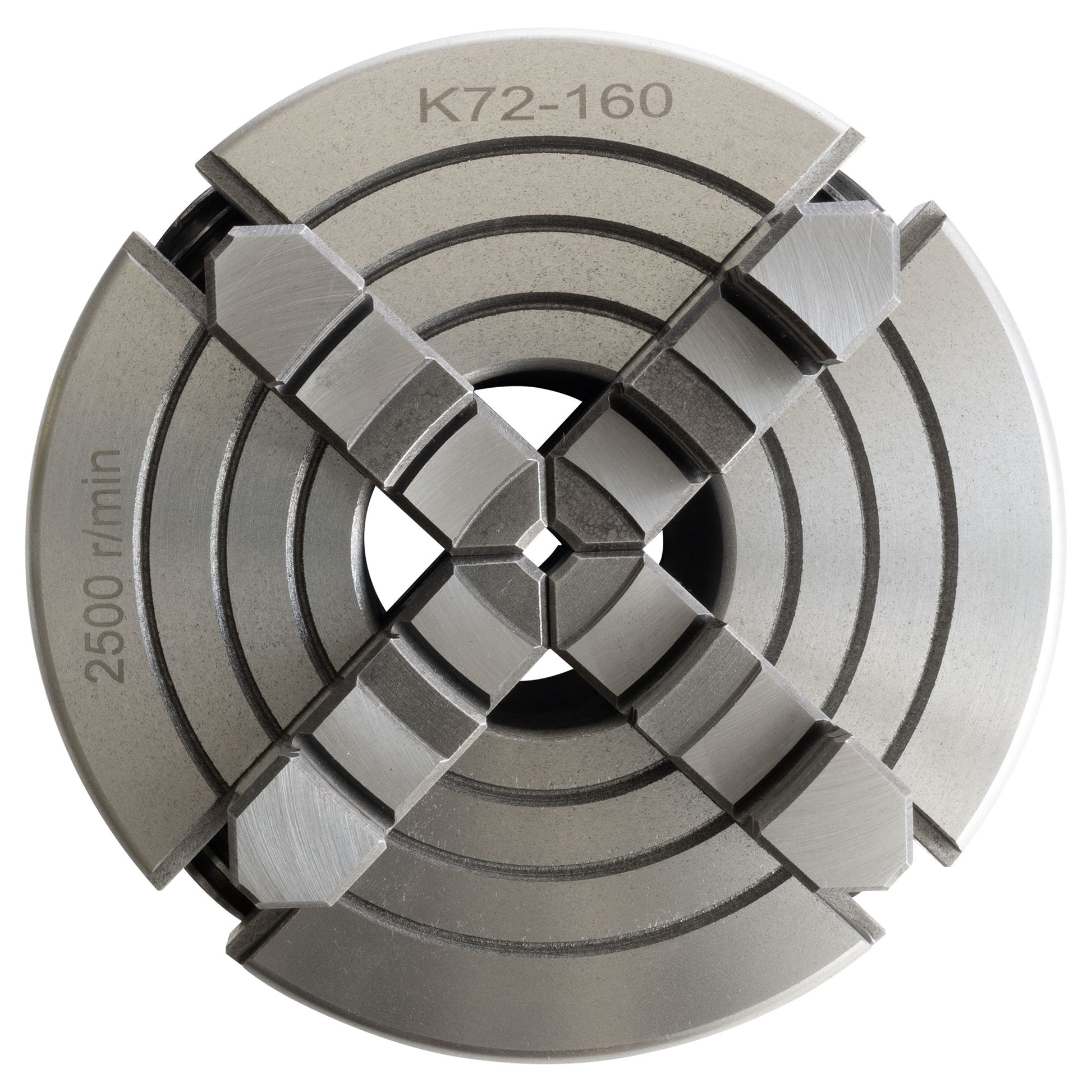

6 inch, 4-Jaw independent lathe chuck.

Each jaw is independently adjustable and reversible.

This chuck has a 1.77" (45.0 mm) through hole. The chuck can hold work up to 6.30" (160 mm) in diameter.

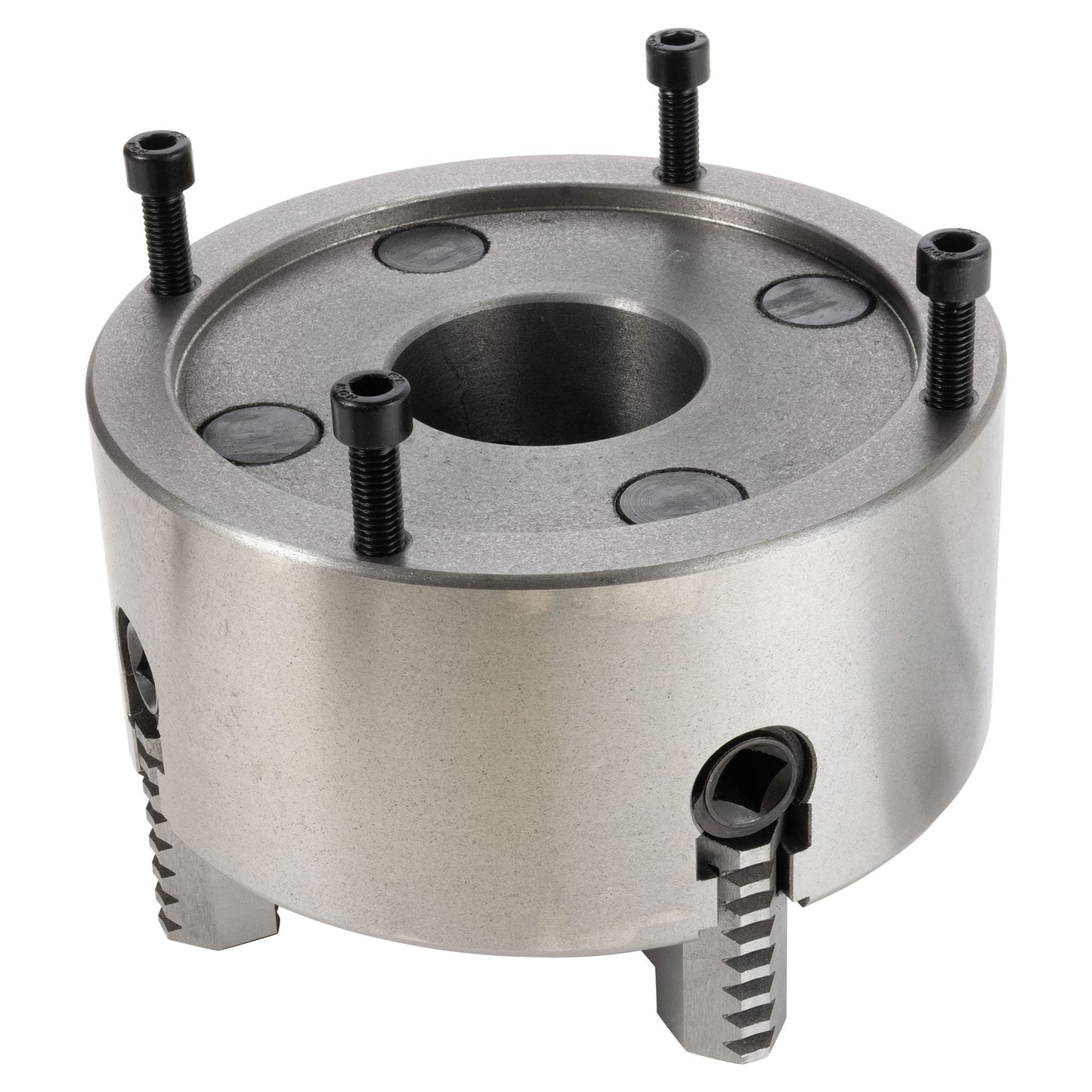

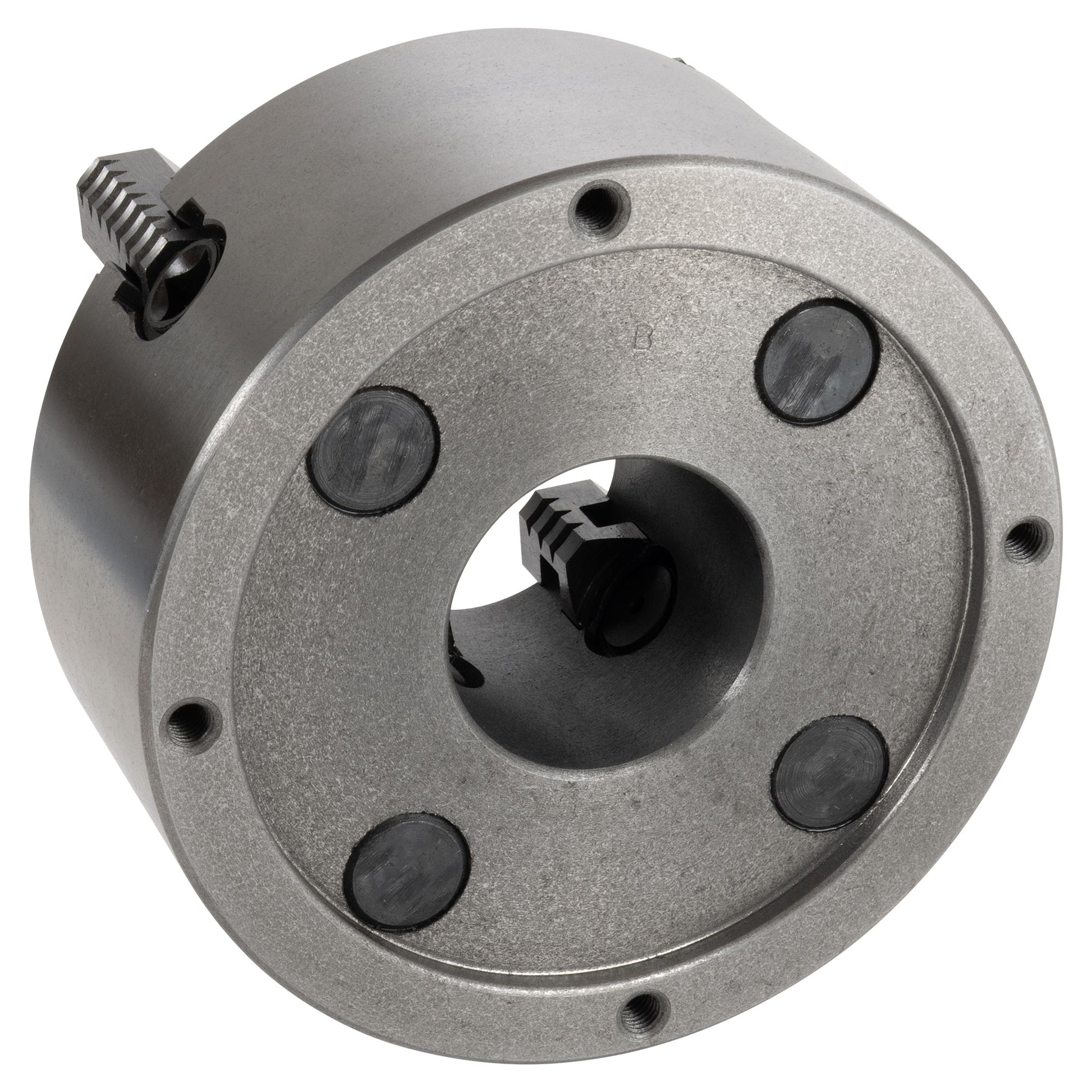

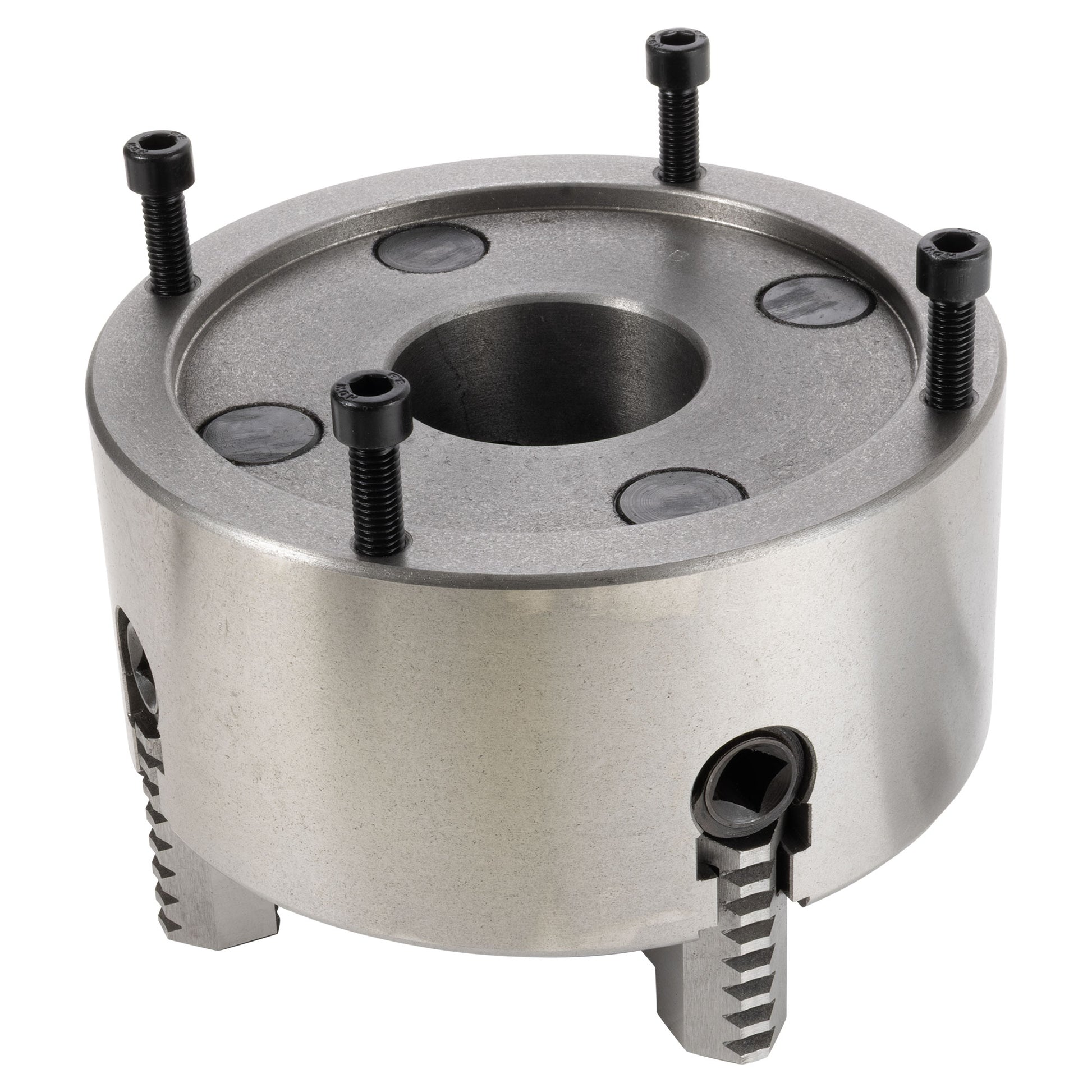

This is a plain back chuck and requires a backplate adapter to mount it.

Chris's Tips

Mount this chuck on a mini lathe with one of our chuck adapters. Or purchase a chuck with an adapter already mounted.

Here is a chart that provides Lathe chuck capacities and mounting dimensions.

Specifications

Rated Capacity, Inside Jaws: 0.315" - 3.150" (8 mm - 80 mm)

Rated Capacity, Outside Jaws: 1.969" - 6.299" (50 mm - 160 mm)

Diameter, Overall: 6.299" (160 mm)

Registration Recess Diameter: 5.118" (130 mm)

Registration Recess Depth: 0.197" (5 mm)

Bolt Circle Diameter: 5.709" (145 mm)

Center Hole Diameter: 2.165" (55 mm)

Height: 2.953" (75 mm)

Number and Size of Bolts: 4 M8

Max RPM: 3800 RPM

Chuck Designation: K72-160
