Lathe Chuck - 6", 4-Jaw, Independent, Premium, Harlingen
Lathe Chuck - 6", 4-Jaw, Independent, Premium, Harlingen
Low stock
SKU:6547Shelf Location: (E09 - 02)
Couldn't load pickup availability
Key Features
Key Features
- Independent 4-Jaw lathe chuck
- 6" (160 mm) diameter
- Radial runout maximum of ≤ 0.002" (0.05 mm)
- High quality components for enhanced wear-resistance

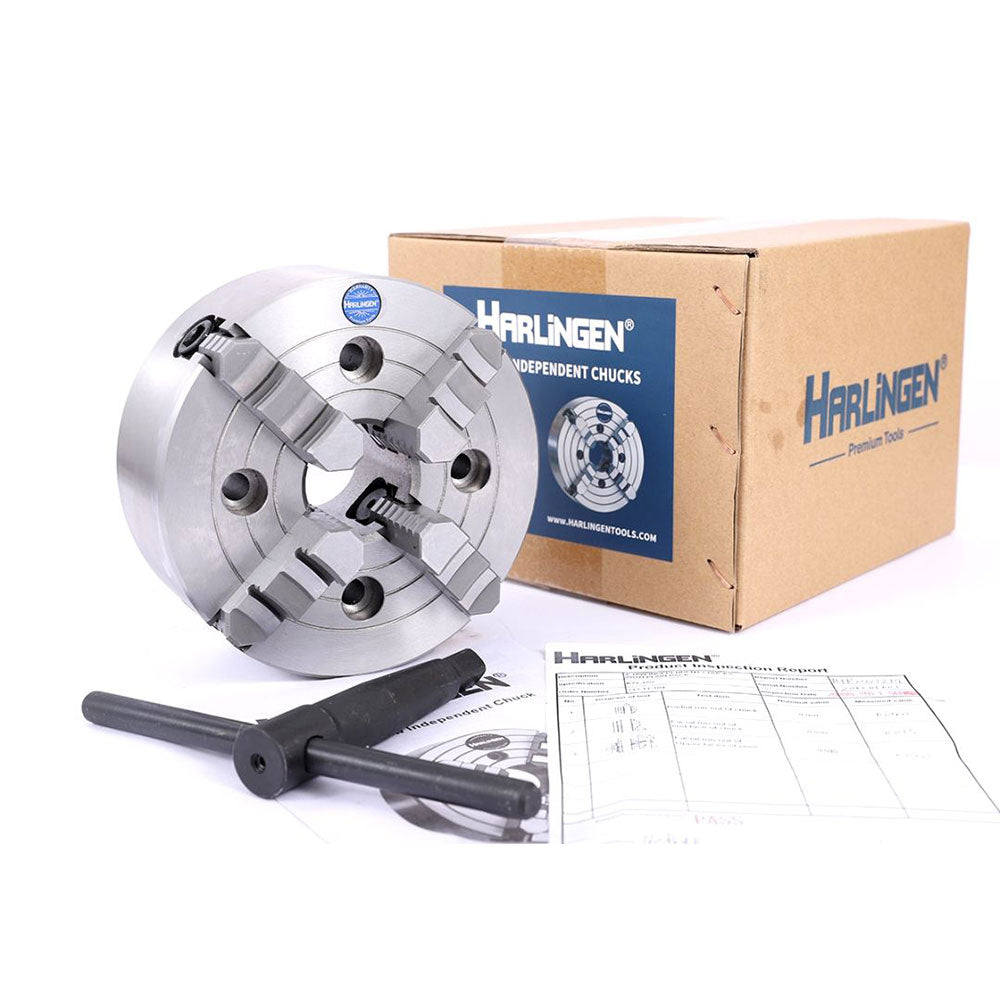

- Includes chuck key, reversible jaws and mounting screws
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

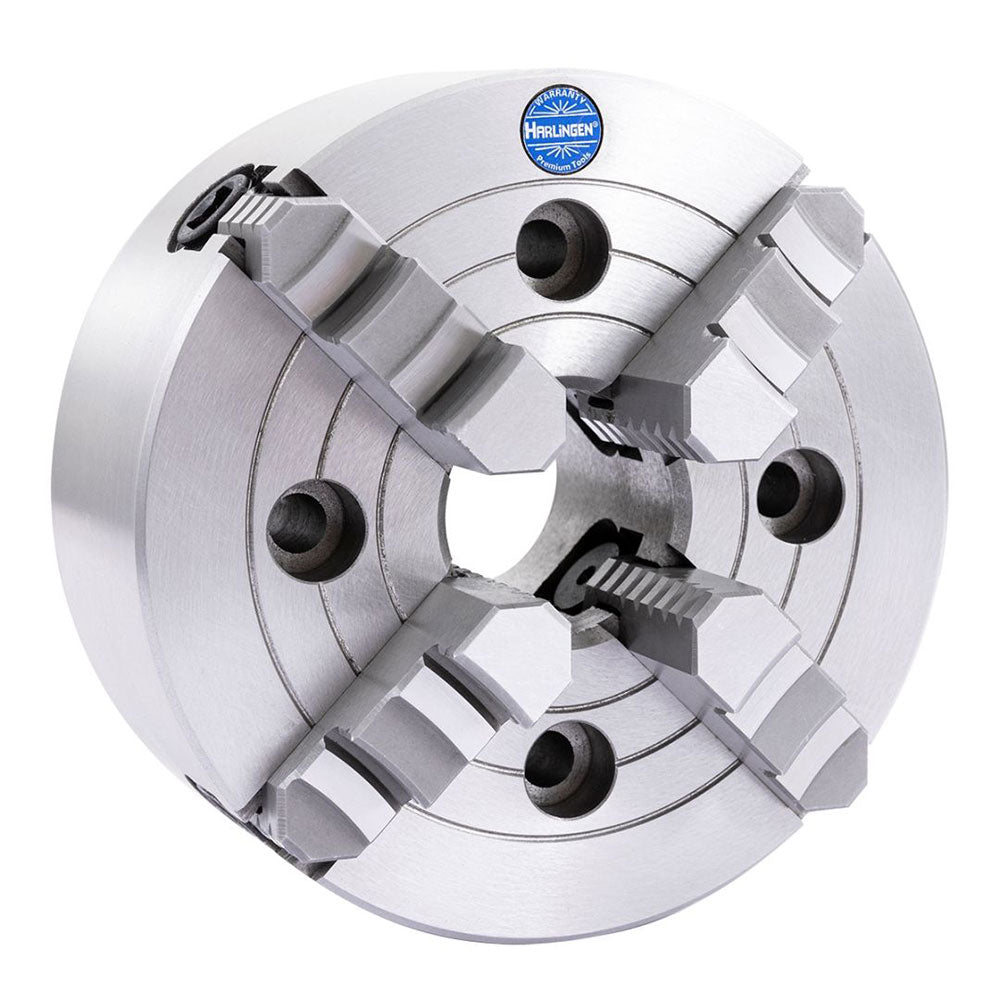

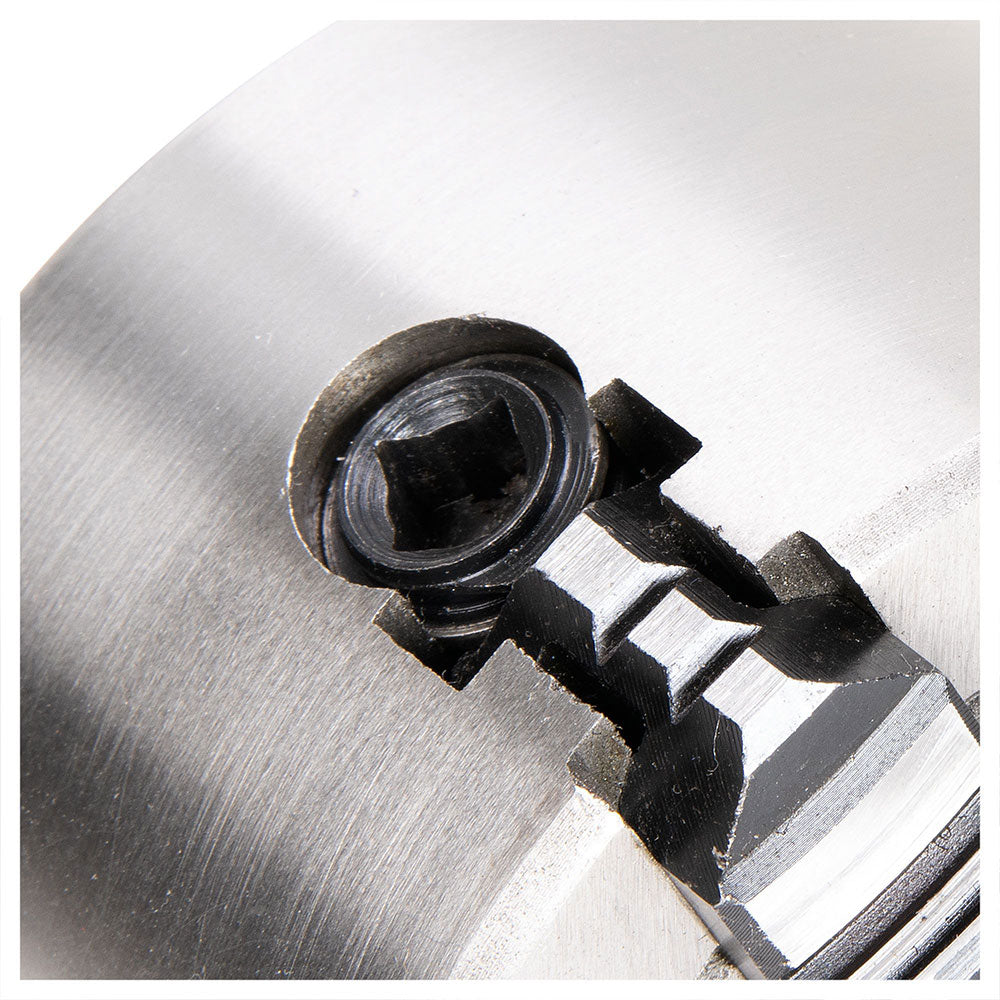

Harlingen 6" 4-Jaw independent Lathe Chuck Front Mount. The Harlingen chucks have similar specifications to our other lathe chucks in terms of clamping range however they have a better performance characteristics and the material construction of the chuck is better.

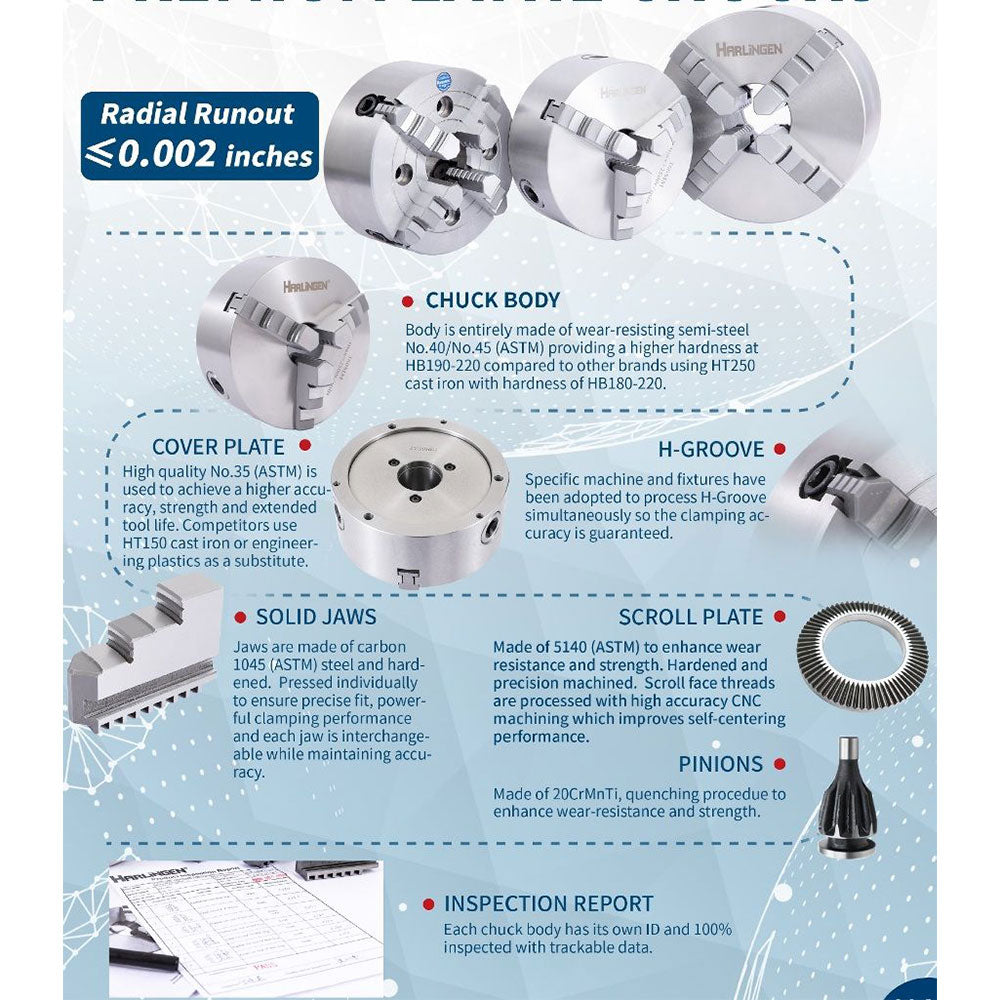

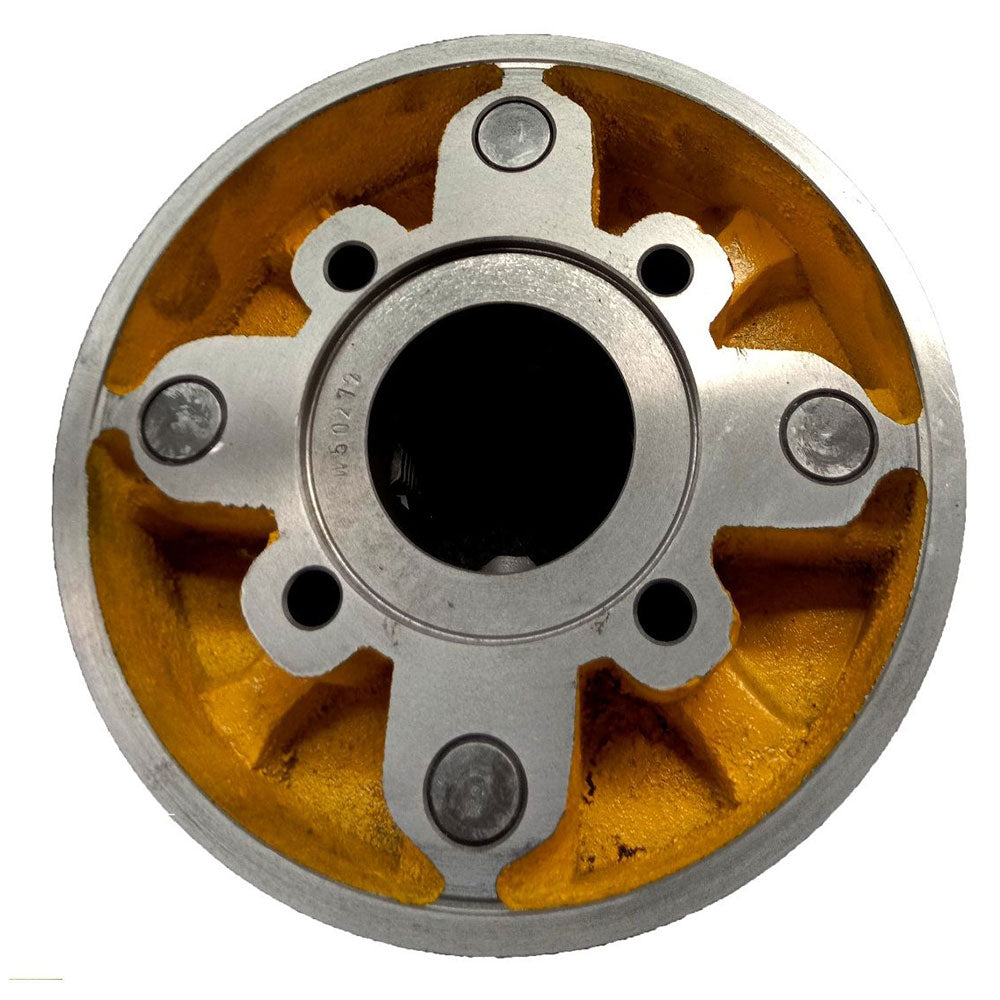

The body is entirely made of wear-resistant semi-steel No.40/No.45 (ASTM) providing a higher hardness at HB190-220 compared to other brands using HT250 cast iron with hardness of HB180-220. High quality No.35 (ASTM) is used to achieve higher accuracy, strength and extended tool life. Competitors use HT150 cast iron or engineering plastics as a substitute.

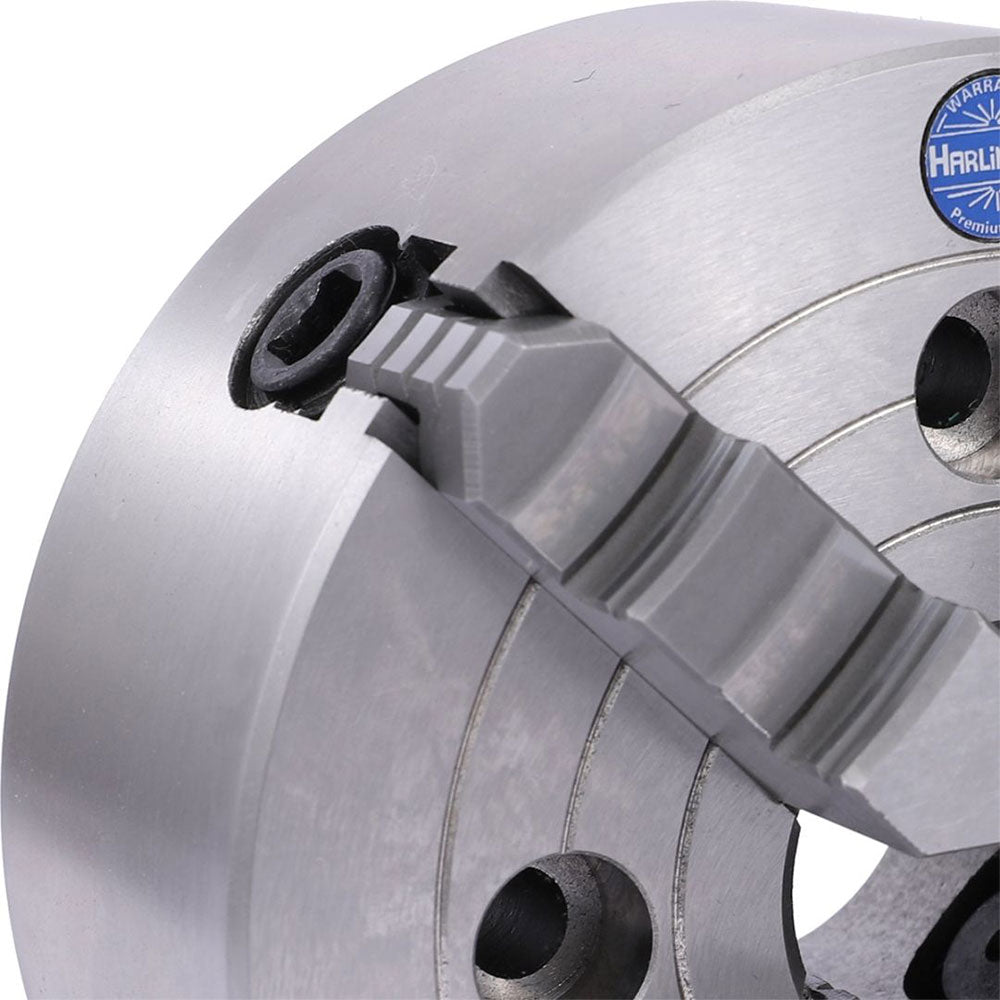

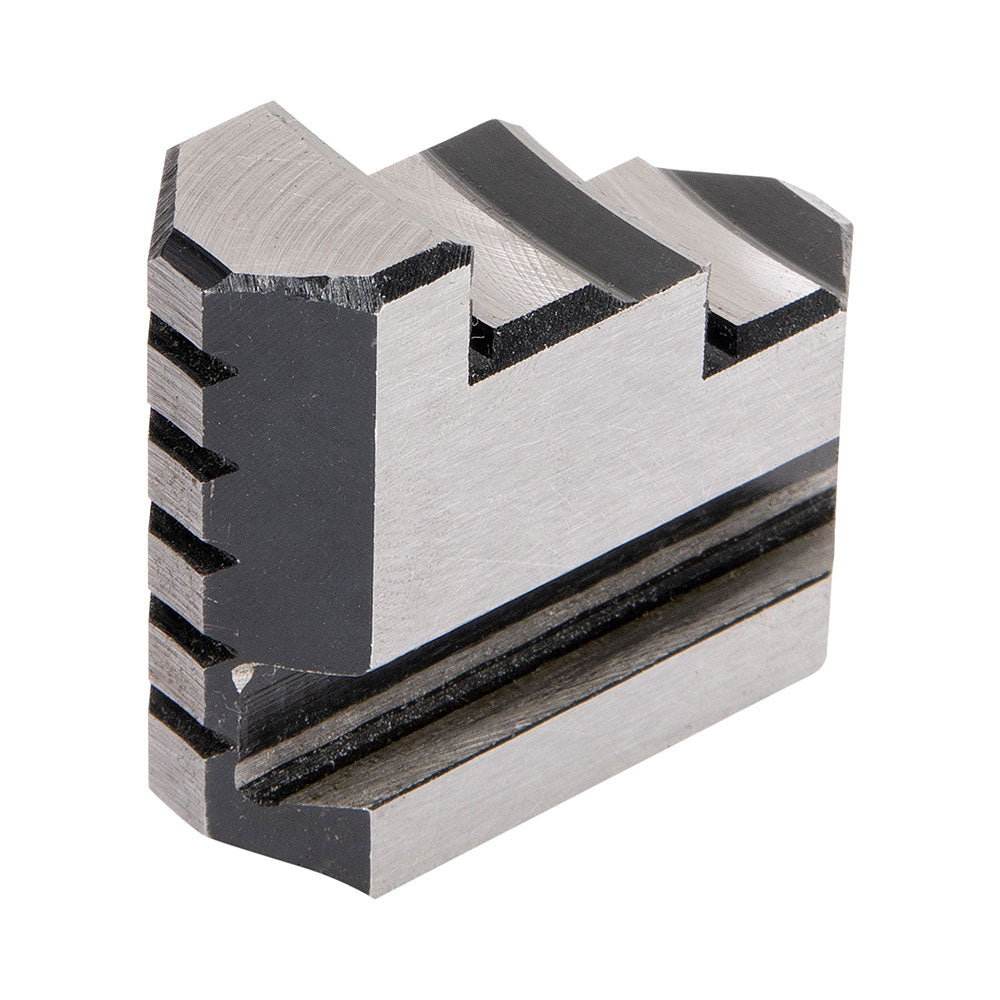

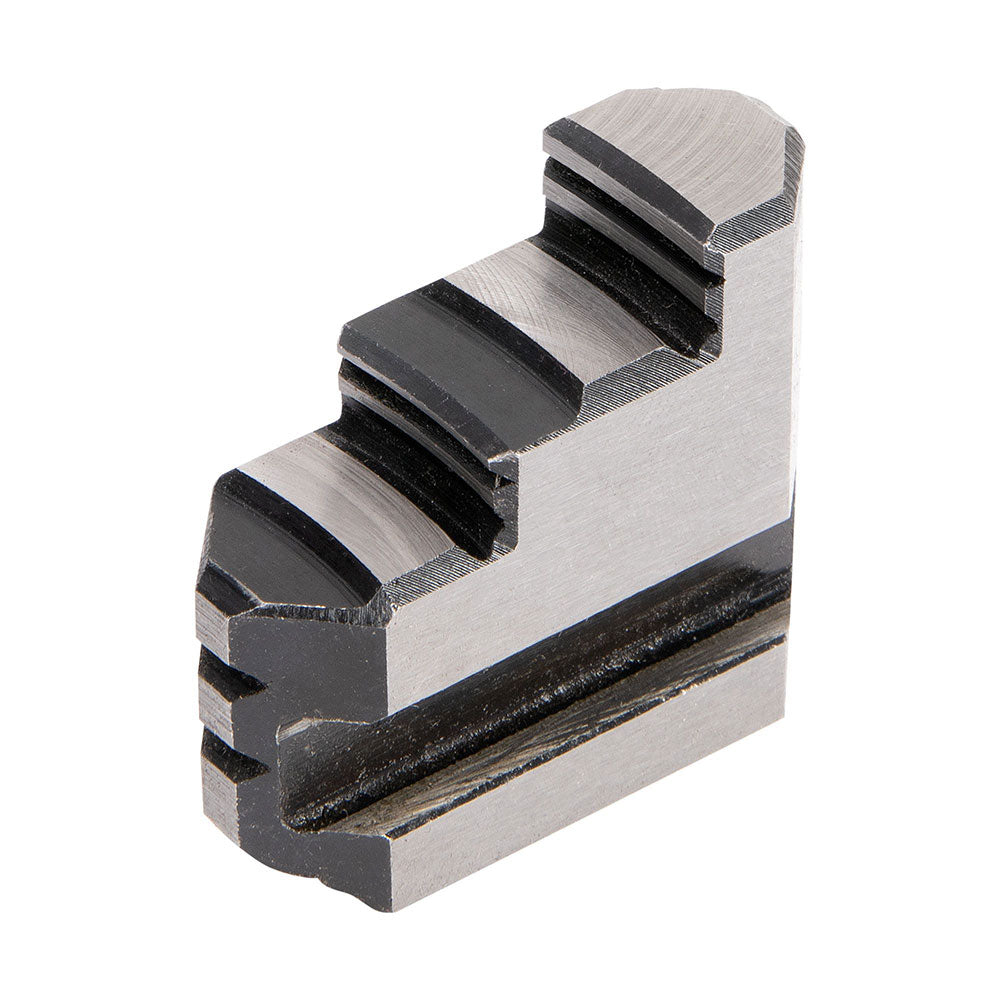

Jaw are made of hardened carbon 1045 (ASTM) steel. The jaws are pressed individually to ensure precise fit, powerful clamping performance and each jaw is interchangeable while maintaining accuracy. Specific machines and fixtures have been adapted to process H-Groove simultaneously so the clamping accuracy is guaranteed.
Each chuck body has its own ID and is 100% inspected with trackable data. Each chuck has in individual serial number and inspection report.

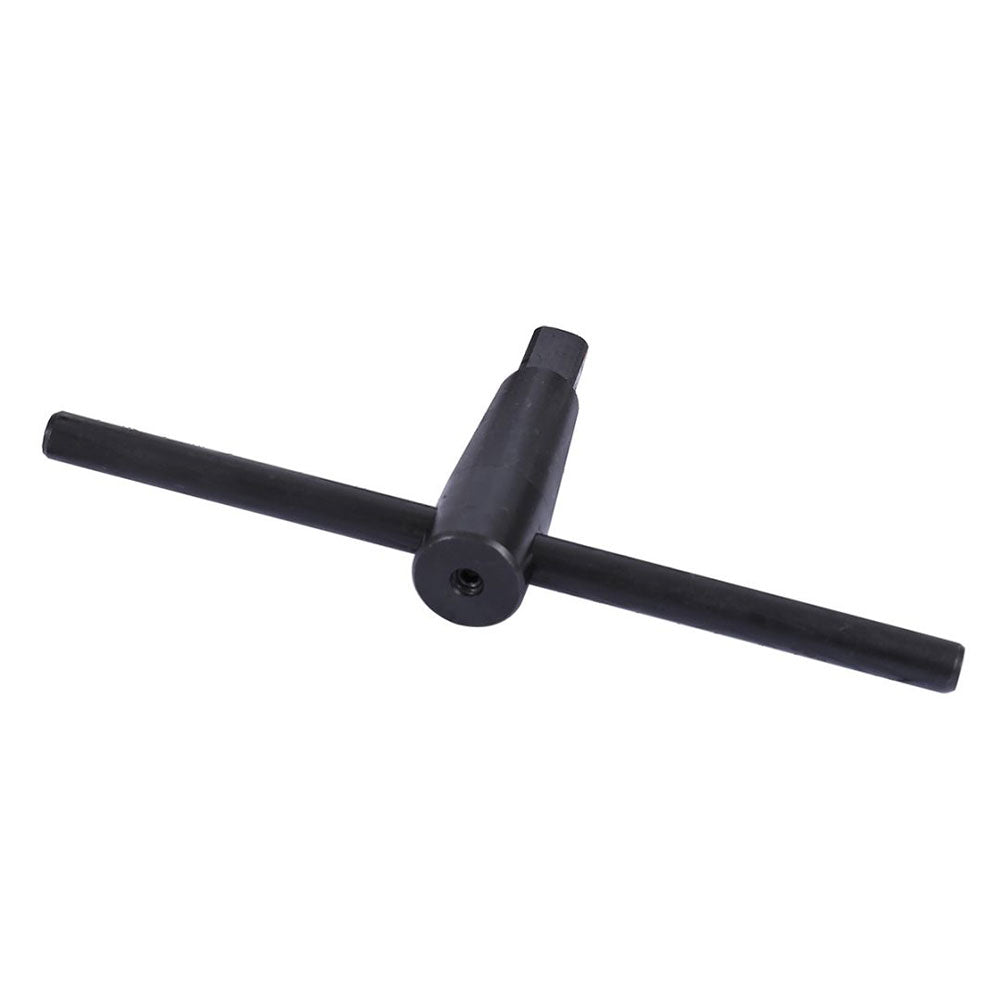

Reversible jaws, lathe chuck wrench & 1 set of mounting screws included.
Mounting will require machining, drilling, and tapping of an adapter plate for your lathe.
Chris' Tips
Mount this chuck on a mini lathe with one of our chuck adapters. Or purchase a chuck with an adapter already mounted.

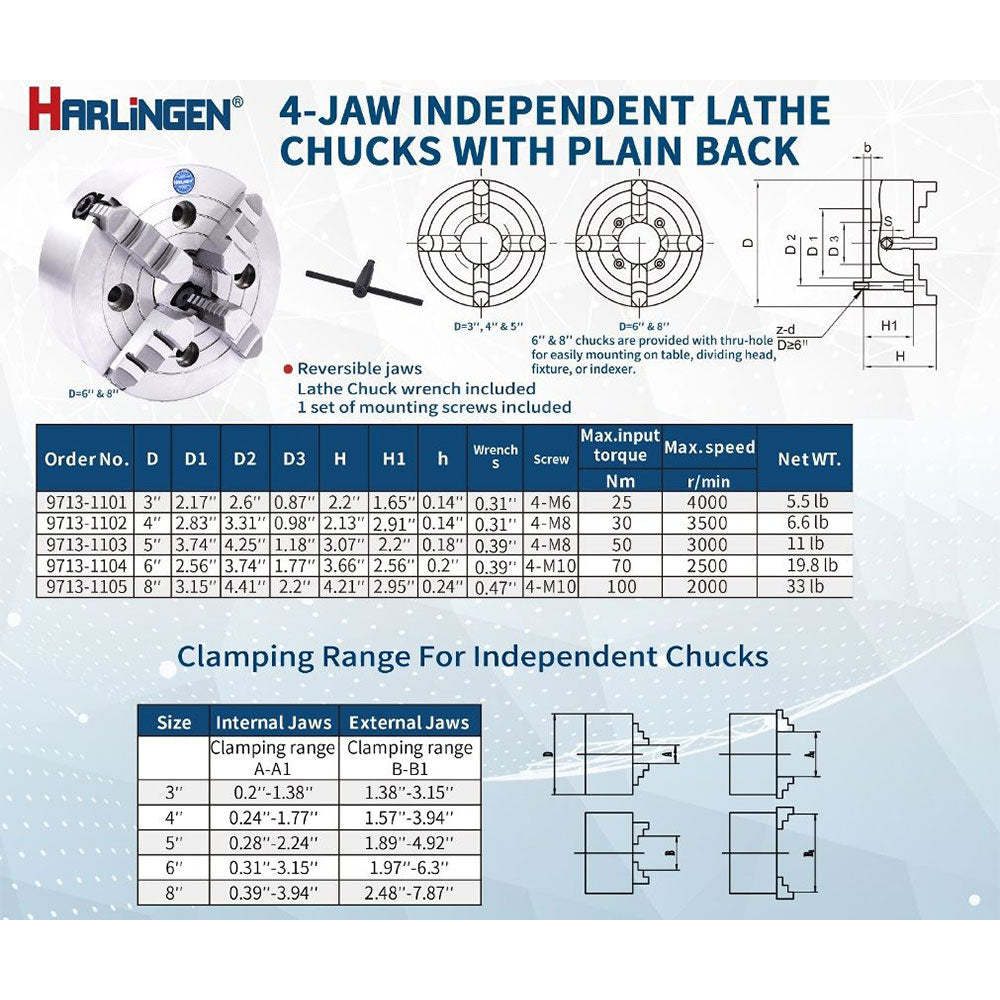

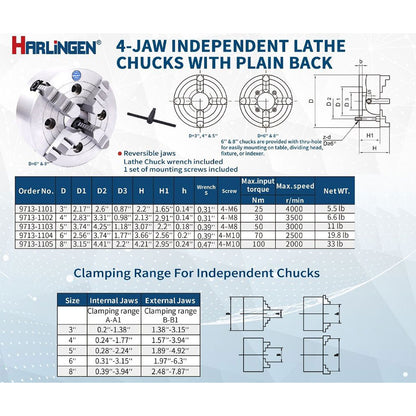

Here is a chart that provides Lathe chuck capacities and mounting dimensions.
Specifications
Rated Capacity, Inside Jaws: 0.311" - 3.150" (7.9 mm - 80 mm)
Rated Capacity, Outside Jaws: 1.969" - 6.299" (50 mm - 160 mm)
Runout (Max): ≤ 0.002" (0.051mm)
Diameter, Overall: 6.299" (160 mm)
Registration Recess Diameter: 2.559" (65 mm)
Registration Recess Depth: 0.197" (5 mm)
Bolt Circle Diameter: 4.252" (108 mm)
Center Hole Diameter: 1.772" (45 mm)
Height: 2.559" (65 mm)
Jaw Height Above Face: 1.102" (28 mm)
Height with Jaws: 3.661" (93 mm)
Number and Size of Bolts: 4 M10
Chuck Key: 0.390" (9.9 mm)
Chuck Designation: K72-160
