Lathe Chuck - 6", 3-Jaw with adaptor for HiTorque 7600/7650
Lathe Chuck - 6", 3-Jaw with adaptor for HiTorque 7600/7650
In stock
SKU:6842Shelf Location: (A11 - 01)
Couldn't load pickup availability
Key Features
Key Features
- 6 Inch, 3-jaw independent lathe chuck
- Adapter plate and mounting bolts
- Fits only the HiTorque 9x20 bench lathes, models 7600/7650
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

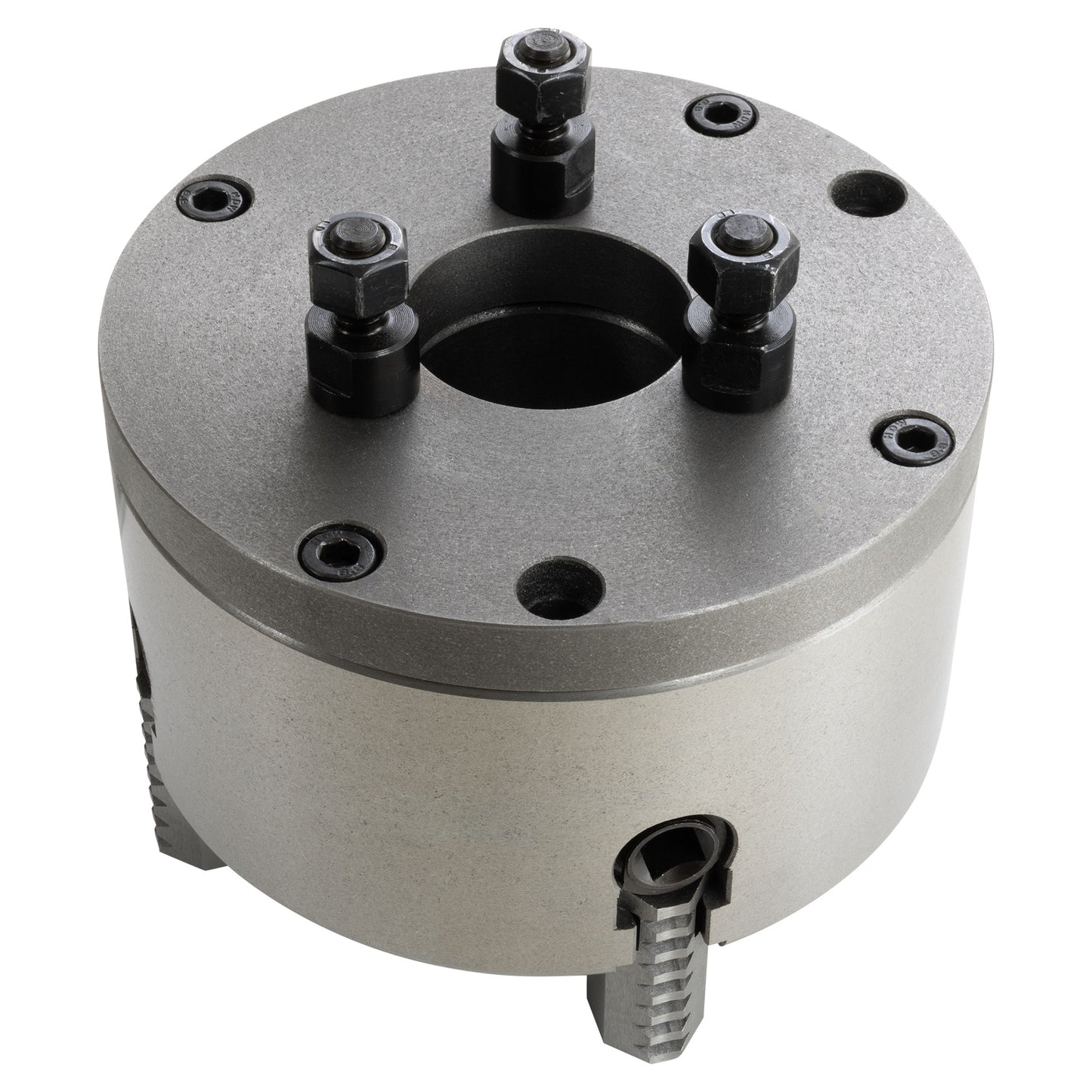

6", 3-jaw lathe chuck (2028) with adapter (4912) designed exclusively for the HiTorque 9x20 bench lathes models 7600 and 7650. Three mounting studs and nuts included.
Chris' Tips
Here is a chart that provides lathe chuck capacities and mounting dimensions.
Specifications
Rated Capacity, Inside Jaws: 0.118" - 2.165" (3 mm - 55 mm)
Rated Capacity, Jamming Range: 1.969" - 6.299" (50 mm - 160 mm)
Rated Capacity, Outside Jaws: 2.165" - 5.709" (55 mm - 145 mm)
Runout (Max): ≤ 0.003" (0.081mm)
Diameter, Overall: 6.299" (160 mm)
Registration Recess Diameter: 5.118" (130 mm)
Registration Recess Depth: 0.197" (5 mm)
Bolt Circle Diameter: 5.591" (142 mm)
Center Hole Diameter: 1.575" (40 mm)
Height: 2.559" (65 mm)
Jaw Height Above Face: 1.181" (30 mm)
Height with Jaws: 3.740" (95 mm)
Number and Size of Bolts: 3 M8
Chuck Key: 0.374" (9.5 mm)
Max RPM: 2500 RPM
Chuck Designation: K11-160
