Live Center, 2MT Standard Multi Point Precision
Live Center, 2MT Standard Multi Point Precision
SKU:4692
In stock
Couldn't load pickup availability
Key Features
Key Features
- 7 live center points
- Precision needle and thrust bearings
- Bull nose and conical tips
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

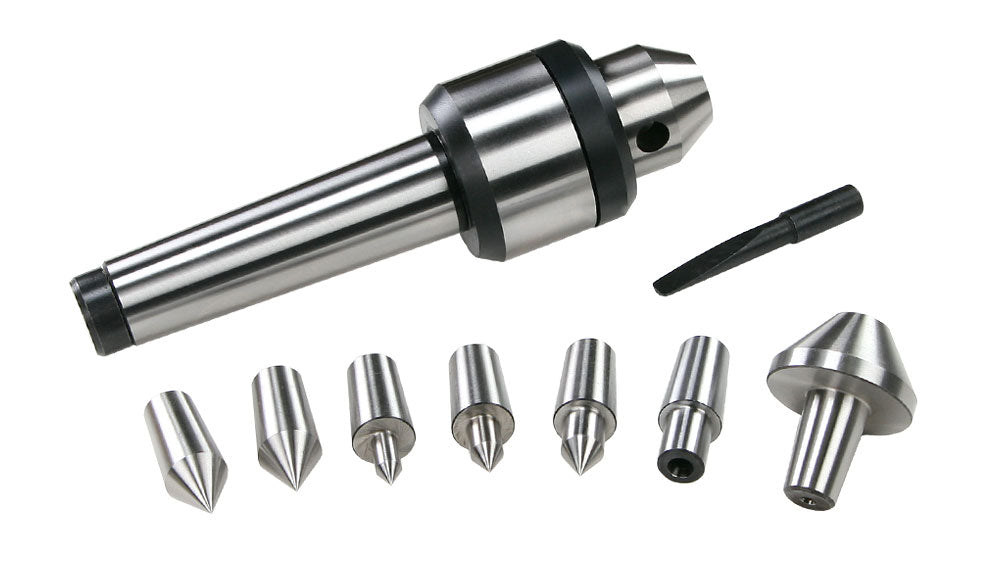

This live center set gives you lots of options to support large and small parts. There are five 60 degree live center tips of four different diameters. There are two of the largest "standard" center.
- The 60 degree centers range in diameter from 0.22 to 0.53" (5.5 to 13.5 mm).
- The 60 degree conical center is for pointed work pieces.
- The "bull nose" center is 1.22" (31 mm) in diameter.
- 1 Pipe Center and 1 Female Center
- There is a tapered pin to pop the tips out of the live center.
Body is constructed from hardened and ground steel. Assembled with three bearings. Eccentricity between .005 - .010 μ. Comes in a fitted case.
