iGaging

Machinist Square Set, 2" 4" and 6", iGaging

Machinist Square Set, 2" 4" and 6", iGaging

5874

$39.95 USD
$39.95 USD
Sale Sold out
Shipping calculated at checkout.

Low stock

Key Features

  • Grade 1 DIN Standard 875
  • Accurate on inside and outside angles
  • All surfaces and edges ground
  • Perfect set-up tool for machining, table saws, and more

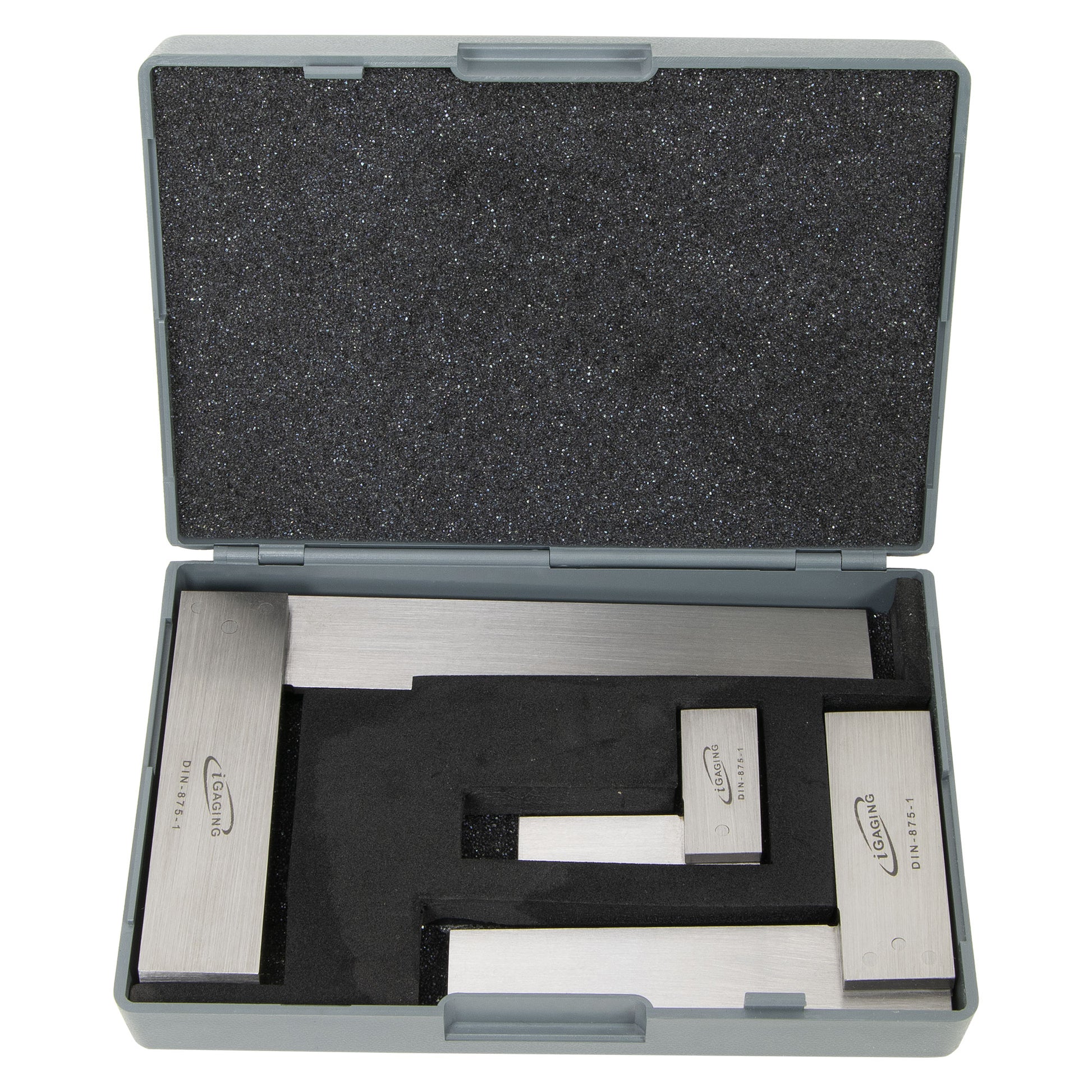

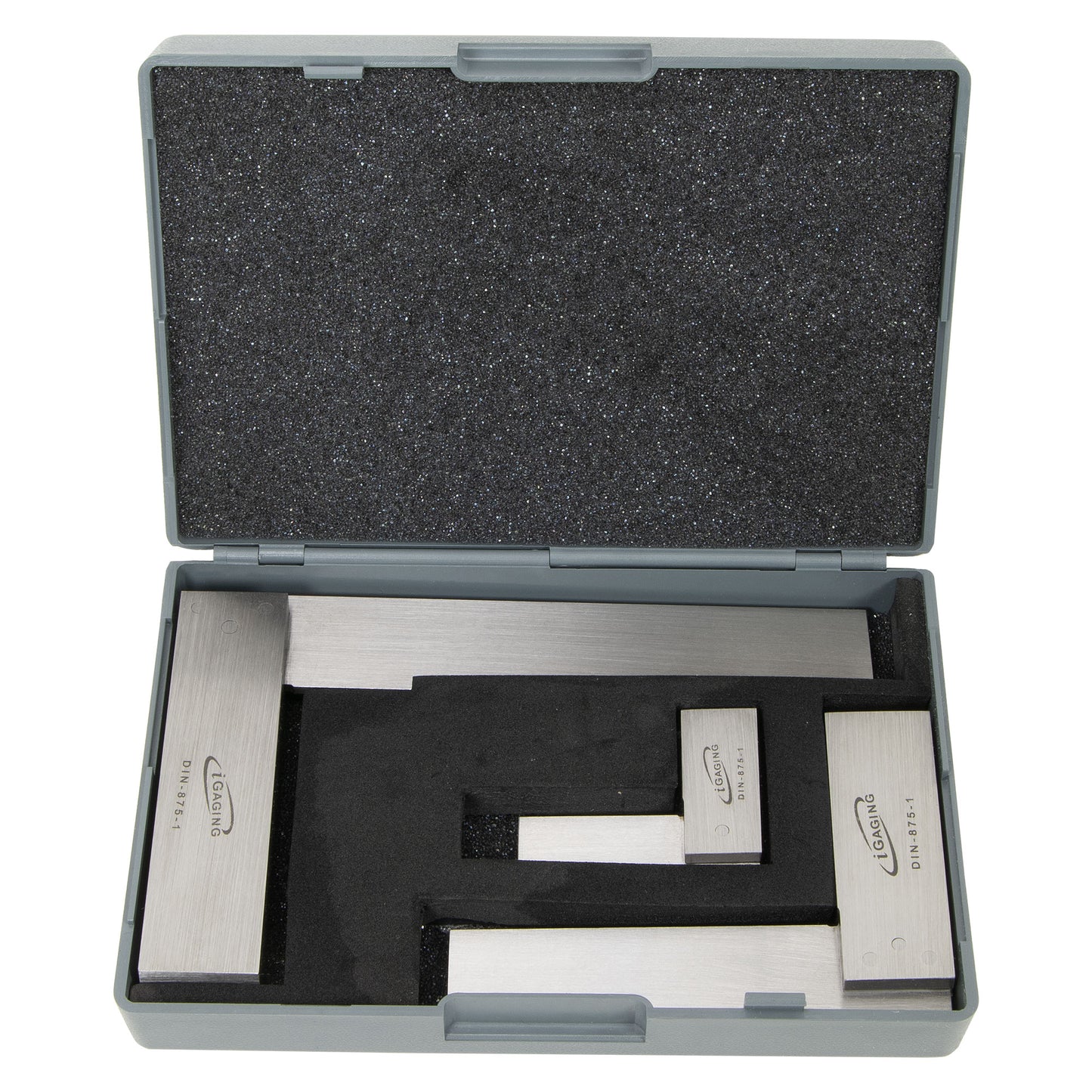

  • Comes in heavy-duty case

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

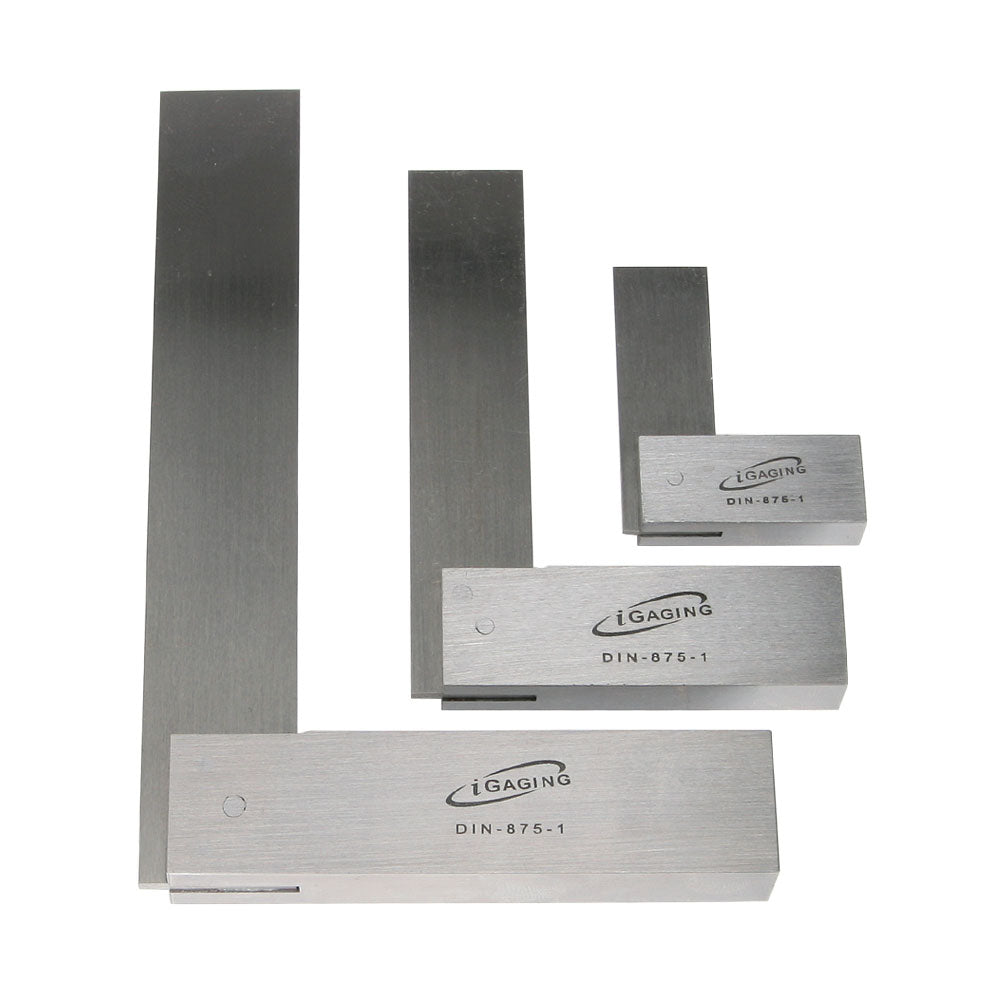

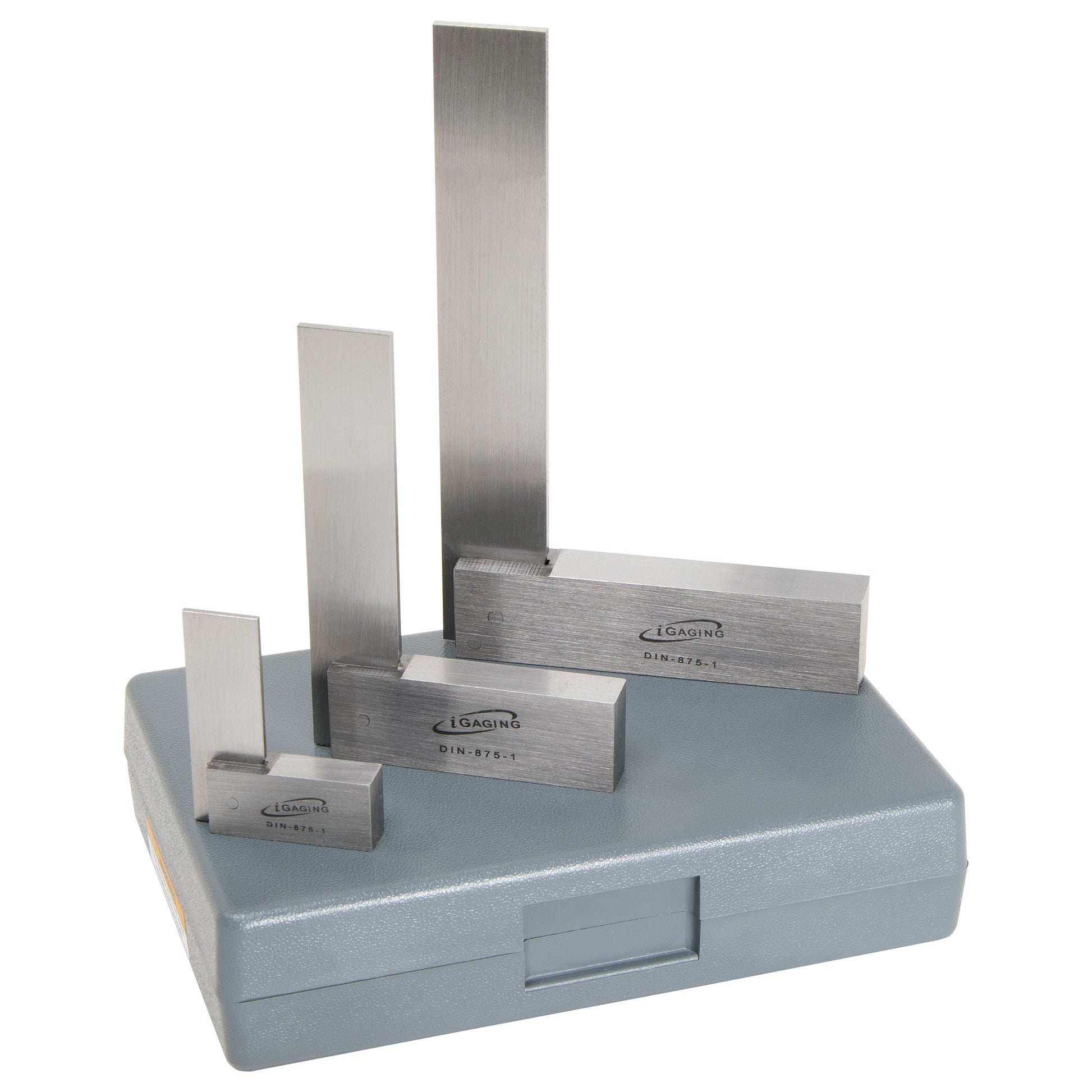

Set of three engineer's squares, sizes 2", 4", and 6". This set is ideal for set-up work with machine tools, table saw blades, and many other shop tools.

The surfaces and edges are ground for high tolerances of straightness and squareness.

Squares are accurate on both inside and outside angles and meet German DIN standard 875, Grade 1.

Length of blade is measured from inner edge of beam to end of blade. The small notch at the inside corner prevents small particles from accumulating at the juncture and impacting the squares reading.

Typical use involves aligning the beam along one edge of an object with the blade across the body of the work. Using a strong light source behind the square will reveal any gaps showing the squareness of the work.

Specifications

Squareness Tolerance - 2": 0.0002" (0.005 mm)

Squareness Tolerance - 4": 0.0002" (0.005 mm)

Squareness Tolerance - 6": 0.0003" (0.008 mm)

Straightness Tolerance - 2": 0.0004" (0.010 mm)

Straightness Tolerance - 4": 0.0005" (0.013 mm)

Straightness Tolerance - 6": 0.0006" (0.015 mm)
