Taig Tools

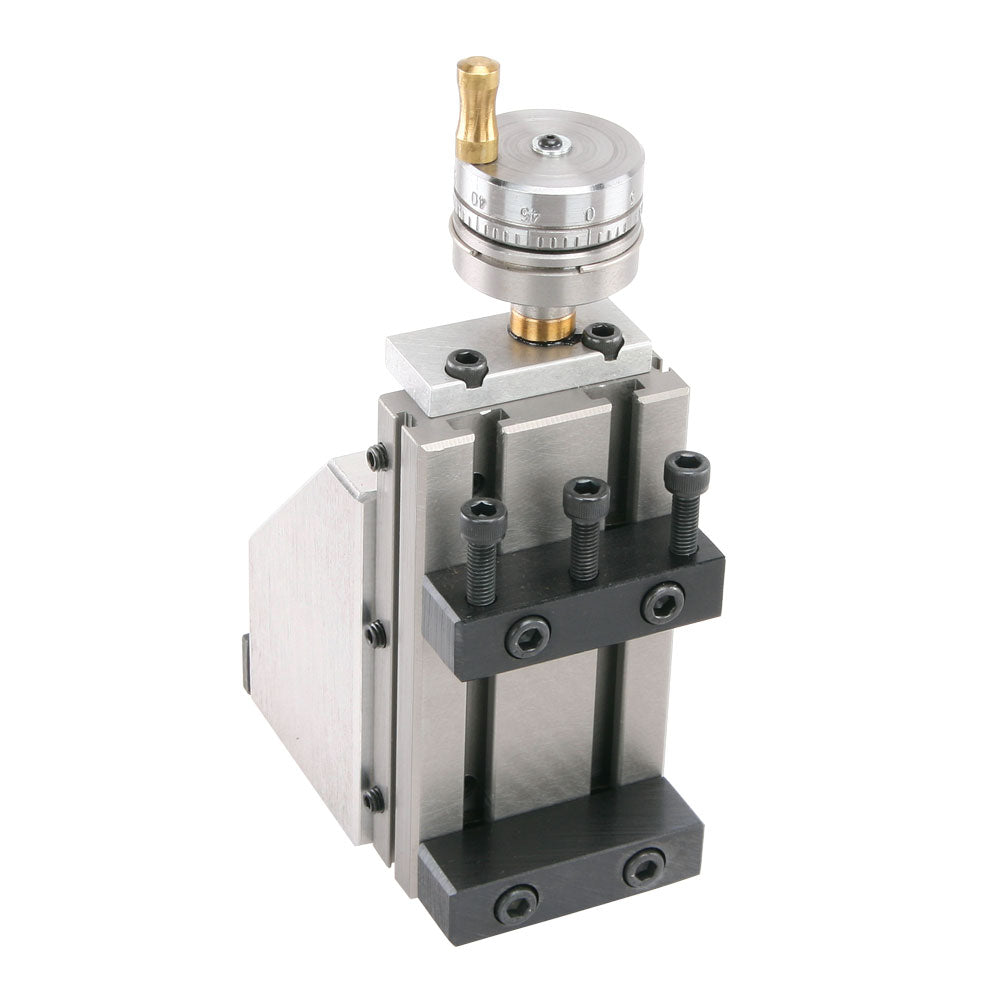

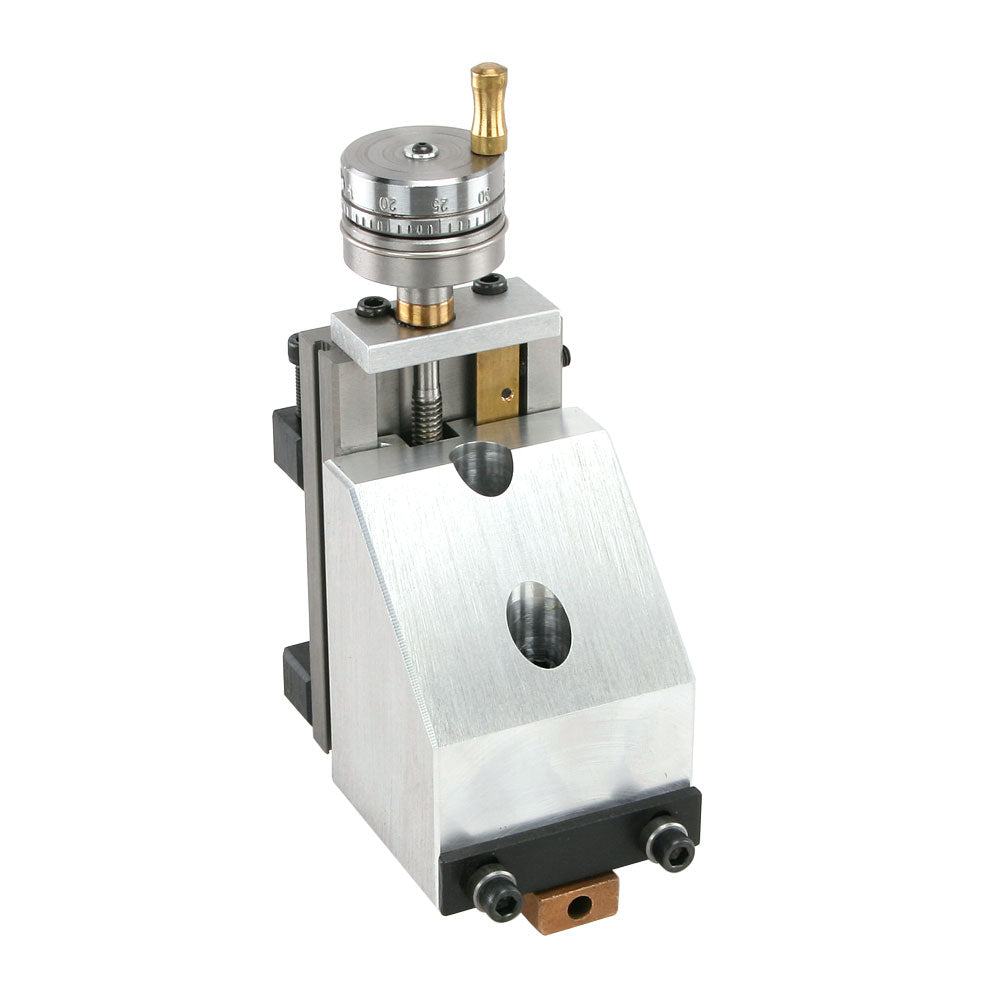

Milling Attachment, Taig

Milling Attachment, Taig

Made in United States of America (USA) Made in United States of America (USA)

1956

$84.95 USD
$84.95 USD
Sale Sold out
Shipping calculated at checkout.

Low stock

Key Features

  • Small milling attachment for mini lathe
  • Fits most small SIEG class mini lathes
  • Mounting block not included
  • See Chris Tips for mounting block plans

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

The Taig milling attachment makes a good small milling attachment for the mini lathe.

You must make a mounting block that is about 1" tall to mount this mini lathe milling attachment on the cross slide.

The total vertical travel is 1.5" and the dial provides 0.001" increments. The vise width is 2". The table is 2" x 3-3/4".

Overall the milling attachment is 2.25" wide, 3.38" deep, and 5.75" tall.

See the Compatibility tab for machines and other products that work with this product.

See Chris' Tips for mounting block plans.

Chris's Tips

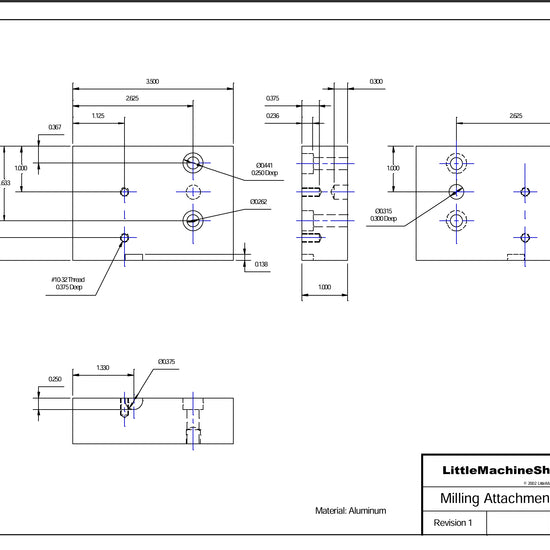

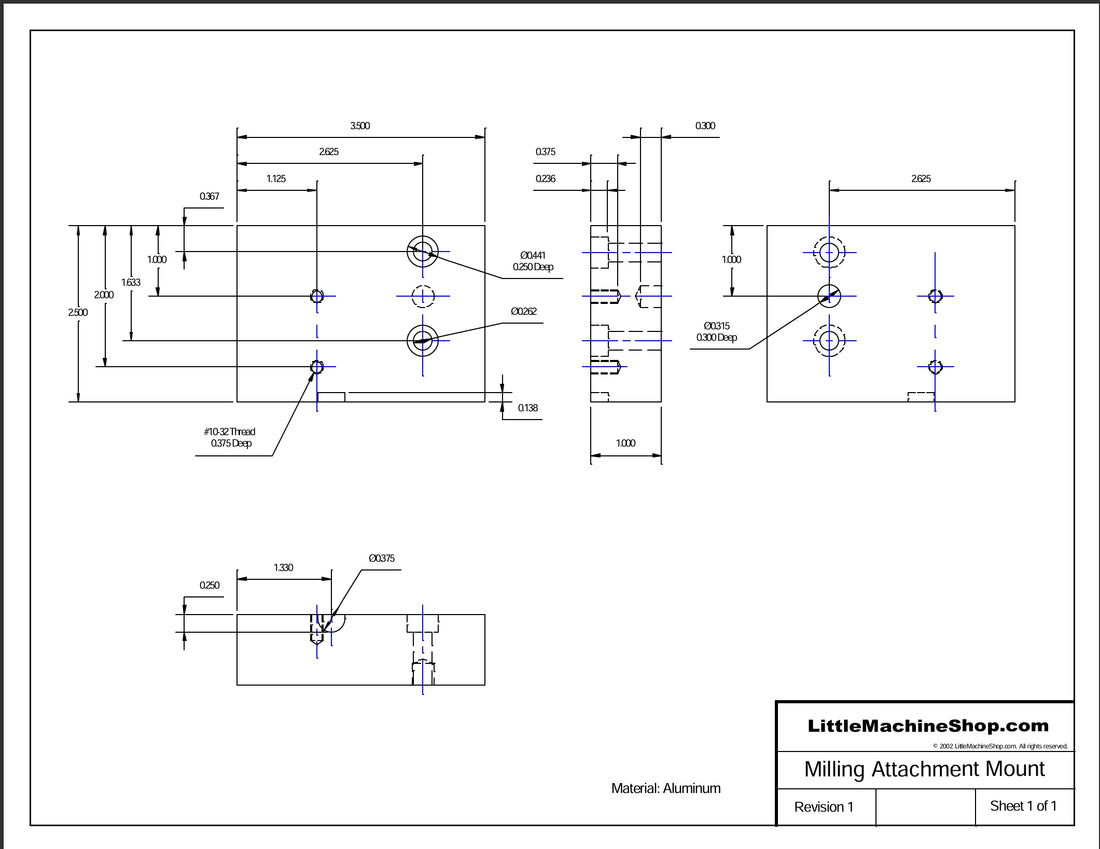

See associated plans for a mounting bracket that mounts the Taig milling attachment at the correct position on the mini lathe. This mounting block is Paul Mecca's design. Mount the plate to the lathe with M6x25 cap screws.

Here is a picture of the Taig milling attachment on the mini lathe.

Taig Milling Attachment

Drawings

Product Compatibility

This product was designed for machines manufactured by SIEG, including those listed below. We have added compatibility for other non-SIEG machines when a “fit” can be verified.

If your machine is not listed, we cannot verify compatibility but encourage you to contact us. With additional information we may be able to help you find a solution.

  • Grizzly G0745 4x6 Micro Metal Lathe
  • Harbor Freight 95012 Central Machinery 4x5 Micro Lathe
  • SIEG C0 4x5 Lathe
  • Bolton CQ9318 7x12 Mini Lathe
  • Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
  • Cummins (Tools Now) 5278 7x12 Mini Lathe
  • Eastwood 32497 7x12 Mini Lathe
  • Grizzly G8688 7x12 Mini Metal Lathe
  • Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
  • Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
  • LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
  • LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
  • Northern Tool 49656 KLUTCH 7x12 Mini Lathe
  • Princess Auto 8507659 Powerfist 7x12 Mini Lathe
  • SIEG C2 7x12 Mini Lathe
  • Tormach 30689 7x12 Duality Lathe
  • Travers Tools OT222300 OTMT 7x12 Mini Lathe
  • Warco 3005 7x12 Mini Lathe (Imperial)
  • Warco 3004 7x12 Mini Lathe (Metric)
  • WEN 3455 WEN 7x12 Mini Lathe
  • Micro-Mark 82500 MicroLux 7x12 Mini Lathe
  • LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
  • LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
  • SIEG SC2 7x12 Mini Lathe
  • Micro-Mark 82710 MicroLux 7x14 Mini Lathe
  • LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
  • SIEG C3 7x14 Mini Lathe
  • Big Dog BD-0618Ax300 7x14 Mini Lathe
  • Big Dog BD-0618x300 7x14 Mini Lathe
  • Warco 4820-350 7x14 Mini Lathe (Metric)
  • Warco 4800-350 7x14 Mini Lathe (Imperial)
  • Grizzly G0765 7x14 Mini Lathe
  • Micro-Mark 84631 MicroLux 7x16 Mini Lathe
  • LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
  • LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
  • LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
  • LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
