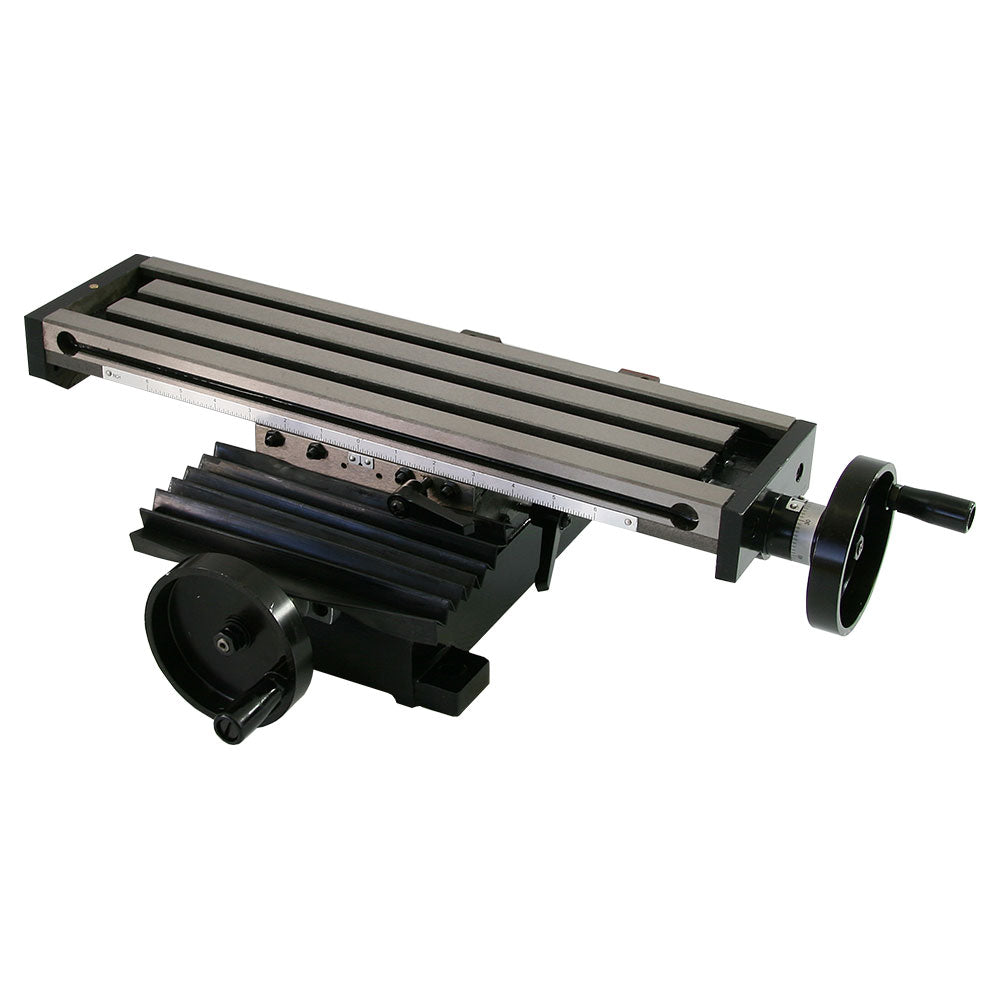

Mini Mill Large Table Assembly, Solid Column Base
Mini Mill Large Table Assembly, Solid Column Base
SKU:5013
Regular price
$499.95 USD
Regular price
Sale price
$499.95 USD
Unit price
/
per
Shipping calculated at checkout.
In stock
Couldn't load pickup availability
Key Features
Key Features
- 30% more travel in both directions
- 50% more table area
- Bolt pattern for solid column attachment (P/N 4307)
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
This is a complete X-Y table assembly for a mini mill.
The table is 120 mm (4.73") by 460 mm (18.11"). It has three 12 mm T-slots.
The X-axis travel is 300 mm (11.8") and the Y-axis travel is 130 mm (5.1").
The dials are graduated in 0.001" and one turn of the hand wheels moves the table 0.050".
The X-Y table is made of cast iron and steel. There are adjustable gibs on both axes.
The column mounting bolt pattern consists of 4 M8 threaded holes spaced 135 mm x 50 mm.
