Description
This is the spindle box casting for the mini mill, along with all the internal parts. Included are:
A 3 Morse Taper spindle with all the gears, bearings, spacers, and top nut that ride on it.
The intermediate shaft with all the gears, bearings and such that ride on it. This includes the intermediate gear on the top of the shaft.
The high/low speed shifting mechanism.

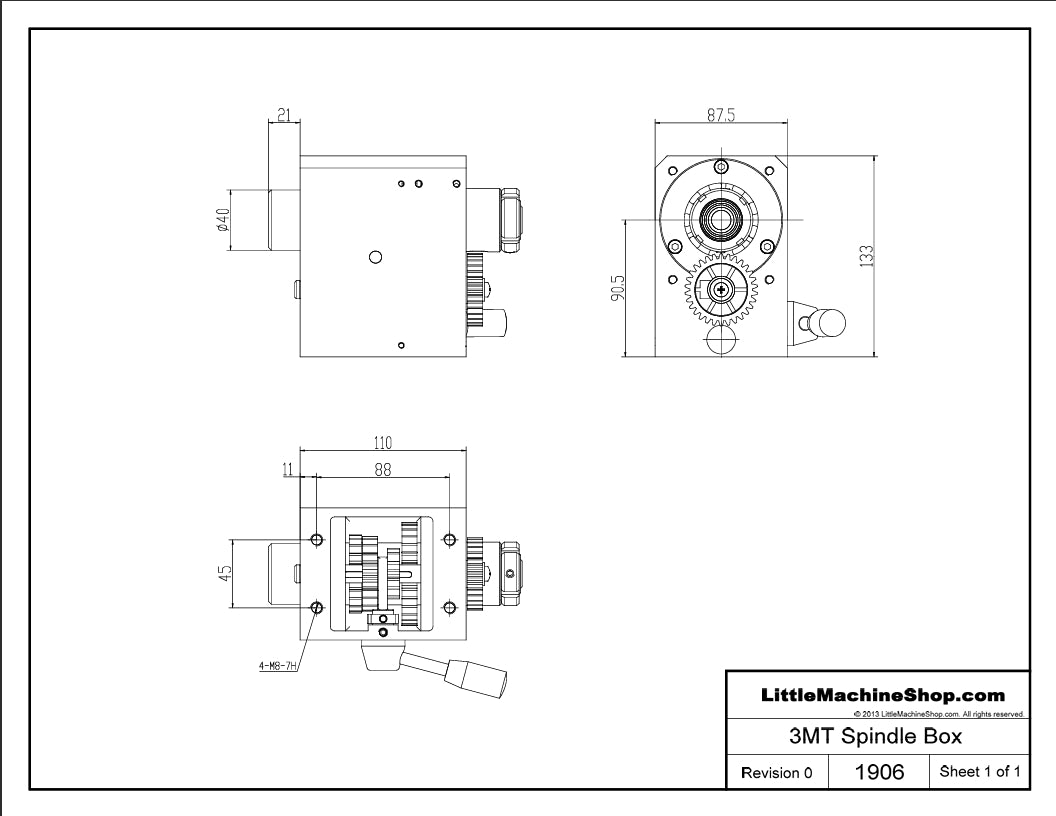

Drawings
Product Compatibility
This product was designed for machines manufactured by SIEG, including those listed below. We have added compatibility for other non-SIEG machines when a “fit” can be verified.
If your machine is not listed, we cannot verify compatibility but encourage you to contact us. With additional information we may be able to help you find a solution.
- Bolton XJ-9510 Mill/Drill
- Clarke CMD300 Milling Drilling Machine
- Grizzly G8689 Mini Milling Machine
- Hare & Forbes HM-10 Mill/Drill
- Princess Auto 8507667 Powerfist Mini Mill
- SIEG X2-MT3 Mini Mill
- Micro-Mark 82573 MicroLux Milling Machine
