Multi-Gage Measurement Set

Multi-Gage Measurement Set

$34.95
$49.95 $34.95
Sale Sold out
Shipping calculated at checkout.

In stock

6861 (BUNDLE)

Key Features

  • Each size has a nut and bolt checker on the same gauge with the sizes etched on each gage
  • All on a convenient wire cable with a loop for hanging
  • Measures wire gages, drill sizes, drill points, screw pitches, bores.
  • Can also be used as a ruler or protractor.
  • Tap & drill recommendation chart included.

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

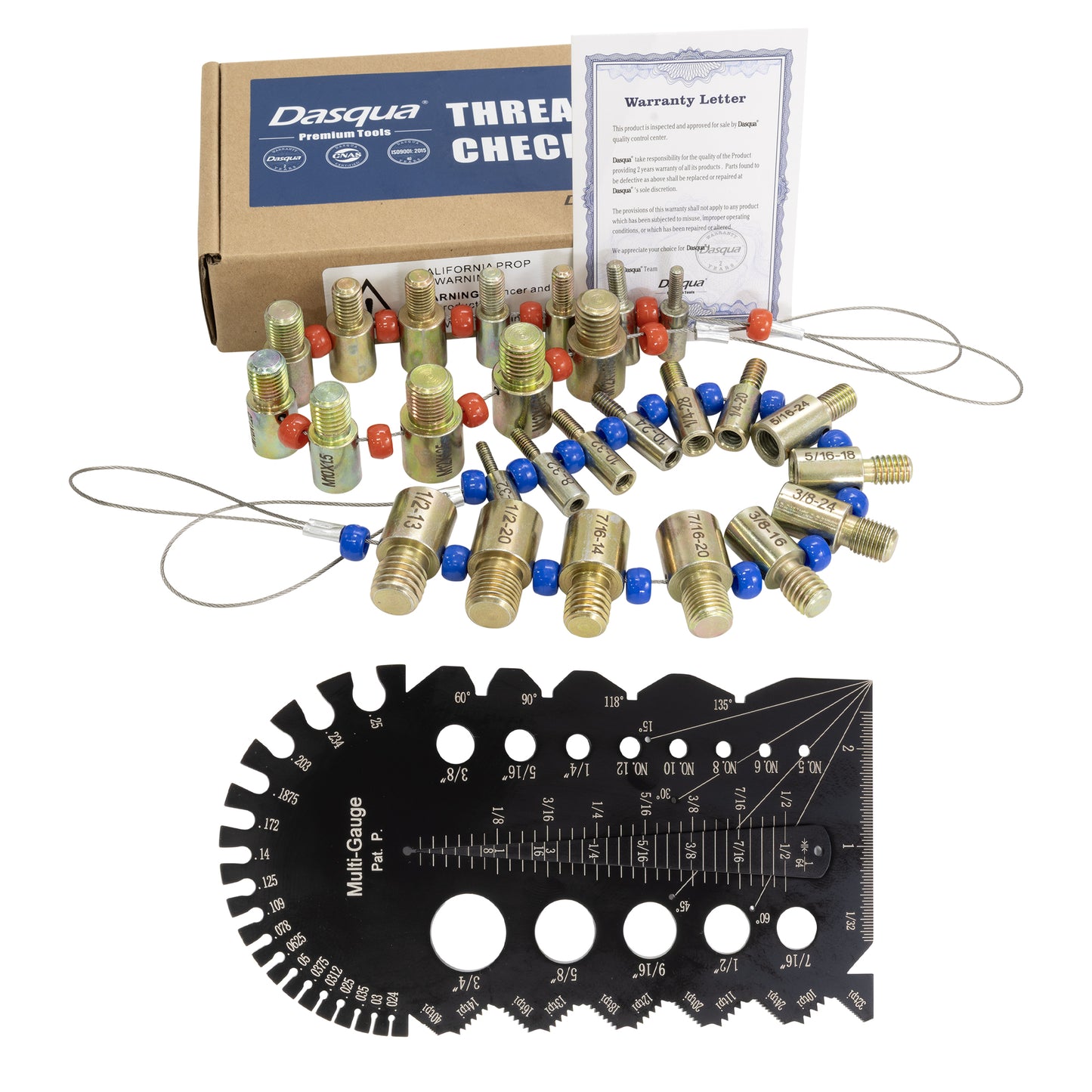

Dasqua Premium Inch and Metric thread checker. This thread checker set provides a quick and easy way to measure standard threads in both inches and metric. They provide all the information you need for screws; diameter, length, threads per inch, hole size and even tap drill sizes. Each piece has a male and female end to help you identify screws, nuts, or other threaded items.

(14) Inch Sizes Included: #6-32, #8-32, #10-24, #10-32, 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20

(12) Metric Sizes Included: M4 x 0.7, M5 x 0.8, M6 x 1.0, M7 x 1.0, M8 x 1.0, M8 x 1.25, M10 x 1.0, M10 x 1.25, M10 x 1.5, M12 x 1.25, M12 x 1.5, M12 x 1.75

The metal construction removes the issue of damaging the checker when testing threading which is sometimes an issue with plastic checkers.

* Note: Spacer beads may vary in color and style.



Dasqua 7-in-1 Multi-Purpose Gage. Measures wire gages, drill sizes, drill points, screw pitches, bores. Can also be used as a ruler or protractor. Tap & drill recommendation chart included.

  • Wire gage measures 0.024-0.25".
  • Drill sizes include #5, #6, #8, #10, #12, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8 & 3/4".
  • Drill points include 60, 90, 118 & 135 degrees.
  • Screw pitch gage measures 40th, 32nd, 24th, 20th, 18th, 16th, 14th, 13th, 12th, 11th & 10th TPI.
  • Bore gages include 1/64-1/2".
  • Ruler is 2-1/2 x 32nds.
  • Protractor measures 15, 30, 45, 60, & 90 degrees.

Made of tool steel with black coating. Laser engraved markings. 6-5/8 long X 3-1/2" wide. Vinyl pouch is included.
