Power Feed, Bench Mill - Standard Table (23.5" x 5.5")
Power Feed, Bench Mill - Standard Table (23.5" x 5.5")
Out of stock
SKU:5113Shelf Location: (A06 - 01)
Couldn't load pickup availability
Key Features
Key Features
- Fits older model 5500 & 6500 HiTorque Bench Mills
- Clutch disengages power feed when not in use
- Adjustable limit switches restrict travel
- 120-240V 50-60Hz
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

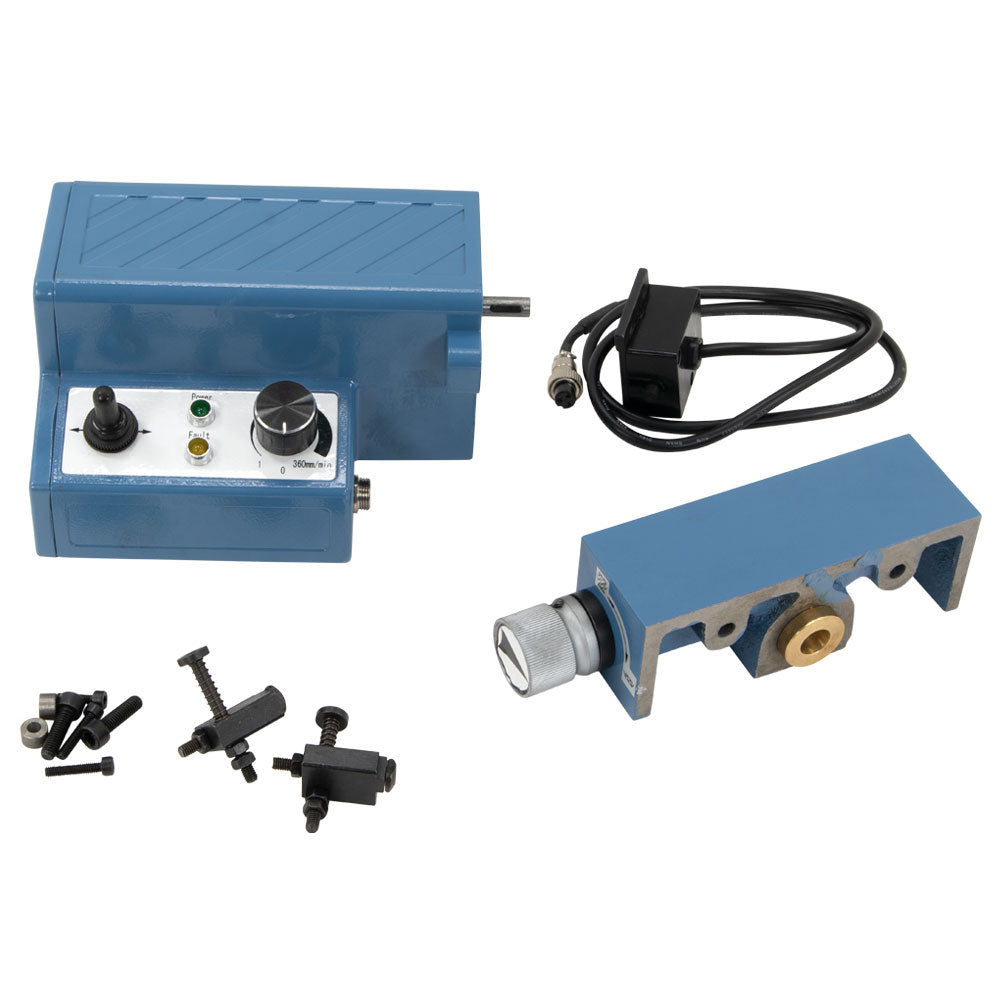

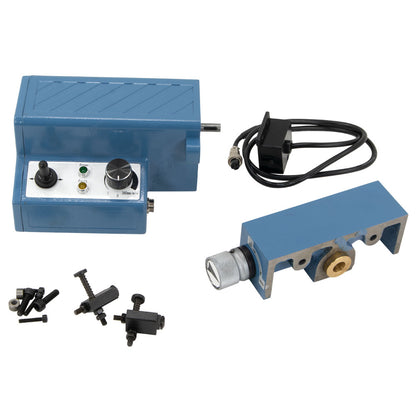

Power table feed for older model HiTorque Bench Mills (5500 & 6500) and SX2.7 mill with standard size table (23.5" x 5.5").
This power feed mounts on the left end of the mill's table and drives the X-axis feed screw. It is variable speed (0 to 20 inches per minute).
The kit takes about 20 minutes to install. It is a bolt-on accessory for the bench mill and requires no modifications to the machine. The power feed adds 8 1/4" inches to the left end of the table.
Like all our machines it runs on a standard 120-volt power outlet
*Note: Check out Chris' Tips below for videos of Power Feed in use and an Installation video and review from Frank Hoose.
Chris' Tips
Here's a video showing the power feed in action.
This 24-minute video by Frank Hoose shows installation of the power feed and includes Frank's review.
