Fisher Machine Products

Fisher Machine Shop Products - LittleMachineShop.com

Edge finders, tap guides, Pee Dee thread measuring wires and magnetic test indicator holders at LittleMachineShop.com.

1960 Edge and Center Finder, 3/8" Shank Audible, Fisher

Audible Edge Finder, clicks when finder hits edge
3/8" Shank, 0.200" tip
Maximum RPM for use: 1500 RPM
Black tip makes it easier to see.
Made in USA by Fisher Machine Shop

This 3/8" diameter edge finder helps you locate work on your mill. When you reach the edge of the work it not only jumps to the side, but it clicks too. The edge finder has a 0.200" diameter cylinder to quickly find the edge of a work piece. Not for use in high speed spindles. The edge finder is hardened and ground all over and is furnished with a quality vinyl case. This is a quality American-made product from Fisher Machine Shop.

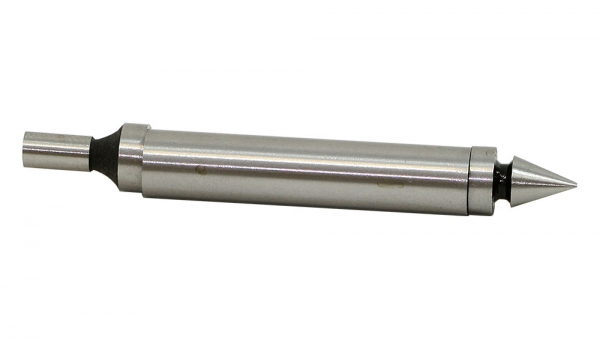

1959 Edge and Center Finder, 3/8" Shank, Fisher

Edge and Center Finder
3/8" diameter, 0.200" diameter cylinder
Edge finder end has 0.2000" dia. tip point
Maximum RPM for use: 1500 RPM
Made in USA by Fisher Machine Shop

This 3/8" diameter combination edge and center finder helps you locate work on your mill. The edge finder end has a 0.200" diameter cylinder to quickly find the edge of a work piece. The center finder end tapers to a point to locate holes. The edge and center finder is hardened and ground all over. Use at a maximum of 1500RPM. The edge and center finder is furnished with a quality vinyl case. This is a quality American-made product from Fisher Machine Shop.

1961 Edge Finder, 1/4" Shank Audible , Fisher

Audible Edge Finder, clicks when finder hits edge
1/4" diameter, 0.200" diameter cylinder
Maximum RPM for use: 1500 RPM
OAL 2-7/8", 1/4" shank is 7/8" long
Made in USA by Fisher Machine Shop

This 1/4" diameter Fisher edge finder helps you locate work on your mill. When you reach the edge of the work it not only jumps to the side, but it clicks too. The edge finder has a 0.200" diameter cylinder to quickly find the edge of a work piece. The edge finder is 2-7/8" long. the 1/4" shank is 7/8" long. The edge finder is hardened and ground all over and is furnished with a quality vinyl case. This is a quality American-made product from Fisher Machine Shop.

3072 Magnetic Test Indicator Holder, Fisher

Overall height 3.75"
Powerful permanent magnet
Clamps on dovetail, 5/32", or 1/4" diameter stems
Includes stem adapter and mill adapter
Made in USA by Fisher Machine Shop

Indicator Holder with two accessories (Stem adapter and Mill adapter) Clamp Indicator with either dovetail or 5/32" or 1/4" diameter stem Powerful permanent magnet Overall Height of 3.75" Universal Swivel Joint with Friction Movement

1962 Pee Dee Thread Measuring Wires, Fisher

Made in USA by Fisher Machine Shop

This set of thread measuring wires includes 48 wires of 16 different diameters for the three wire thread measuring procedure. You can measure threads from 3 to 48 threads per inch, and metric threads from 0.5 mm to 6 mm pitch. You can also measure Acme threads from 3 to 16 threads per inch. The thread measuring wires come with thread charts and are furnished with a quality vinyl case. This is a quality American-made product from Fisher Machine Shop. These are the original Pee Dee thread measuring wires.

3535 Sine Bar, 2.5", Fisher

Working face parallel to bottom of rolls within 0.0002"
2.50" center distance of rolls accurate to 0.0003"
Made in USA

Use a sine bar and space blocks to set or measure extremely accurate angles.

3104 Tap Guide, 2MT Short, Fisher

Made in USA
Fits directly in the mini lathe tailstock
Much shorter than a drill chuck and regular tap guide

This tap guide helps you start threaded holes straight. The reversible point is spring loaded to maintain pressure on the tap. One end of the point has a center hole for small taps, while the other end is pointed for larger taps. The 2 Morse taper body is ground to fit the tailstock of the mini lathe. Remove the setscrew in the back end to reverse the point. This is a quality American-made product from Fisher Machine Shop.

1963 Tap Guide, Fisher

Made in USA by Fisher Machine Shop
Reversible
0.500" diameter body
Ground and knurled for easy handling

This tap guide helps you start threaded holes straight. The reversible point is spring loaded to maintain pressure on the tap. One end of the point has a center hole for small taps, while the other end is pointed for larger taps. The 0.500" diameter straight shank body is ground and knurled cap for easy handling. Remove the setscrew in the back end to reverse the point. This is a quality American-made product from Fisher Machine Shop.

2339 Thread Measuring Wires, Replacement

Set of three thread measuring wires.
For Pee Dee Thread Measuring Wire Sets

These are replacement wires for Pee Dee Thread Measuring Wire sets. Specify the size needed in the Special Instruction box on your order.
