Dial Test Indicator, 0-15-0 x 0.0005"

Dial test indicator with 0.0005" graduations
Range is 0 - 0.030" in either direction
Reading 0-15-0
Includes 5/32" and 3/8" diameter posts, dovetails on the back and end, and an 0.080" diameter point
7 Jewel movement, Comes in a fitted case

Part Number: 1249
Weight: 0.28 lb

Price: $32.95

Share this page:
http://lmscnc.com/1249

Description

Test Dial Indicator with 0.0005” graduations and reading from 0 – 15 – 0. Comes in a fitted case.

Chris' Tips

Chris' Tips
At rest, an indicator’s needle points at a random position, usually in the 10 o’clock range. This is completely normal, as the needle’s position at rest is irrelevant to the use of an indicator.

An indicator is only useful when the tip is bearing against a surface to be measured. The action of pressing the tip against the surface moves the needle, also to some random position. But this position is relevant; turn the bezel so that the needle is pointing at zero. Now you can make measurements, both positive and negative, relative to the starting position.

Specifications

Specifications
Range	1.00" - 0.03" (25.4 mm - 0.8 mm)
Resolution	0.0005" (0.013 mm)
Dial Reading	0-15-0

Photos

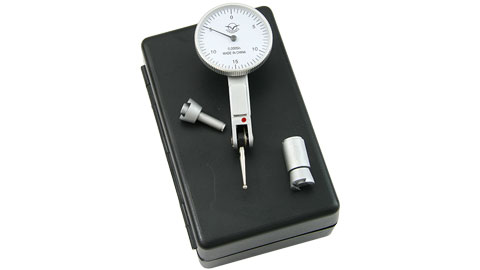

0-15-0 x 0.0005 inch Dial Test Indicator

Indicator Face
