Magnetic Back for Dial Indicator
- 2.25" diameter to fit AGI Group II dial indicators
- Magnetic back comes with screw-on indicator back
- Strong permanent magnet
Part Number: 2531
Weight: 0.35 lb
Weight: 0.35 lb
Price: $5.95
Share this page:
http://lmscnc.com/2531
http://lmscnc.com/2531

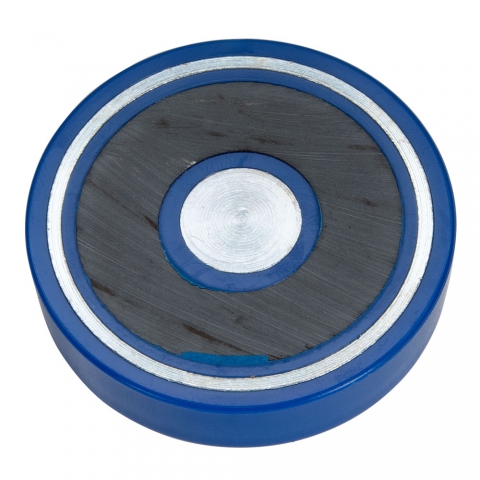

Magnetic back for dial indicators that can easily screw onto the indicator and allow the indicator to be mounted on any surface which attracts a magnet. The magnet is strong and is wrapped in a blue plastic shell to protect it.
The diameter of the tools is 2 1/4" and it is 9/16" thick.
The indicator is fixed to the holder with a screw and this magnetic backing fits AGI Group II dial indicators.
*NOTE* To mount this magnetic backing, use the screw that came with your indicator which is used to mount its current backing. Sometimes a slightly longer screw is required. If that is the case, buy a 2-56 screw of the appropriate length to mount to this magnetic back.
| Range | 0" - 2" (0 mm - 51 mm) |
| Resolution | 0.001" (0.03 mm) |
| A.G.D. Group | 2 |
| Face Diameter | 2.25" (57.1 mm) |
| Shank Size | 0.375" (9.52 mm) |
| Thread Tip | #4-48 |
| Dial Reading | 0-100-0 |
| Revolution | 0.100" (2.54 mm) |
| Type | Lug backing |
| Dial Face | Continuous Dual Reading |
 |

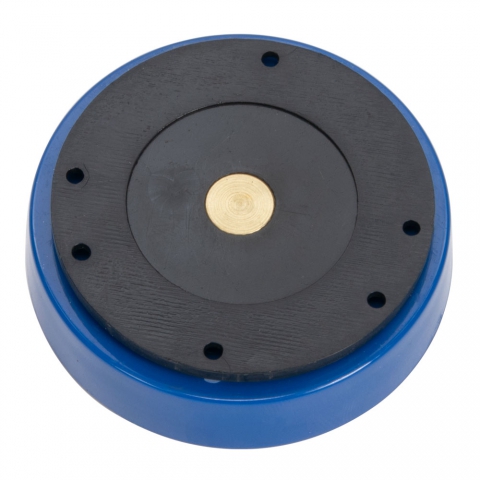

Reverse View |
 |

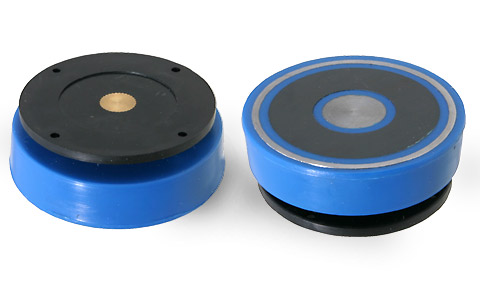

Side View of Pair of Indicators (2 products) |
