Starter Kit, Mini Lathe, 5/16" Tool Bits

Starter Kit, Mini Lathe, 5/16" Tool Bits

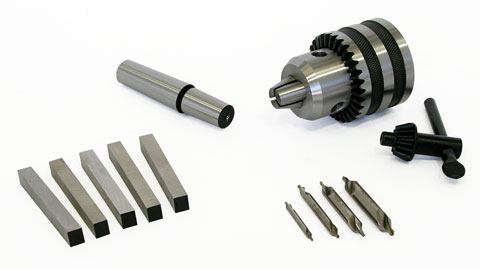

  • 0-1/2" Capacity Drill Chuck and key
  • Drill chuck arbor 2MT short to 33JT
  • Five 5/16" M2 high speed steel tool bit blanks
  • Four center drills, sizes 1, 2, 3, and 4
Part Number: 1261
Weight: 2.31 lb
$32.95 Value Price

Purchased individually $42.64

In stock
Quantity:
Mini Lathe starter kit designed for 7x10, 7x12 and 7x14 mini lathes and includes all the basics you need to get started with a new mini lathe.

Drill Chuck: 0-1/2" Capacity drill chuck. All working parts are hardened. Chuck key is included. Number 33 Jacobs taper mount. Runout of this chuck is 0.008" (0.20 mm) or less.

This mini lathe starter kit is specifically designed for use on the mini lathe tailstock. The rated capacity of the drill chuck is 1 mm (0.039") to 13 mm (0.512").

Tool Bits: 5/16" square by 2-1/2" long HSS mini lathe tool bits made of M2 high speed steel. The tool post on most mini lathes are sized to use 5/16" tool bits.

Center Drills: Four sizes combined drills and countersinks made of high speed steel. Sizes 1, 2, 3, and 4 with 60 degree countersinks.

Chris Chris' Tips
This product is specifically designed for use on the mini lathe tailstock.

The 2 Morse taper is the correct length for the lathes listed below. Don't buy this product for other lathes as it won't eject from the tailstock when you retract the quill.

If you want this product for a Grizzly G0765 7x14 lathe, put a note on your order: "For a G0765. Need a standard length drill chuck arbor." We will substitute the correct arbor.

This kit includes a stub arbor that does not need to be cut off.

We have two lathe starter kits. One starter kit (PN 1261) has 5/16 tool bits which are the correct size for 7x10, 7x12, and 7x14 mini lathes. This kit includes a 2MT short arbor which gives you full use of the tailstock stroke on the mini lathe.

The other starter kit (PN 1796) has 3/8" tool bits which work for most other small lathes. This kit includes a standard 2MT arbor which works in most lathes with a 2MT tailstock taper.

Compatibility

This product works with lathes with a short 2 Morse taper tailstock taper including:

  •   Enco 110-0803 Enco 7x10 Mini Lathe
  •   Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
  •   Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
  •   MSC 0192857 Enco 7x10 Mini Lathe
  •   Bolton CQ9318 7x12 Mini Lathe
  •   Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
  •   Cummins (Tools Now) 5278 7x12 Mini Lathe
  •   Eastwood 32497 7x12 Mini Lathe
  •   Grizzly G8688 7x12 Mini Metal Lathe
  •   Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
  •   Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
  •   Northern Tool 49656 KLUTCH 7x12 Mini Lathe
  •   Princess Auto 8507659 Powerfist 7x12 Mini Lathe
  •   SIEG C2 7x12 Mini Lathe
  •   Tormach 30689 7x12 Duality Lathe
  •   Travers Tools OT222300 OTMT 7x12 Mini Lathe
  •   Warco 3005 7x12 Mini Lathe (Imperial)
  •   Warco 3004 7x12 Mini Lathe (Metric)
  •   WEN 3455 WEN 7x12 Mini Lathe
  •   Micro-Mark 82500 MicroLux 7x12 Mini Lathe
  •   LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
  •   LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
  •   SIEG SC2 7x12 Mini Lathe
  •   Micro-Mark 82710 MicroLux 7x14 Mini Lathe
  •   LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
  •   SIEG C3 7x14 Mini Lathe
  •   Big Dog BD-0618x300 7x14 Mini Lathe
  •   Big Dog BD-0618Ax300 7x14 Mini Lathe
  •   Warco 4800-350 7x14 Mini Lathe (Imperial)
  •   Warco 4820-350 7x14 Mini Lathe (Metric)
  •   Micro-Mark 84631 MicroLux 7x16 Mini Lathe
  •   LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
  •   LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
  •   LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
  •   LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
