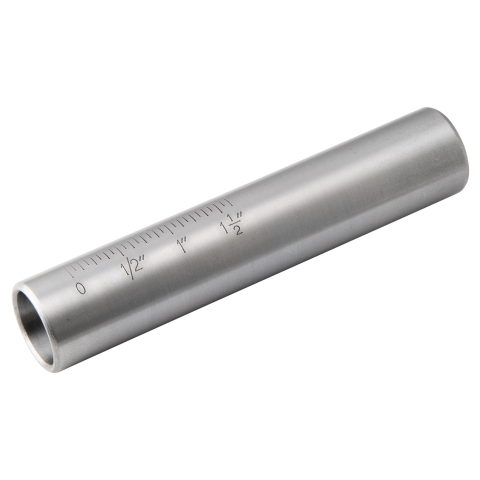

Quill, Tailstock, Mini Lathe
- Quill for 7x10, 7x12 & 7x14 mini lathe tailstocks
- #2 Morse Taper bore
- Overall length 110 mm
- Diameter 22 mm
- Keyway 4 mm x 75 mm in length
Part Number: 1306
Weight: 0.36 lb
Weight: 0.36 lb
Price: $19.95
Share this page:
http://lmscnc.com/1306
http://lmscnc.com/1306
This is the quill for the tailstock on common 7x10, 7x12 and 7x14 mini lathes (SIEG C2 & C3 models) as well as HiTorque mini lathes (SIEG SC2).
It has a #2 Morse Taper bore.
Overall length is 110 mm and diameter is 22 mm. The keyway on the underside is 4 mm x 75 mm in length.
See Used On tab for reference to machines using this part and the corresponding drawing number.
| Overall Length | 4.33" (110.0 mm) |
| Diameter | 0.87" (22.0 mm) |
| Keyway | 4 mm x 75 mm |
| Bore | #2 Morse Taper |
 |
Underside view |
 |
2MT Bore |
 |
End View |
In your instruction manual, this part appears on the parts list as:
