Quill, Tailstock, Mini Lathe

Quill, Tailstock, Mini Lathe

1306

$19.95 USD
$19.95 USD
Sale Sold out
Shipping calculated at checkout.

Low stock

Key Features

  • Quill for 7x10, 7x12 & 7x14 mini lathe tailstocks
  • #2 Morse Taper bore
  • Overall length 110 mm
  • Diameter 22 mm
  • Keyway 4 mm x 75 mm in length
*Will this fit my machine? Check our Replacement Parts

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

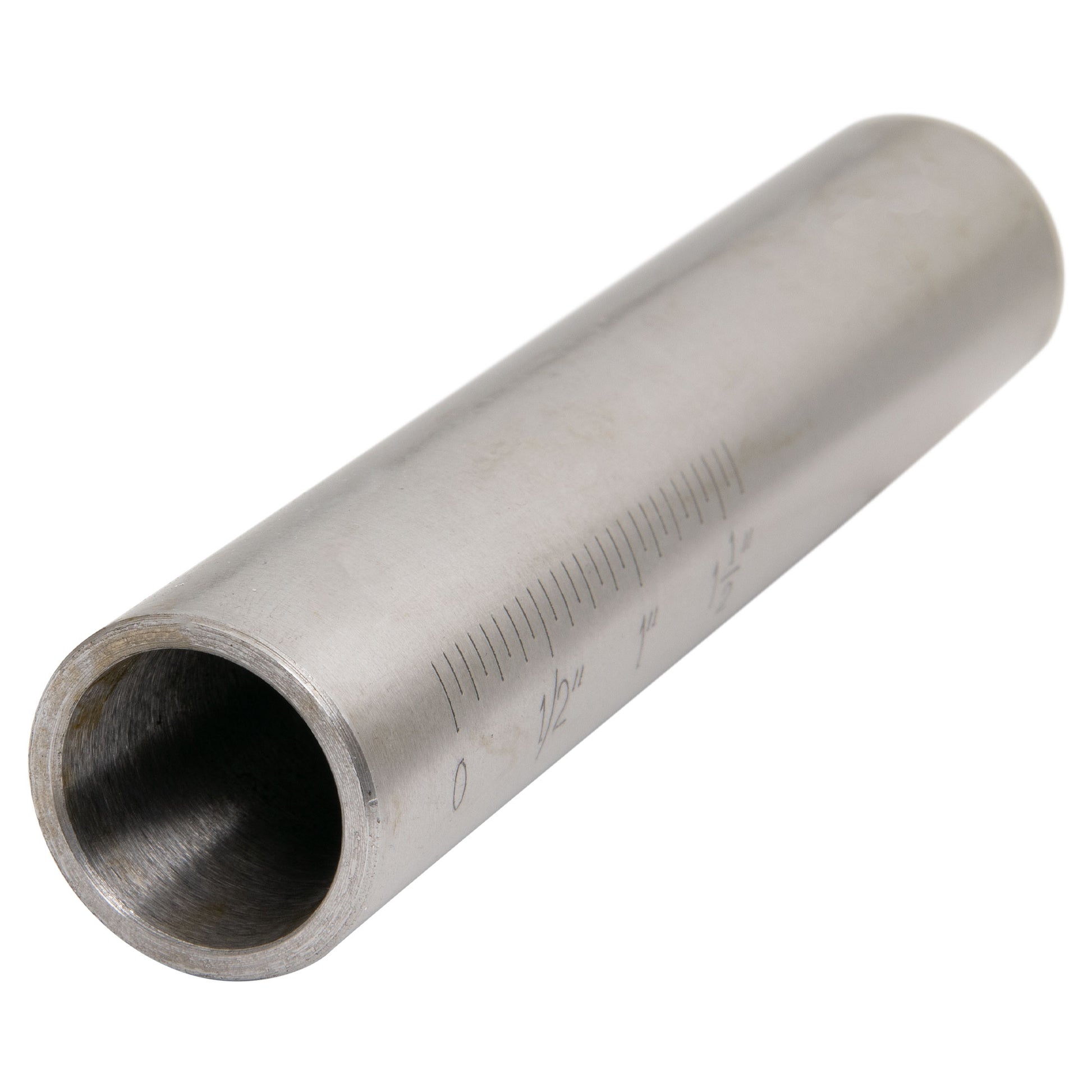

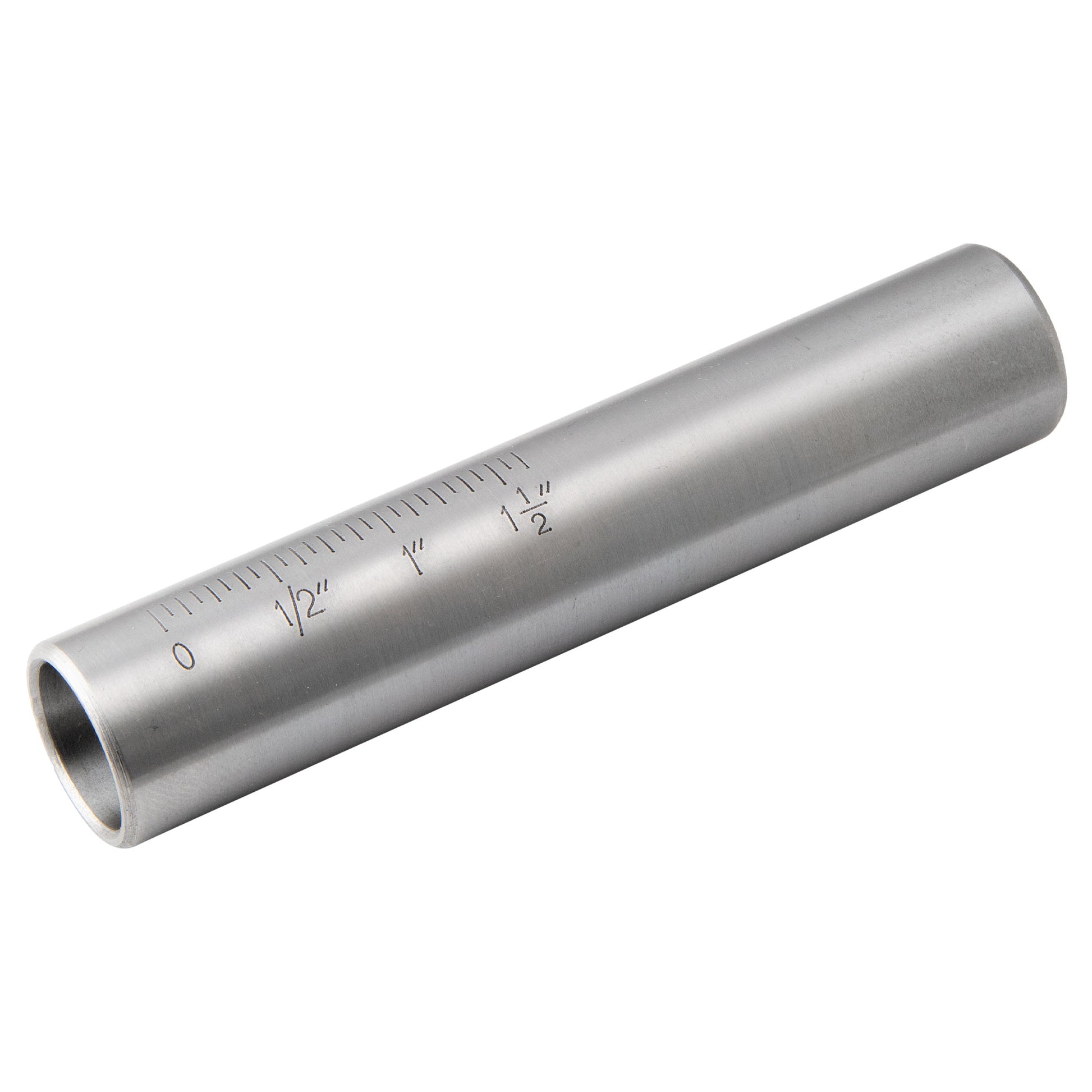

This is the quill for the tailstock on common 7x10, 7x12 and 7x14 mini lathes (SIEG C2 & C3 models) as well as HiTorque mini lathes (SIEG SC2).
It has a #2 Morse Taper bore.

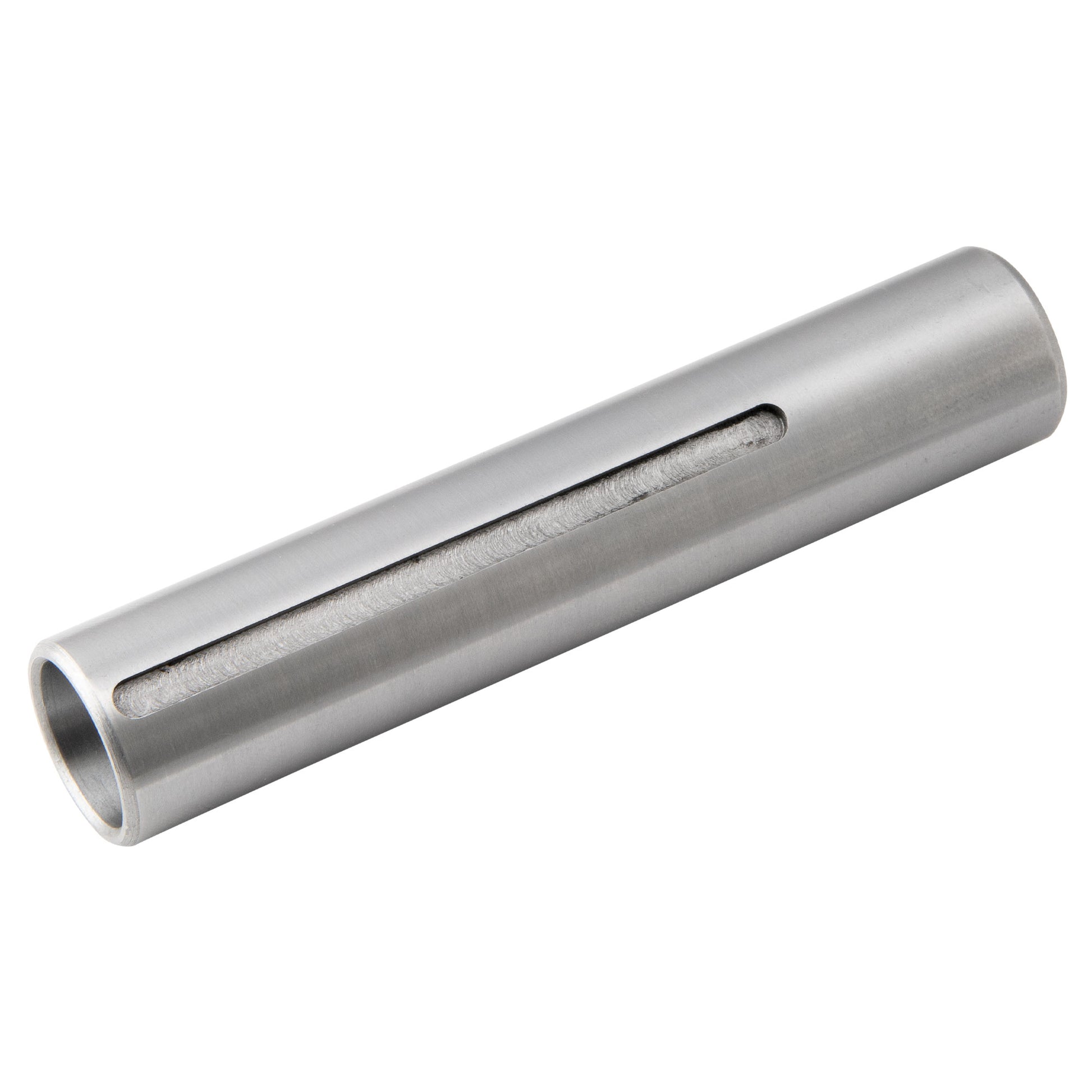

Overall length is 110 mm and diameter is 22 mm. The keyway on the underside is 4 mm x 75 mm in length.

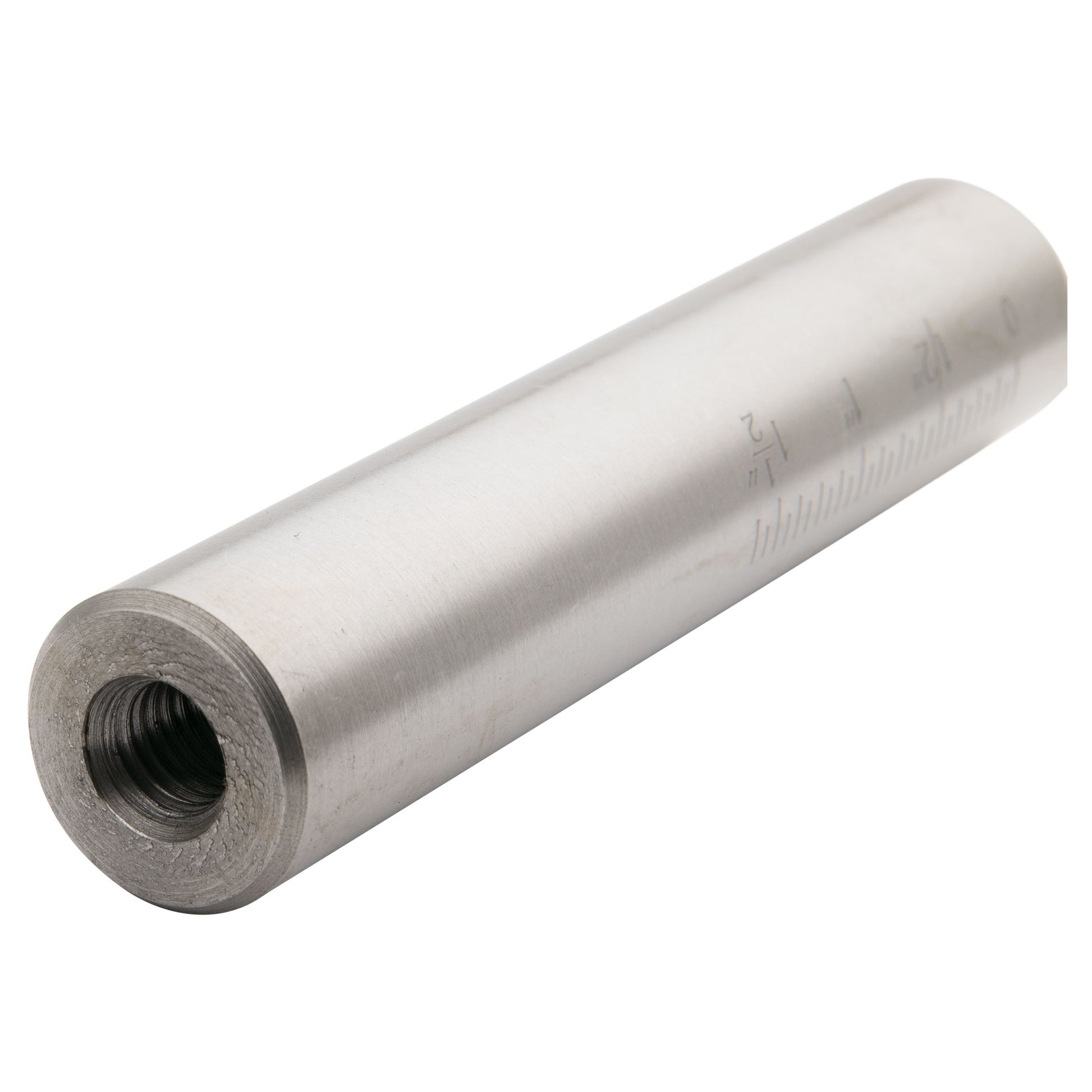

Thread is M10-2 left hand

Specifications

Overall Length: 4.331" (110 mm)

Diameter: 0.866" (22 mm)

Keyway: 4 mm x 75 mm

Bore: #2 Morse Taper
