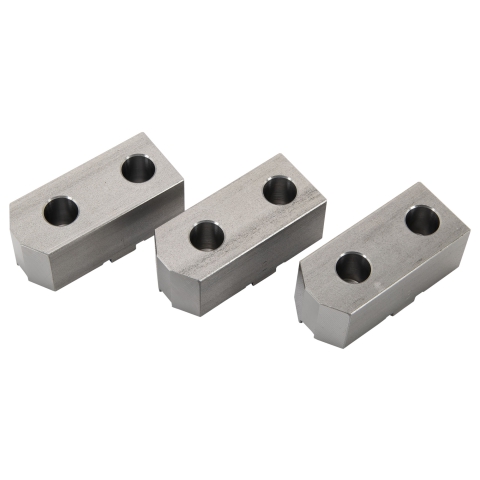

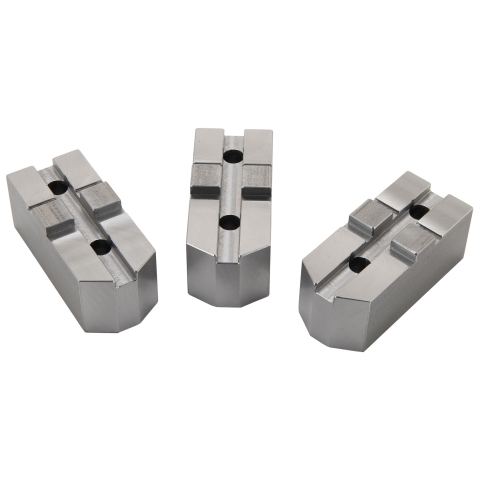

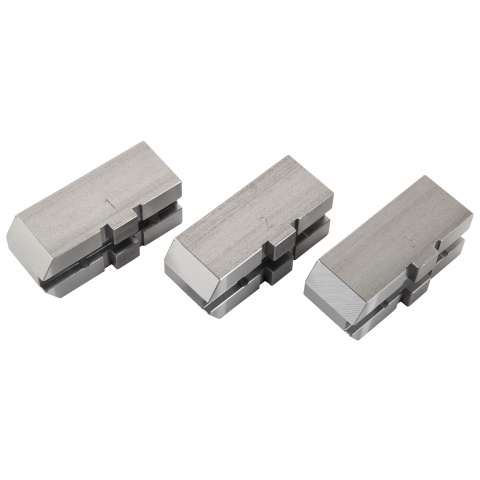

Soft Jaws, 6" Lathe Chuck

Supplies maximum concentricity on finish turning operations.

Can be bored or turned to fit workpiece.

Jaws can be hardened.

Chuck Size 6".

Groove Width D is 0.313

Tongue Width G is 1/2

Screw Size E is 5/16

Hole Space F is 1.500

Tongue to Front H is 0.866

Tongue Position C is Offset

Width Inch A is 1-1/4

Length Inch B is 2-7/8

Height Inch is 1-1/4

For use on Buck, Bison, Cushman, Huron, PBA, Yuasa and Rohm Chucks.
