Handwheel, Mini Lathe
- Saddle drive and tailstock handwheel for mini lathe
- Fits SIEG C2, SC2, C3 and HiTorque mini lathes
- 90 mm outside diameter
- Fits 8 mm shaft (no key)
- Bore is 22 mm, handle threading is M8
Part Number: 1380
Weight: 0.32 lb
Weight: 0.32 lb
Price: $13.48
Share this page:
http://lmscnc.com/1380
http://lmscnc.com/1380

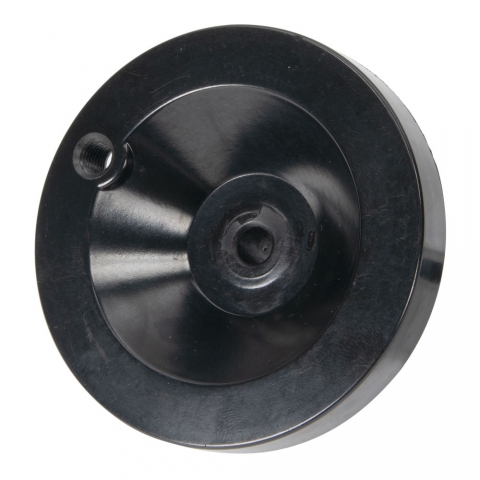

This handwheel is used on the saddle drive and the tailstock of the mini lathe. It is designed for the SIEG C2, SC2 and C3 class of mini lathes including the HiTorque mini lathes.
The handwheel is 90 mm in diameter. It mounts on a 8 mm shaft, with a set screw. The length through the bore is 22 mm. There is an M8 threaded hole for a handle.
See Used On tab for reference to machines using this part and the corresponding drawing number.
 |

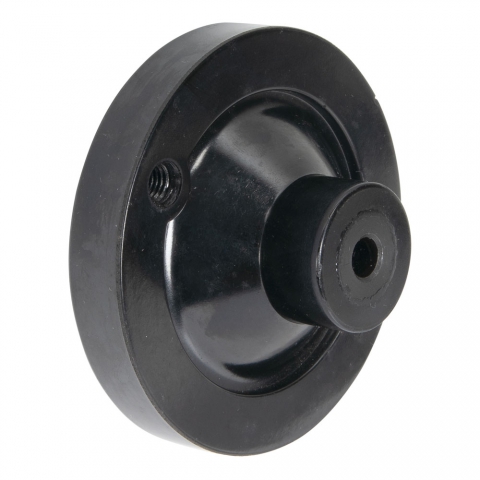

Back Side of Handwheel |
In your instruction manual, this part appears on the parts list as:
