Crank Handle, Cross Slide

Crank Handle, Cross Slide
Part Number: 1384
Weight: 0.17 lb

Price: $16.67

In stock
Quantity:

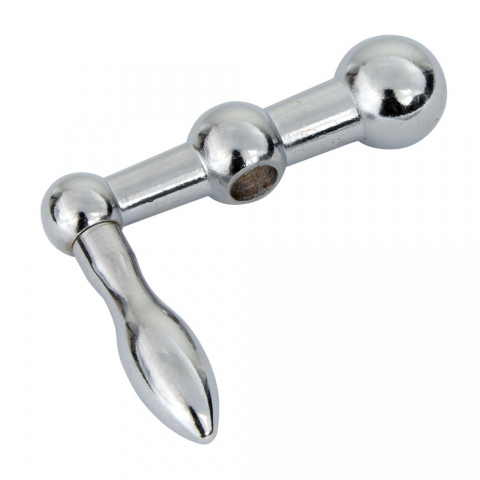

This machine crank handle is used on the cross slide of the mini lathe.

This handle has a smooth bore and mounts on an 8 mm shaft.

The lathe crank handle is 2 5/8" from outside of ball to outside of ball. The handle extends 1 5/8" from the small ball.

Chris Chris' Tips
Here is a drawing of the 1383 small crank handle and a drawing of the 1384 large crank handle.

In your instruction manual, this part appears on the parts list as:

Item No Models
43  LittleMachineShop.com 4100 HiTorque Mini Lathe - 7x12
LittleMachineShop.com 4200 HiTorque Mini Lathe - 7x12
LittleMachineShop.com 5100 HiTorque Mini Lathe - 7x16
LittleMachineshop.com 5200 HiTorque Mini Lathe - 7x16
Various SC2-US SIEG Mini Lathe
LittleMachineShop.com 7300 HiTorque Mini Lathe - 7x16
LittleMachineShop.com 7350 HiTorque Mini Lathe - 7x16
Micro-Mark 84631 MicroLux Mini Lathe - 7x16
86  Micro-Mark 82710 MicroLux Mini Lathe - 7x14
86A  Enco 110-0803 Enco Mini Lathe - 7x10
Harbor Freight 93212 Central Machinery Mini Lathe - 7x10
Harbor Freight 33684 Central Machinery Mini Lathe - 7x10
MSC 0192857 Enco Mini Lathe - 7x10
BusyBee CX704 Craftex Mini Lathe - 7x12
Grizzly G8688 Grizzly Mini Lathe - 7x12
Harbor Freight 93799 Central Machinery Mini Lathe - 7x12
Homier 03911 Speedway Mini Lathe - 7x12
Micro-Mark 82500 MicroLux Mini Lathe - 7x12
Northern Tool 49656 KLUTCH Mini Lathe - 7x12
Cummins 5278 Cummins Mini Lathe - 7x12
Tormach 30689 Tormach Lathe, Duality CNC
Various C2-US SIEG Mini Lathe
WEN 3455 WEN Mini Lathe - 7x12
Princess Auto 8507659 Powerfist Mini Lathe - 7x12
Travers Tools OT222300 OTMT Mini Lathe - 7x12
Eastwood 32497 Mini Lathe - 7x12
LittleMachineShop.com 1012 LittleMachineShop.com Mini Lathe - 7x12
LittleMachineShop.com 1014 LittleMachineShop.com Mini Lathe - 7x14
LittleMachineShop.com 4959 SIEG Mini Lathe - 7x14 (C3)
Various C3-US SIEG Mini Lathe - 7x14
Click your model to see the complete parts list.
