Vise, 2" Screwless

Precision ground and hardened
Rapid positioning notches
Ground v-way in sliding jaw
Overall length is 5.32"

Part Number: 1591
Weight: 3.60 lb

Price: $54.95

Share this page:
http://lmscnc.com/1591

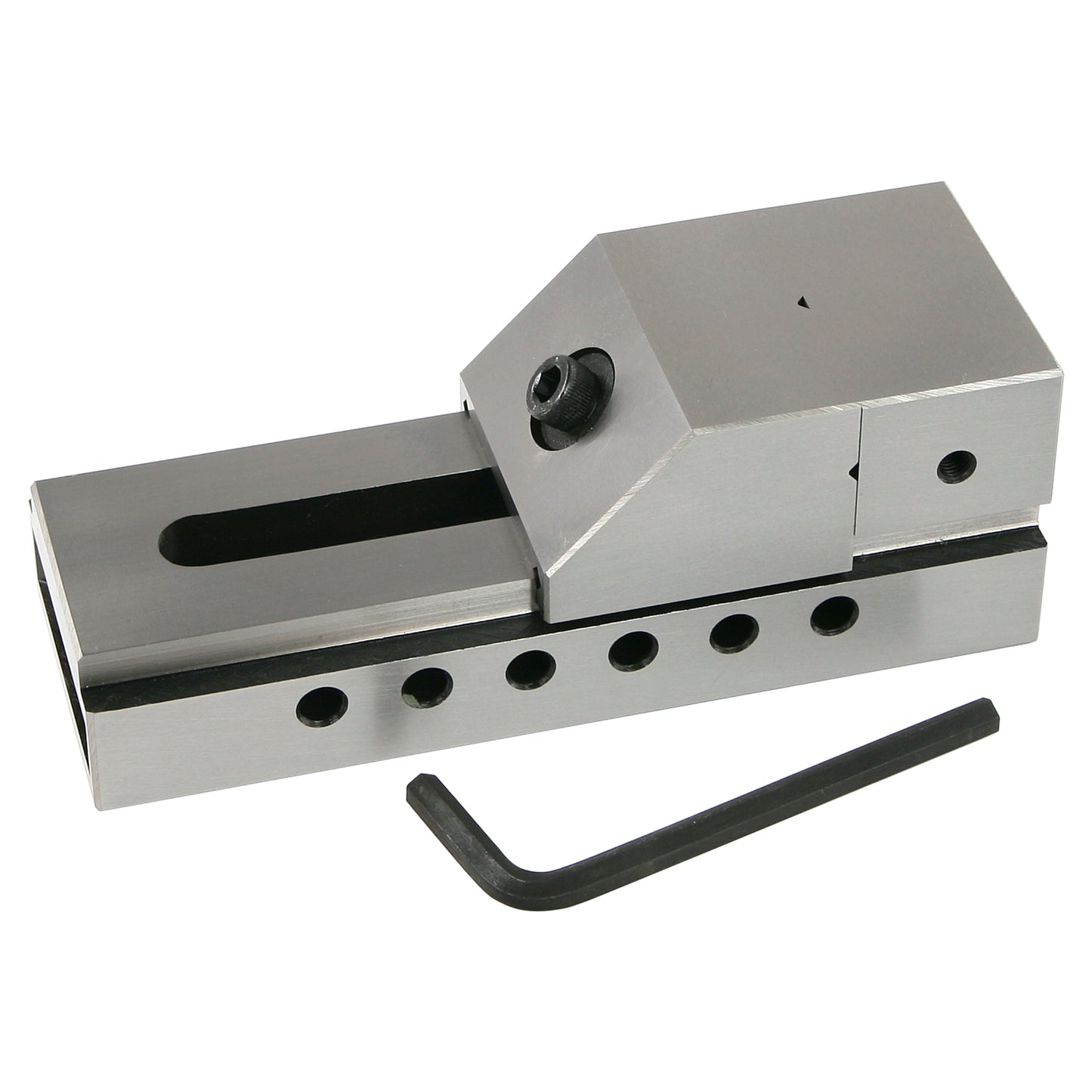

This high precision toolmakers screwless vise has a one-piece body. The body and jaws are hardened to Rc 58-62. All sides are flat, square, and parallel to 0.0005". There are horizontal and vertical vees on the inside face of the movable jaw to hold round objects.

The jaws are 25 mm (0.98") deep and open to 61 mm (2.39").

The vise is 135 mm (5.32") long x 50 mm (1.97") wide x 50 mm (1.97") high.

Chris' Tips

Chris' Tips
You can use your clamping kit to secure this vise using the slots in the ends, but we recommend that you make a couple of clamping blocks to secure the vise across the table.

Take a look at our vise comparison page before you choose a vise.

Specifications

Specifications
Jaw Depth	0.98" (25.0 mm)
Maximum Jaw Opening	2.40" (61.0 mm)
Weight	3.6 lbs (1.6 kg)
Height with Out Base	1.97" (50.0 mm)
Length	5.31" (135.0 mm)
Width with Out Base	1.97" (50.0 mm)

Compatibility

Compatibility

This product works with these LittleMachineShop.com products:

This product works with the following mills. (If your machine is not on this list, we cannot verify compatibility.)

Proxxon FF 230 Micro Mill
Sherline 5000 Mill
Sherline 5800 Mill
Sherline 2000 Mill
Sherline 5400 Mill
Taig 2018 Micro Mill
Taig 2019 Micro Mill
Taig 5019 Micro Mill
Prazi BF400 Mill
Prazi BF450 Mill
Clarke CMD10 Metalworker Micro Mill
Harbor Freight 47158 Central Machinery Micro Mill
SIEG X1 Micro Mill
SIEG SX1 Micro Mill
LittleMachineShop.com 4660 HiTorque Micro Mill
LittleMachineShop.com 4700 HiTorque Micro Mill
SIEG SX1P Micro Mill
