Vise, 2" Screwless
Vise, 2" Screwless
SKU:1591
Low stock
Couldn't load pickup availability
Key Features
Key Features
- Precision ground and hardened
- Rapid positioning notches
- Ground v-way in sliding jaw
- Overall length is 5.32"
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

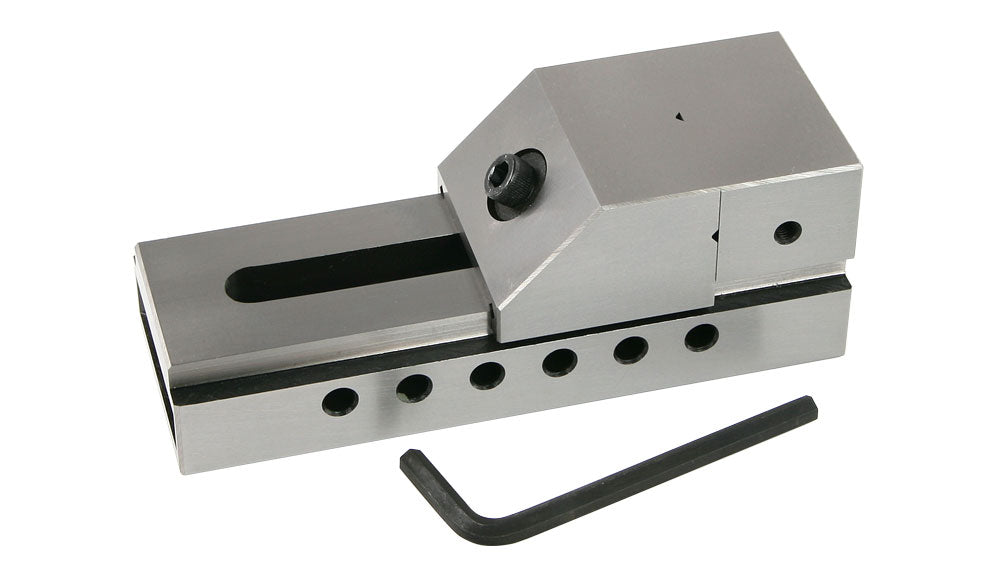

This high precision toolmakers screwless vise has a one-piece body. The body and jaws are hardened to Rc 58-62. All sides are flat, square, and parallel to 0.0005". There are horizontal and vertical vees on the inside face of the movable jaw to hold round objects.
The jaws are 25 mm (0.98") deep and open to 61 mm (2.39").

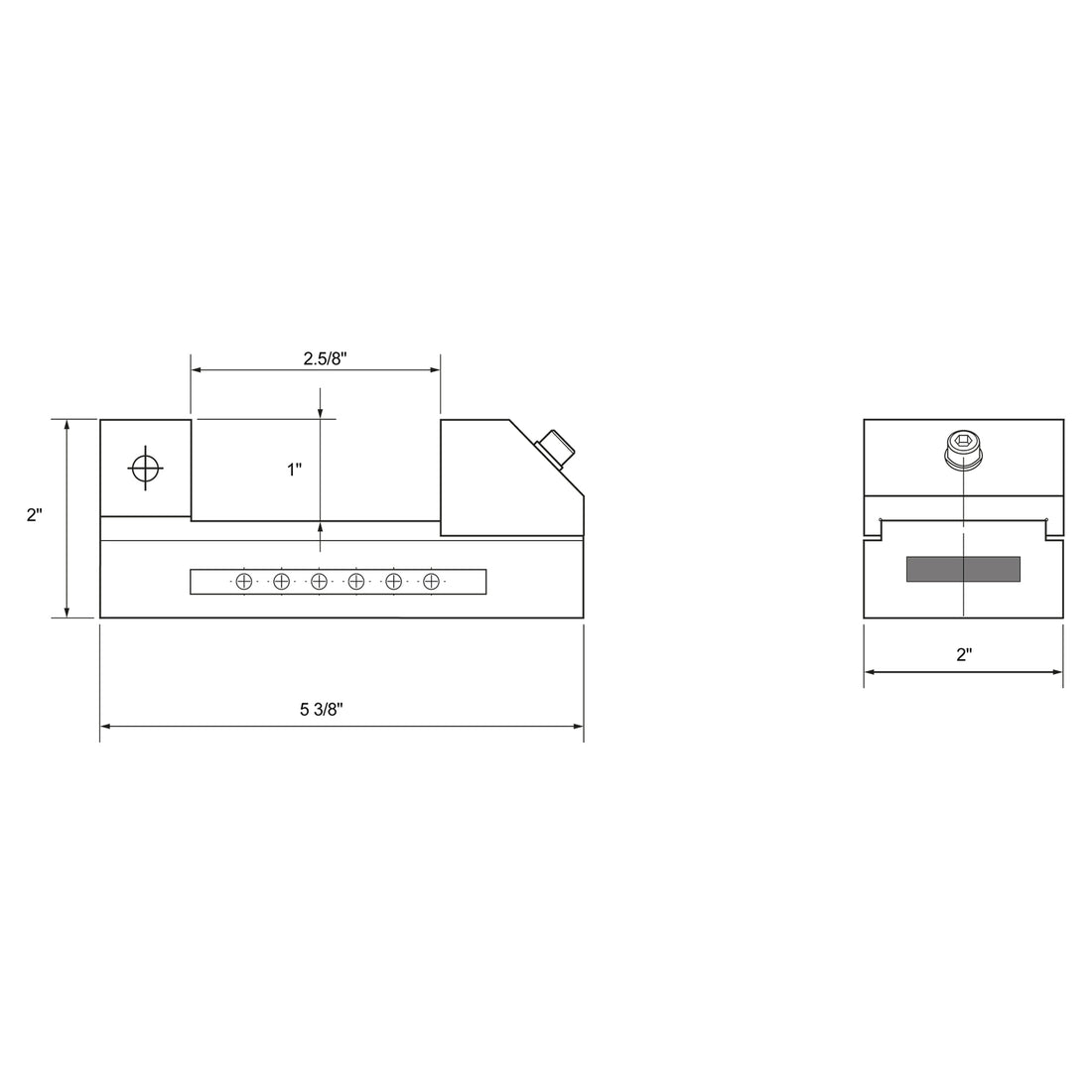

The vise is 135 mm (5.32") long x 50 mm (1.97") wide x 50 mm (1.97") high.
Chris's Tips
You can use your clamping kit to secure this vise using the slots in the ends, but we recommend that you make a couple of clamping blocks to secure the vise across the table.
Take a look at our vise comparison page before you choose a vise.
Specifications
Jaw Depth: 0.984" (25 mm)
Maximum Jaw Opening: 2.402" (61 mm)
Weight: 3.6 lbs (2 kg)
Height with Out Base: 1.969" (50 mm)
Length: 5.315" (135 mm)
Width with Out Base: 1.969" (50 mm)
