Turning Tools, 3/8" Indexable, Triangle Inserts
- 5 piece set of lathe turning tools
- 3/8" square shank
- Extra screws included
- Two wrenches
- TCMT21.51 carbide inserts
Part Number: 1669
Weight: 0.69 lb
Weight: 0.69 lb
Price: $34.95
Share this page:
http://lmscnc.com/1669
http://lmscnc.com/1669

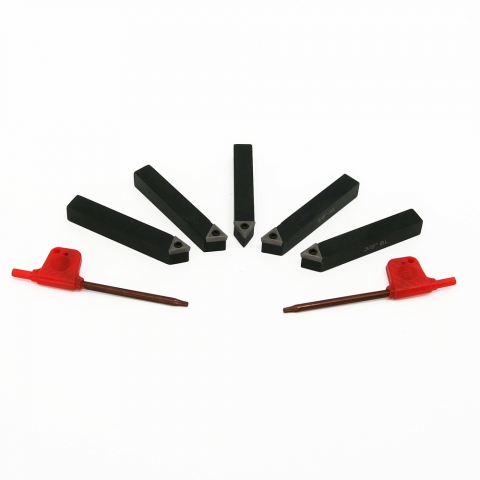

This set of indexable turning tools includes 5 indexable tools (AR, AL, BR, BL, E), inserts, a wrench, and extra screws. It comes in a wooden case.

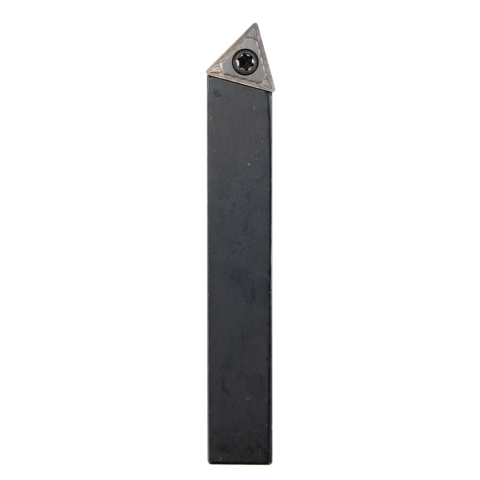

Style AR right hand tool

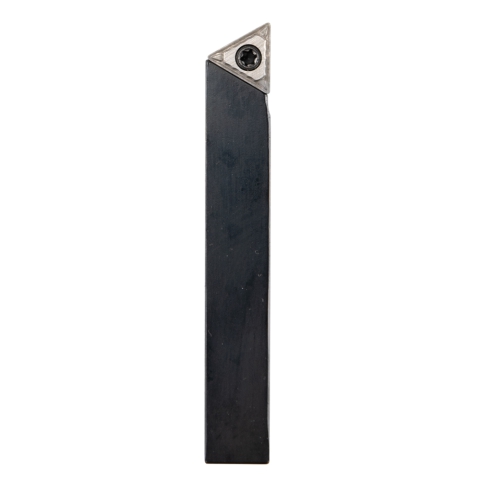

Style BR right hand tool with a 15° lead angle

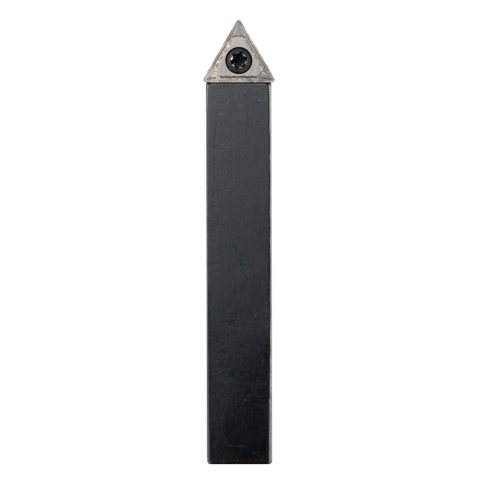

Style E Neutral threading tool with 60° included angle

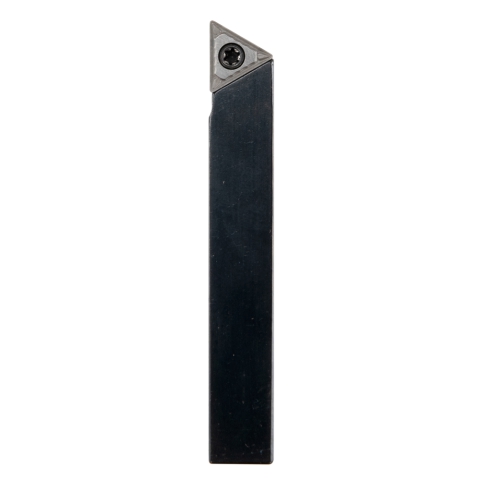

Style BL left hand tool with a 15° lead angle

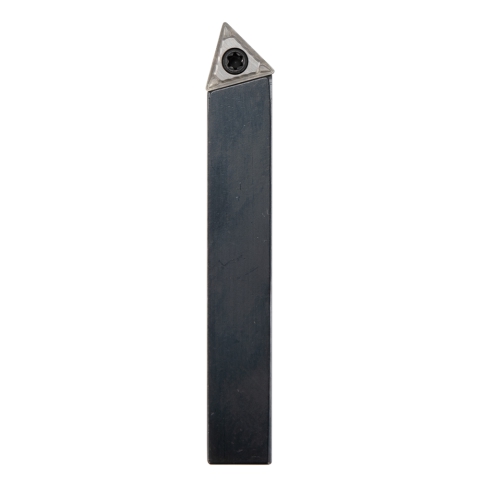

Style AL left hand tool
The carbide inserts are TCMT-21.51.
Chris' TipsOur chart of indexable inserts shows which inserts and which screw to use with each of our indexable tools.
 |
Style AL left hand tool |
 |
Style AR right hand tool |
 |
Style E Neutral threading tool with 60 degree included angle |
 |
Style BL left hand tool with a 15 degree lead angle |
 |
Style BR right hand tool with a 15 degree lead angle |
Compatibility
This product works with these LittleMachineShop.com products:
- 3416 Insert, TCMT-21.50 Carbide
- 1670 Insert, TCMT-21.51 Carbide
- 3417 Insert, TCMT-21.52 Carbide
- 1724 Insert, TCMW-21.51 HSS
- 2696 Screw, Insert Retaining, M2.5x6
- 5551 Torx Wrench, T-8
- 4843 Torx Wrench, T-8, Wiha
This product works with lathes with a 0.375 to 0.5 inch tool bit size including:
- Harbor Freight 44859 Central Machinery 8x12 Precision Mini Lathe
- Grizzly G0768 8x16 Benchtop Lathe
- LittleMachineShop.com 3536 HiTorque 8.5x16 Bench Lathe
- SIEG C4 8.5x16 Bench Lathe
- SIEG SC4 8.5x16 Bench Lathe
- Travers Tools OT218410 OTMT 8x16 Bench Lathe
- LittleMachineShop.com 3540 HiTorque 8.5x20 Bench Lathe
- LittleMachineShop.com 3595 HiTorque 8.5x20 Deluxe Bench Lathe
- LittleMachineShop.com 7500 HiTorque 8.5x20 Bench Lathe
- LittleMachineShop.com 7550 HiTorque 8.5x20 Deluxe Bench Lathe
- BD-920N Jet 9x20 Lathe
- Grizzly G4000 9x19 Bench Lathe
- Harbor Freight 45861 Central Machinery 9x20 Bench Lathe
- Busy Bee Tools CX705 Craftex 10x21 Lathe Mill Combo
- Grizzly G0516 10x21 Lathe Mill Combo
- SIEG M6 10x21 Lathe Mill Combo
