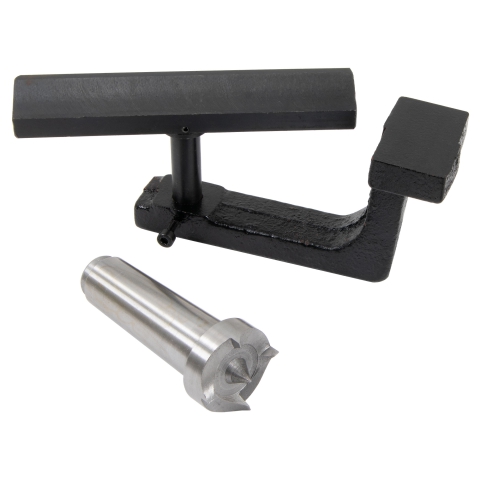

Wood Turning Tool Rest and Center, Mini & Bench Lathe

Wood Turning Tool Rest and Center, Mini & Bench Lathe
  • Turn wood on a metal lathe
  • Includes woodturning tool rest and spur center
  • Fits several SIEG mini lathes classes from C2 to SC4
  • Fit LittleMachineShop.com HiTorque mini lathes and bench lathes
Part Number: 1685
Weight: 2.40 lb

Price: $65.95

In stock
Quantity:

The wood turning tool rest clamps into a standard tool post so you can turn wood on your mini lathe or bench lathe. The tool rest height can be adjusted and it can rotate 360 degrees.The spur center fits in the lathe spindle with a #3 Morse taper. Mount the tool in a standard tool post by securing the shelf with the three set screws on the tool post. The spur center secures directly in the spindle with the chuck removed.
Chris Chris' Tips
The wood turning tool rest clamps into a standard tool post. Install tool rest in tool post as shown. Tighten cap screws securely.

The spur center fits in the lathe spindle. The spindle must be a #3 Morse taper for proper fit.


Specifications
Overall Length (Including Tool Rest) 6.75" (171.4 mm)
Length (Tool Post to Center of Rest) 3.62" (92.1 mm)
Tool Rest Length 5.25" (133.3 mm)
Tool Rest Height (Thickest Side) 0.625" (15.88 mm)
Tool Rest Depth 0.75" (19.0 mm)
Spur Center Overall Length 3.50" (88.9 mm)
Spur Center Taper #3 Morse Taper
"Wood Turning Tool Rest and Center M4 set screw and tool rest post
"Wood Turning Tool Rest and Center Mounted on a standard tool post
"Wood Turning Tool Rest and Center Securely mounted with tool post

Compatibility

This product works with the following lathes. (If your machine is not on this list, we cannot verify compatibility.)

  •   Enco 110-0803 Enco 7x10 Mini Lathe
  •   Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
  •   Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
  •   MSC 0192857 Enco 7x10 Mini Lathe
  •   Bolton CQ9318 7x12 Mini Lathe
  •   Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
  •   Cummins (Tools Now) 5278 7x12 Mini Lathe
  •   Eastwood 32497 7x12 Mini Lathe
  •   Grizzly G8688 7x12 Mini Metal Lathe
  •   Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
  •   Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
  •   LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
  •   LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
  •   Northern Tool 49656 KLUTCH 7x12 Mini Lathe
  •   Princess Auto 8507659 Powerfist 7x12 Mini Lathe
  •   SIEG C2 7x12 Mini Lathe
  •   Tormach 30689 7x12 Duality Lathe
  •   Travers Tools OT222300 OTMT 7x12 Mini Lathe
  •   Warco 3005 7x12 Mini Lathe (Imperial)
  •   Warco 3004 7x12 Mini Lathe (Metric)
  •   WEN 3455 WEN 7x12 Mini Lathe
  •   Micro-Mark 82500 MicroLux 7x12 Mini Lathe
  •   LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
  •   LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
  •   SIEG SC2 7x12 Mini Lathe
  •   Micro-Mark 82710 MicroLux 7x14 Mini Lathe
  •   LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
  •   SIEG C3 7x14 Mini Lathe
  •   Big Dog BD-0618Ax300 7x14 Mini Lathe
  •   Big Dog BD-0618x300 7x14 Mini Lathe
  •   Warco 4820-350 7x14 Mini Lathe (Metric)
  •   Warco 4800-350 7x14 Mini Lathe (Imperial)
  •   Grizzly G0765 7x14 Mini Lathe
  •   Micro-Mark 84631 MicroLux 7x16 Mini Lathe
  •   LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
  •   LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
  •   LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
  •   LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
  •   LittleMachineShop.com 3536 HiTorque 8.5x16 Bench Lathe
  •   SIEG SC4 8.5x16 Bench Lathe
  •   SIEG C4 8.5x16 Bench Lathe
  •   Travers Tools OT218410 OTMT 8x16 Bench Lathe
  •   LittleMachineShop.com 7500 HiTorque 8.5x20 Bench Lathe
  •   LittleMachineShop.com 7550 HiTorque 8.5x20 Deluxe Bench Lathe
  •   LittleMachineShop.com 3540 HiTorque 8.5x20 Bench Lathe
  •   LittleMachineShop.com 3595 HiTorque 8.5x20 Deluxe Bench Lathe
