Wood Turning Tool Rest and Center, Mini & Bench Lathe

Wood Turning Tool Rest and Center, Mini & Bench Lathe

1685

$65.95 USD
$65.95 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Key Features

  • Turn wood on a metal lathe
  • Includes woodturning tool rest and spur center
  • Fits several SIEG mini lathes classes from C2 to SC4
  • Fit LittleMachineShop.com HiTorque mini lathes and bench lathes
  • Fits #3 Morse Taper Spindle

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

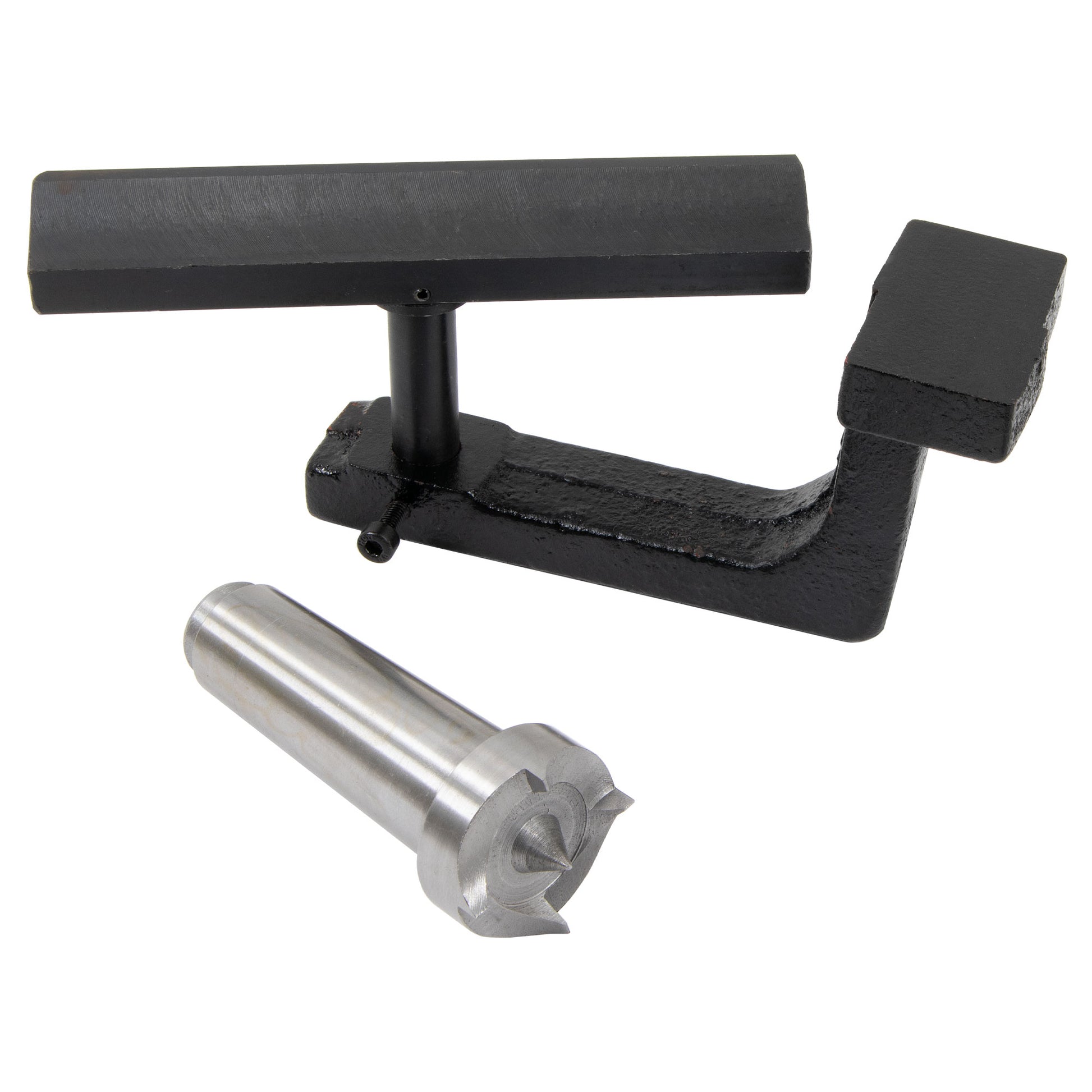

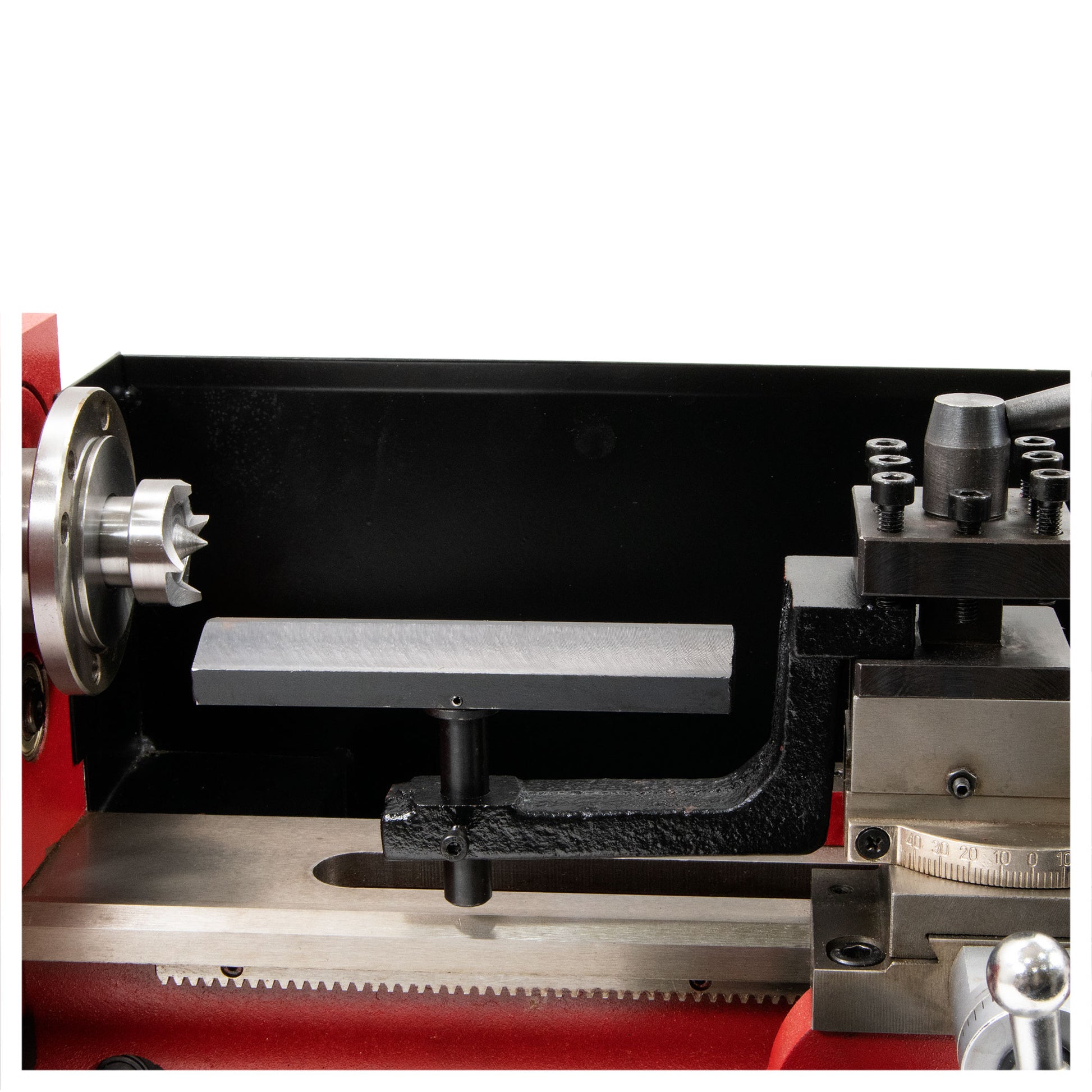

The wood turning tool rest clamps into a standard tool post so you can turn wood on your mini lathe or bench lathe. The tool rest height can be adjusted and it can rotate 360 degrees. The spur center fits in the lathe spindle with a #3 Morse taper. Mount the tool in a standard tool post by securing the shelf with the three set screws on the tool post. The spur center secures directly in the spindle with the chuck removed.

Chris's Tips

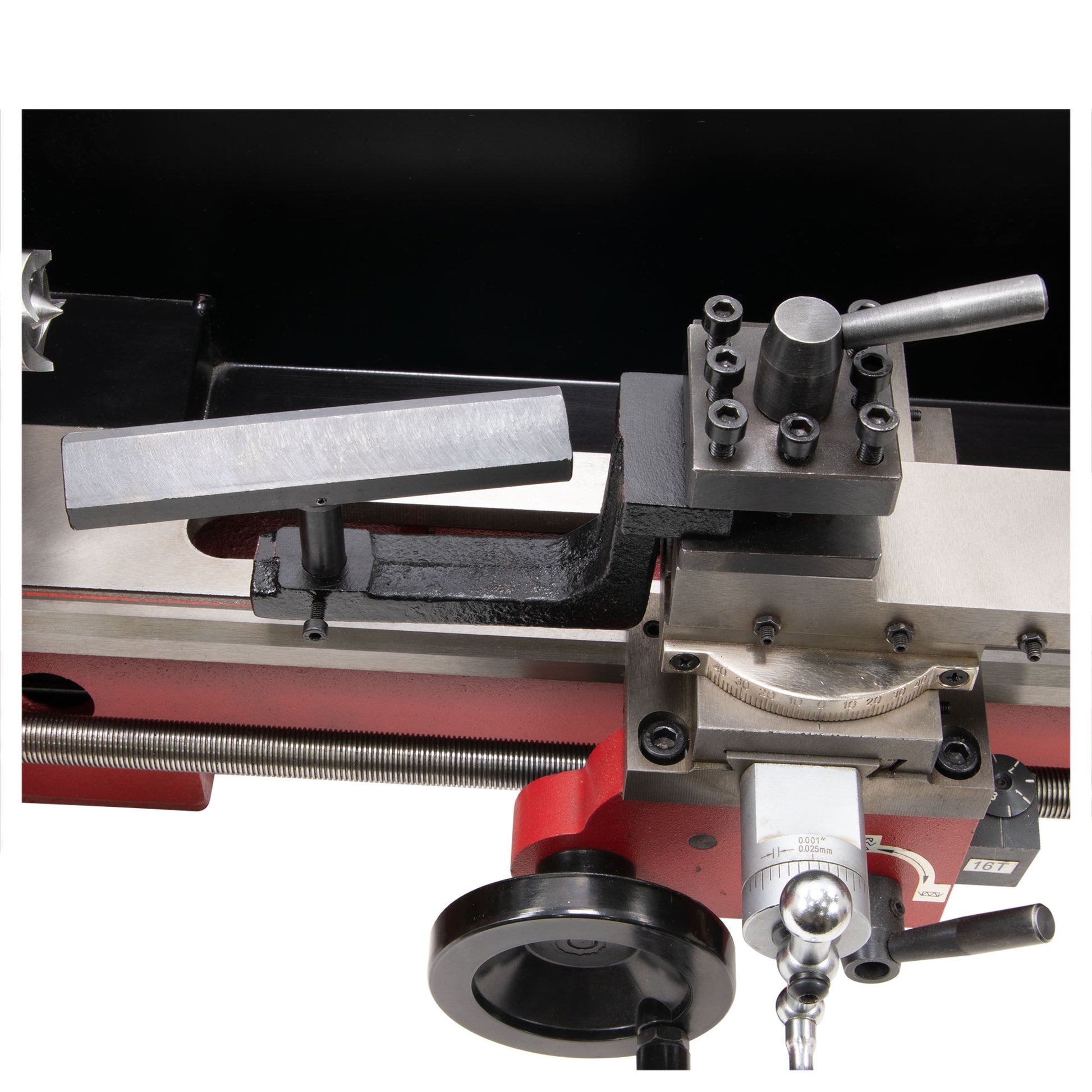

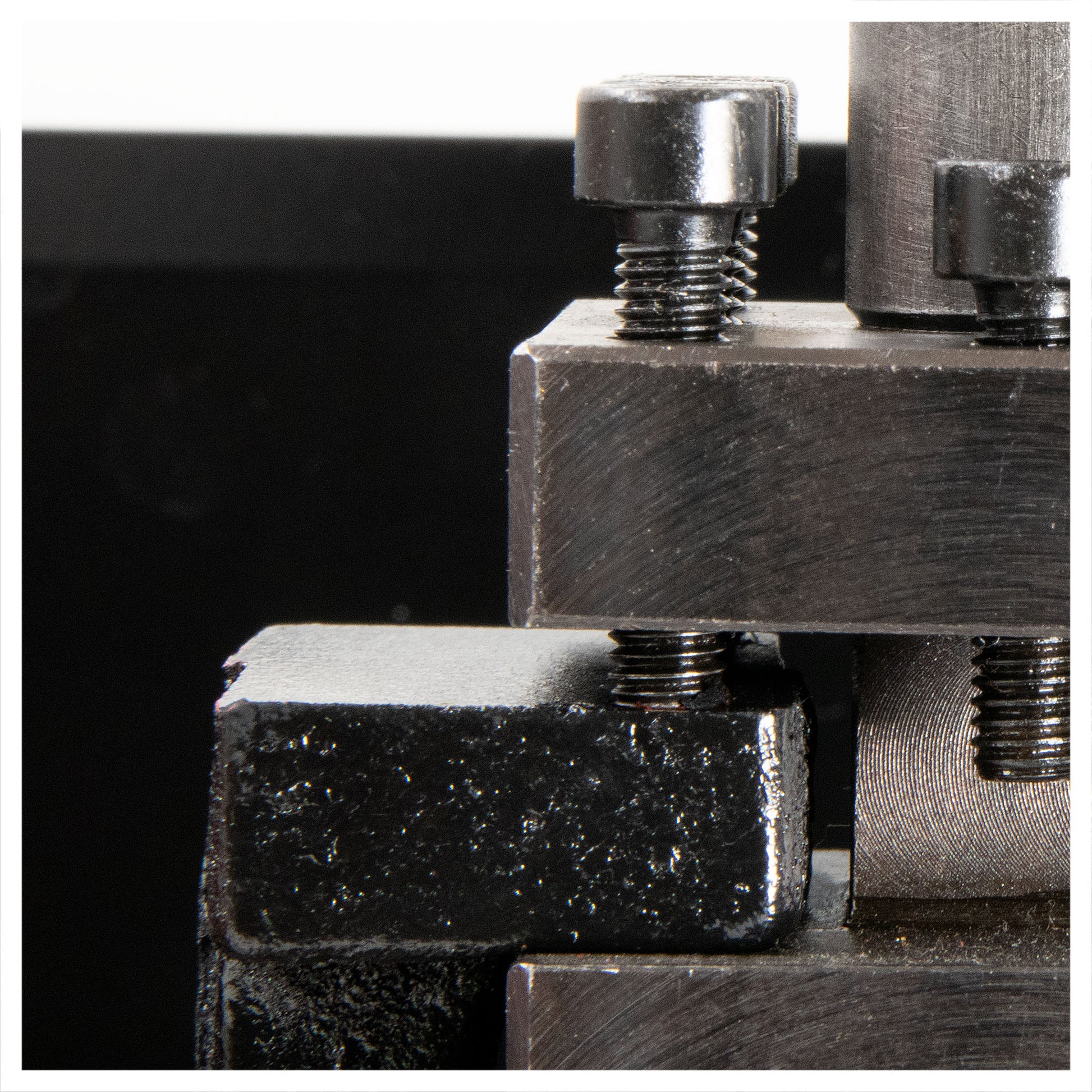

The wood turning tool rest clamps into a standard tool post. Install tool rest in tool post as shown. Tighten cap screws securely.

The spur center fits in the lathe spindle. The spindle must be a #3 Morse taper for proper fit.

Wood Turning Tool

Specifications

Overall Length (Including Tool Rest): 6.75" (171.450 mm)

Length (Tool Post to Center of Rest): 3.6250" (92.075 mm)

Tool Rest Length: 5.25" (133.350 mm)

Tool Rest Height (Thickest Side): 0.6250" (15.875 mm)

Tool Rest Depth: 0.75" (19.050 mm)

Spur Center Overall Length: 3.5" (88.900 mm)

Spur Center Taper: #3 Morse Taper

Product Compatibility

This product was designed for machines manufactured by SIEG, including those listed below. We have added compatibility for other non-SIEG machines when a “fit” can be verified.

If your machine is not listed, we cannot verify compatibility but encourage you to contact us. With additional information we may be able to help you find a solution.

  • Bolton CQ9318 7x12 Mini Lathe
  • Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
  • Cummins (Tools Now) 5278 7x12 Mini Lathe
  • Eastwood 32497 7x12 Mini Lathe
  • Grizzly G8688 7x12 Mini Metal Lathe
  • Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
  • Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
  • LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
  • LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
  • Northern Tool 49656 KLUTCH 7x12 Mini Lathe
  • Princess Auto 8507659 Powerfist 7x12 Mini Lathe
  • SIEG C2 7x12 Mini Lathe
  • Tormach 30689 7x12 Duality Lathe
  • Travers Tools OT222300 OTMT 7x12 Mini Lathe
  • Warco 3005 7x12 Mini Lathe (Imperial)
  • Warco 3004 7x12 Mini Lathe (Metric)
  • WEN 3455 WEN 7x12 Mini Lathe
  • Micro-Mark 82500 MicroLux 7x12 Mini Lathe
  • LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
  • LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
  • SIEG SC2 7x12 Mini Lathe
  • Micro-Mark 82710 MicroLux 7x14 Mini Lathe
  • LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
  • SIEG C3 7x14 Mini Lathe
  • Big Dog BD-0618Ax300 7x14 Mini Lathe
  • Big Dog BD-0618x300 7x14 Mini Lathe
  • Warco 4820-350 7x14 Mini Lathe (Metric)
  • Warco 4800-350 7x14 Mini Lathe (Imperial)
  • Grizzly G0765 7x14 Mini Lathe
  • Micro-Mark 84631 MicroLux 7x16 Mini Lathe
  • LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
  • LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
  • LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
  • LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
  • LittleMachineShop.com 3536 HiTorque 8.5x16 Bench Lathe
  • SIEG C4 8.5x16 Bench Lathe
  • SIEG SC4 8.5x16 Bench Lathe
  • Travers Tools OT218410 OTMT 8x16 Bench Lathe
  • LittleMachineShop.com 3540 HiTorque 8.5x20 Bench Lathe
  • LittleMachineShop.com 3595 HiTorque 8.5x20 Deluxe Bench Lathe
  • LittleMachineShop.com 7500 HiTorque 8.5x20 Bench Lathe
  • LittleMachineShop.com 7550 HiTorque 8.5x20 Deluxe Bench Lathe
