Compound Rest Bottom, Mini Lathe, 20 TPI

Pre-drilled compound rest bottom, mini lathe, 20 TPI
For 20 TPI lathes that advance 0.050" per revolution per revolution
Use with dial having 50 divisions
Fits Micro-Mark mini lathes
Fits HiTorque 4200 mini lathe

Part Number: 1993
Weight: 1.15 lb

Price: $16.95

Share this page:
http://lmscnc.com/1993

Description

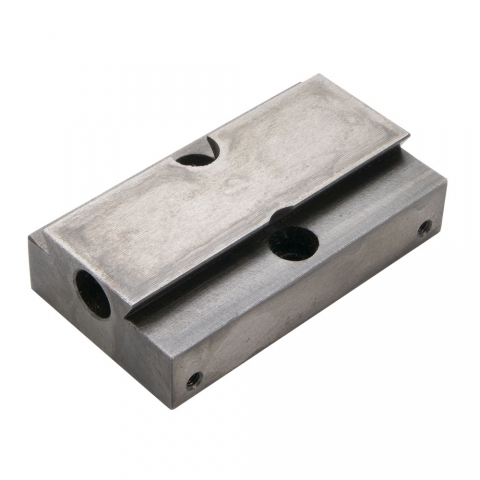

This is the bottom half of the compound rest on the mini lathe.

The thread is 20 TPI so the compound advances 0.050" per revolution. Use with a dial that has 50 divisions.

See compatibility tab for reference to machines or other related products that use this product. See Used On tab for reference to machines using this part and the corresponding drawing number.

Chris' Tips

Chris' Tips
J. W. Early suggests that you machine 0.25" off the bottom of this part. He also suggests that you move the toolpost pivot point. This allows you to use several different adjustable tool posts more effectively. Click here to see a sketch of it.

For a compound with the pivot point already moved, see our modified compound rest bottom.

Compatibility

Compatibility

This product works with these LittleMachineShop.com products:

2383 Feed Screw Parts, 20 TPI, Mini Lathe

Used On

In your instruction manual, this part appears on the parts list as:

Item No	Models
105	Micro-Mark 82500 MicroLux Mini Lathe - 7x12 Micro-Mark 82710 MicroLux Mini Lathe - 7x14
75	LittleMachineShop.com 4200 HiTorque Mini Lathe - 7x12 Micro-Mark 84631 MicroLux Mini Lathe - 7x16

Click your model to see the complete parts list.
