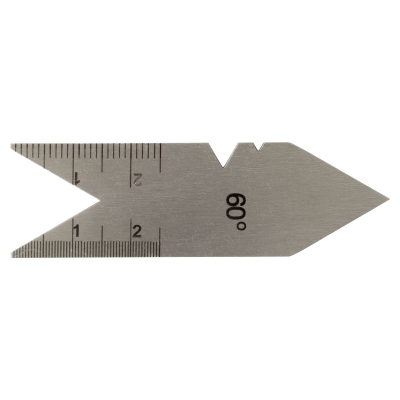

Center Gage, 60 Degree

Made of high quality steel
Satin chrome finish
Use for grinding and setting thread cutting tools
Gaging surfaces are precision ground

Part Number: 2743
Weight: 0.02 lb

Price: $13.95

This product is currently backordered.

Estimated availability:
08-Oct-2023
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.

Share this page:
http://lmscnc.com/2743

Description

Used for grinding and setting screw cutting tools. Scales with 14ths and 20ths graduations provided on one side, 24ths and 32nds on reverse side. Scales are used to determine number of threads per inch. Gage also features a table of double depths of thread for selecting size of tap drills. Made of hardened spring tempered steel, with a protective satin chrome finish. All gaging surfaces are precision ground.

Chris' Tips

Chris' Tips
This photo shows how to align a threading tool using the thread gage. You also use the thread gage to check the angle on the threading tool bit.

Have you ever wondered what the numbers on a center gage are for? Here is more information than you wanted.

Photos

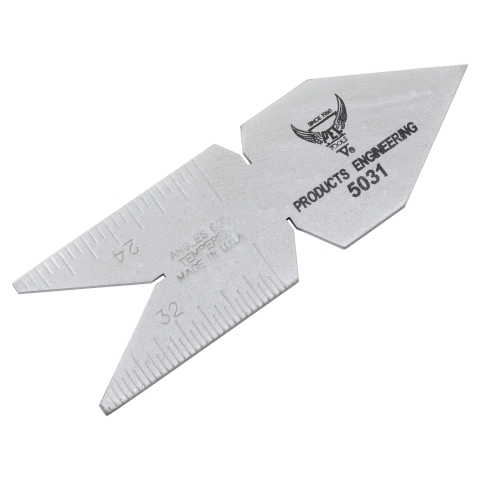

Reverse View
