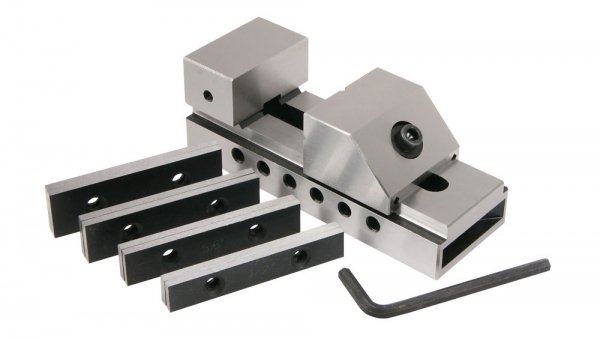

Vise, 2" Screwless with 3" Thin Parallels

Vise, 2" Screwless with 3" Thin Parallels
  • High prescision 2" wide screwless vise
  • 4 pairs of 3:" long thin parallels
  • Vise is precision ground and hardened
  • Jaw opening capacity is 2.39" (61 mm)
Part Number: 3769
Weight: 4.25 lb

Price: $74.95

In stock
Quantity:

This high precision toolmakers screwless vise has a one-piece body. The body and jaws are hardened to Rc 58-62. All sides are flat, square, and parallel to 0.0002". There are horizontal and vertical vees on the inside face of the movable jaw to hold round objects.

The jaws are 25 mm (0.98") deep and open to 61 mm (2.39").

The vise is 135 mm (5.32") long x 50 mm (1.97") wide x 50 mm (1.97") high.

The thin parallels are 5/32" thick and 3" long. The heights are 1/2", 5/8", 3/4", and 7/8".

Chris Chris' Tips
You can use your clamping kit to secure this vise using the slots in the ends, but we recommend that you make a couple of clamping blocks to secure the vise across the table.

Take a look at our vise comparison page before you choose a vise.

This product contains the following items:
  Description Qty
Thin Parallels, 3" Long, 4 Pairs Thin Parallels, 3" Long, 4 Pairs, P/N 2924 1
Vise, 2" Screwless Vise, 2" Screwless, P/N 1591 1

Compatibility

This product works with the following mills. (If your machine is not on this list, check with us before ordering.)

  •   Proxxon FF 230 Micro Mill
  •   Sherline 5000 Mill
  •   Sherline 5400 Mill
  •   Sherline 2000 Mill
  •   Sherline 5800 Mill
  •   Taig 2018 Micro Mill
  •   Taig 2019 Micro Mill
  •   Taig 5019 Micro Mill
  •   Prazi BF400 Mill
  •   Prazi BF450 Mill
  •   Clarke CMD10 Metalworker Micro Mill
  •   Harbor Freight 47158 Central Machinery Micro Mill
  •   SIEG X1 Micro Mill
  •   SIEG SX1 Micro Mill
  •   LittleMachineShop.com 4660 HiTorque Micro Mill
  •   LittleMachineShop.com 4700 HiTorque Micro Mill
  •   SIEG SX1P Micro Mill
  •   Grizzly G0758 Mill/Drill
  •   Bolton XJ-9510 Mill/Drill
  •   Clarke CMD300 Milling Drilling Machine
  •   Grizzly G8689 Mini Milling Machine
  •   Hare & Forbes HM-10 Mill/Drill
  •   Princess Auto 8507667 Powerfist Mini Mill
  •   SIEG X2-MT3 Mini Mill
  •   Micro-Mark 82573 MicroLux Milling Machine
