Compound Rest Top, for AXA QCTP on C6 Lathe CLOSEOUT

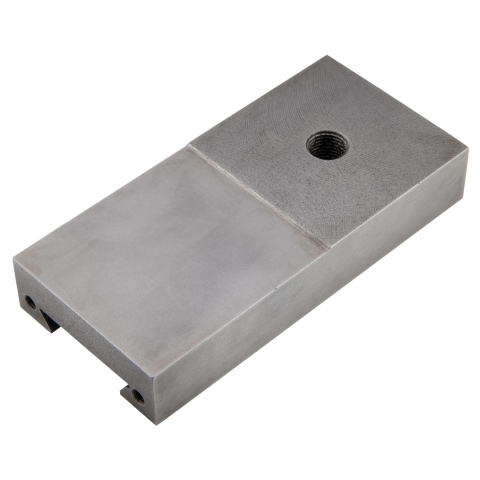

Compound rest top
Mount AXA quick change tool post to SIEG C6/SC6 lathes
Fits Grizzly G0516 Combo Lathe
Threaded 9/16"-18

Part Number: 3787
Weight: 2.40 lb

$29.95 On Sale

Regularly $39.95

This product is currently backordered.

Estimated availability:
16-Apr-2024
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.

Share this page:
http://lmscnc.com/3787

Description

This compound rest top is specially modified to mount the AXA quick change tool post on a SIEG C6/SC6 or Grizzly G0516 lathe.

The two tapped holes that secure the feed screw retainer must be match drilled and tapped in this part. Things come this way from the factory when they do the process during assembly. I'm sure they do it with a hand-held drill.

Specifications

Specifications
Overall Length	5.31" (135.0 mm)
Length Raised Section	2.48" (63.0 mm)
Width	2.56" (65.0 mm)
Height	0.91" (23.0 mm)
Bottom Dovetail Narrowest Point	1.26" (32.0 mm)
Bottom Dovetail Widest Point	1.57" (40.0 mm)

Photos

	reverse view

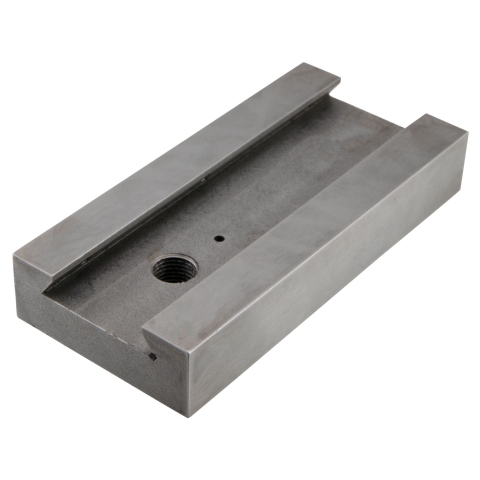

	underneath view

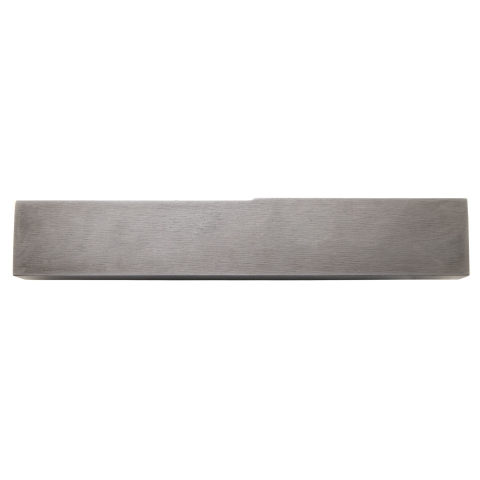

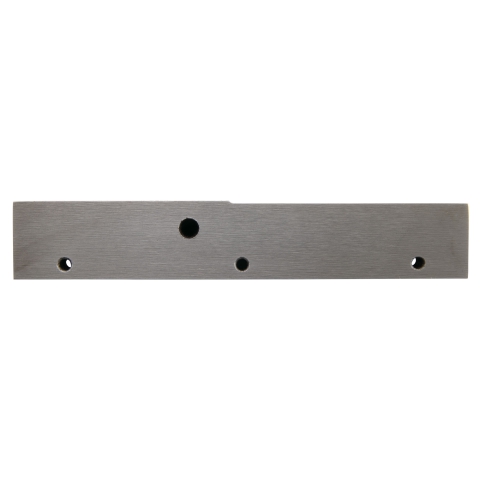

	side view
	side view

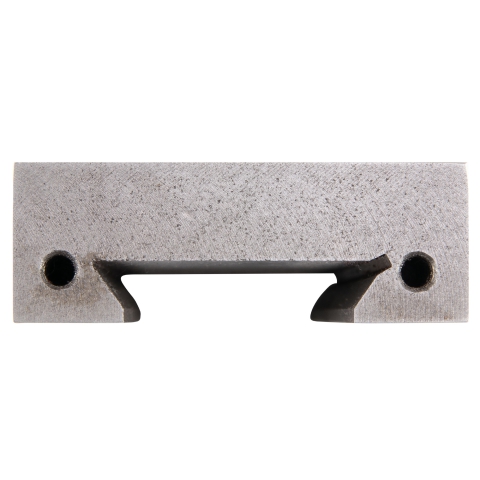

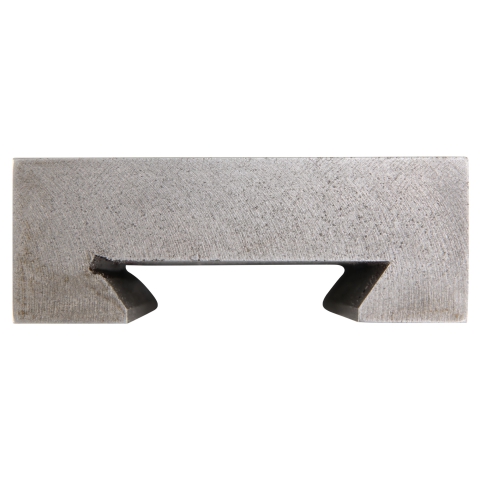

	end view
	end view

Compatibility

Compatibility

This product works with these LittleMachineShop.com products:

2280 Quick Change Tool Post Set, AXA
