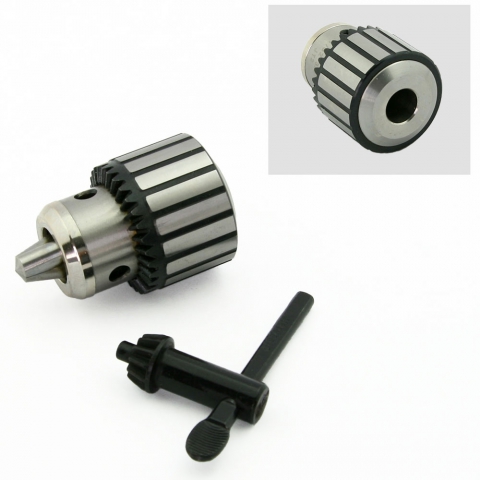

Drill Chuck, 3/8" Professional Grade
- Precision made with the highest TIR
- Designed for heavy duty jobs
- Key included
- Capacity: 1/32" - 3/8"
- Mounts to 2 Jacobs taper arbor
Part Number: 4862
Weight: 0.80 lb
Weight: 0.80 lb
Price: $26.95
Share this page:
http://lmscnc.com/4862
http://lmscnc.com/4862
1/32" - 3/8" Capacity professional grade drill chuck. Designed for heavy jobs; all working parts are hardened and manufactured to the highest standards for durability and straight alignment.
This chuck is comparable to a Jacobs 34-33 heavy-duty drill chuck, including the runout specification of 0.004" (0.10 mm) or less. Chuck key is included.
Chris' Tips| Capacity | 0.04" - 0.39" (1.0 mm - 10.0 mm) |
| Maximum Runout | 0.004" (0.10 mm) |
| Mount | 2 Jacobs Taper |
Compatibility
This product works with these LittleMachineShop.com products:
- 3544 Arbor, Drill Chuck 0MT Standard to 2JT
- 1778 Arbor, Drill Chuck 1MT Tang to 2JT
- 2070 Arbor, Drill Chuck 2MT Drawbar (metric) to 2JT
- 1882 Arbor, Drill Chuck 2MT Drawbar to 2JT
- 1803 Arbor, Drill Chuck 2MT Short to 2JT
- 1167 Arbor, Drill Chuck 2MT Tang to 2JT
- 2298 Arbor, Drill Chuck 3/8" Straight to 2JT
- 1805 Arbor, Drill Chuck 3MT Drawbar to 2JT
- 1191 Arbor, Drill Chuck 3MT Tang to 2JT
- 3999 Arbor, Drill Chuck R8 to 2JT
- 5445 Arbor, Drill Chuck R8 to 2JT, Professional Grade
- 2453 Arbor, Drill Chuck, Tormach TTS to 2JT
This product works with lathes with a 5 to 8 inch swing including:
- Grizzly M1015 Shop Fox 6x10 Micro Lathe
- Micro-Mark 85181 MicroLux 6x10 Micro Lathe
- SIEG C1 6x10 Micro Lathe
- Woodstock International M1015 Shop Fox 6x10 Micro Lathe
- Emco Compact 5 5x14 Lathe
- Prazi SD300 5x12 Lathe
- Craftsman & Atlas 612 6x18 Lathe
- Enco 110-0803 Enco 7x10 Mini Lathe
- Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
- Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
- MSC 0192857 Enco 7x10 Mini Lathe
- Bolton CQ9318 7x12 Mini Lathe
- Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
- Cummins (Tools Now) 5278 7x12 Mini Lathe
- Eastwood 32497 7x12 Mini Lathe
- Grizzly G8688 7x12 Mini Metal Lathe
- Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
- Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
- LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
- LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
- Northern Tool 49656 KLUTCH 7x12 Mini Lathe
- Princess Auto 8507659 Powerfist 7x12 Mini Lathe
- SIEG C2 7x12 Mini Lathe
- Tormach 30689 7x12 Duality Lathe
- Travers Tools OT222300 OTMT 7x12 Mini Lathe
- Warco 3004 7x12 Mini Lathe (Metric)
- Warco 3005 7x12 Mini Lathe (Imperial)
- WEN 3455 WEN 7x12 Mini Lathe
- Micro-Mark 82500 MicroLux 7x12 Mini Lathe
- LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
- LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
- SIEG SC2 7x12 Mini Lathe
- Micro-Mark 82710 MicroLux 7x14 Mini Lathe
- LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
- SIEG C3 7x14 Mini Lathe
- Big Dog BD-0618Ax300 7x14 Mini Lathe
- Big Dog BD-0618x300 7x14 Mini Lathe
- Warco 4820-350 7x14 Mini Lathe (Metric)
- Warco 4800-350 7x14 Mini Lathe (Imperial)
- Grizzly G0765 7x14 Mini Lathe
- Micro-Mark 84631 MicroLux 7x16 Mini Lathe
- LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
- Prazi SD400 7x16 Lathe
- MX-8x14 Preenex (and others) 8x14 Lathe
- Harbor Freight 44859 Central Machinery 8x12 Precision Mini Lathe
- Grizzly G0768 8x16 Benchtop Lathe
- Emco Compact 8 8x17 Lathe
- Travers Tools OT218410 OTMT 8x16 Bench Lathe
