Vise, 3" Screwless with Clamping Slots - BLEMISHED

These vises have blemishes--cosmetic defects but function normally

Part Number: 4871
Weight: 8.83 lb

Price: $99.95

Share this page:
http://lmscnc.com/4871

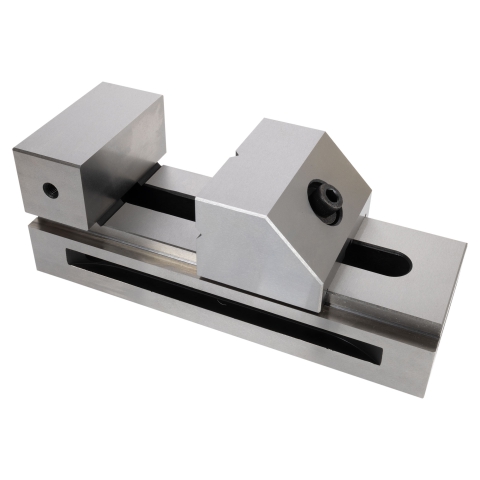

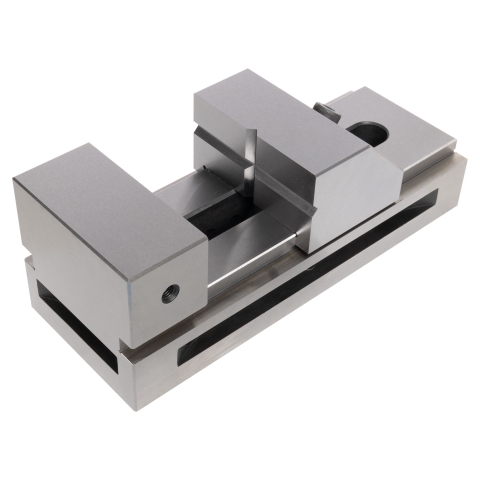

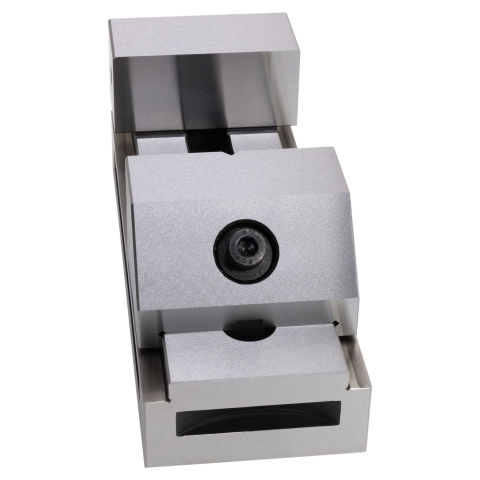

This high precision toolmakers screwless vise has a one-piece body. The body and jaws are hardened to Rc 58-62. All sides are flat, square and parallel to 0.0002". There are horizontal and vertical vees on the inside face of the movable jaw to hold round objects.

This screwless vise has slots along the sides so you can clamp it to the mill table with a clamping kit.

The jaws are 1.357" deep and open to 3.94" capacity.

The vise is 7.72" long, 2.76" tall and 2.875" wide.

Chris' Tips

Chris' Tips
You can use your clamping kit to secure this vise using the slots in the ends, but we recommend that you make a couple of clamping blocks to secure the vise across the table.

Take a look at our vise comparison page before you choose a vise.

One user suggests that you replace the M8x30 cap screw with an M8x40 cap screw. The extra length allows the locking pin to reach the position nearest the fixed jaw and puts the cap screw at a better angle.

These Z-Clamps make perfect mounting clamps for this screwless vise.

Specifications

Specifications
Jaw Depth	1.357" (34.47 mm)
Maximum Jaw Opening	3.94" (100.1 mm)
Weight	8.83 lbs (4.01 kg)
Height with Out Base	2.76" (70.1 mm)
Length	7.72" (196.1 mm)
Width with Out Base	2.875" (73.02 mm)

Compatibility

Compatibility

This product works with these LittleMachineShop.com products:

1893 Thin Parallels, 3" Long, 10 Pairs
2220 Thin Parallels, 3" Long, 10 Pairs, Ultra-Precision
2924 Thin Parallels, 3" Long, 4 Pairs
1232 Thin Parallels, 6" Long, 10 Pairs
2923 Ultra Thin Parallels, 6" Long
3583 Z-Clamp

This product works with the following mills. (If your machine is not on this list, we cannot verify compatibility.)

Clarke CMD10 Metalworker Micro Mill
Harbor Freight 47158 Central Machinery Micro Mill
SIEG X1 Micro Mill
SIEG SX1 Micro Mill
LittleMachineShop.com 4660 HiTorque Micro Mill
LittleMachineShop.com 4700 HiTorque Micro Mill
SIEG SX1P Micro Mill
Grizzly G0758 Mill/Drill
Bolton XJ-9510 Mill/Drill
Clarke CMD300 Milling Drilling Machine
Grizzly G8689 Mini Milling Machine
Hare & Forbes HM-10 Mill/Drill
Princess Auto 8507667 Powerfist Mini Mill
SIEG X2-MT3 Mini Mill
Micro-Mark 82573 MicroLux Milling Machine
BusyBee CX605 Craftex Mini Mill
Cummins (Tools Now) 7877 Mini Mill
Eastwood 32498 Mini Mill
Harbor Freight 44991 Central Machinery Mill/Drill
Homier 03947 Speedway Mini Mill
King Canada KC-15VS King Industrial Mini Mill
Northern Tool 49657 KLUTCH Mini Mill
Penn Tool Co XJ-9510-1 Precise Mini Mill
SIEG X2-R8 Mini Mill
Travers Tools OT2213 OTMT Mini Mill
SIEG X2P Mini Mill
LittleMachineShop.com 4962 SIEG Mini Mill
SIEG X2D Mini Mill
SIEG X2L Mini Mill
WEN 33013 WEN Mini Mill
SIEG X2LF Mini Mill
BusyBee CX612 Craftex Mini Mill
SIEG SX2 Mini Mill
Micro-Mark 84630 MicroLux Mini Mill
LittleMachineShop.com 3900 HiTorque Mini Mill
SIEG SX2L Mini Mill
LittleMachineShop.com 6450 HiTorque Mini Mill
LittleMachineShop.com 3990 HiTorque Mini Mill
LittleMachineShop.com 3960 HiTorque Mini Mill
LittleMachineShop.com 4190 HiTorque Mini Mill
SIEG SX2LF Mini Mill
Grizzly G0781 Mill/Drill
SIEG X2.7 Bench Mill
SIEG X2.7L Bench Mill
WEN 33075 WEN Bench Mill
LittleMachineShop.com 5500 HiTorque Bench Mill
LittleMachineShop.com 6500 HiTorque Bench Mill
SIEG SX2.7 Bench Mill
LittleMachineShop.com 6570 HiTorque Bench Mill
LittleMachineShop.com 5550 HiTorque Bench Mill
LittleMachineShop.com 6550 HiTorque Bench Mill
SIEG SX2.7L Bench Mill
Grizzly G0463 Mill/Drill
Harbor Freight 93885 Central Machinery Mill/Drill
SIEG X3 Small Mill
Woodstock International M1110 Shop Fox Small Mill
BusyBee CX611 Craftex Small Mill
Grizzly G0619 Mill/Drill
SIEG SX3 Small Mill
Travers Tools OT2225SX3 OTMT Small Mill
Grizzly G0759 Mill/Drill With Stand
Grizzly G0704 Mill/Drill With Stand
Grizzly G3103 Vertical Mill
Grizzly G3102 Vertical Mill
Harbor Freight 42976 Central Machinery Mill/Drill
SIEG X3.5 Large Bench Mill
LittleMachineShop.com 6750 HiTorque Large Bench Mill
LittleMachineShop.com 6700 HiTorque Large Bench Mill
LittleMachineShop.com 6770 HiTorque Large Bench Mill
Grizzly G0722 Bench Mill
Grizzly G0720R Bench Mill
Grizzly G0720 Bench Mill
SIEG SX4 Bench Mill
Harbor Freight 33686 Central Machinery Small Mill
Rong Fu RF-xx Milling & Drilling Machine
BusyBee CX705 Craftex Lathe Mill Combo
Grizzly G0516 Lathe Mill Combo
SIEG M6 Multi-purpose Machine
