3-Axis Universal DRO Kit for Mini Mills, Bluetooth

3-Axis Universal DRO Kit for Mini Mills, Bluetooth
  • Fits milling machines with less than 32" total X-, Y-, and Z-axis travel
  • Displays on any Android tablet with Bluetooth capability
  • Resolution of 0.0002" (0.005 mm)
  • 120-240 VAC Power supply
  • Coolant and dust resistant (IP50)
Part Number: 5515
Weight: 2.10 lb

Price: $499.95

This product is currently backordered.

Estimated availability:
21-Dec-2024
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.


This magnetic technology digital readout package fits virtually any milling machine with less than 31.8" total X-, Y-, and Z-axis travel.

This kit includes 1 meter (39.4") of magnetic scale that you cut to the lengths required for your machine. The instructions tell you how to measure and cut the magnetic scale.

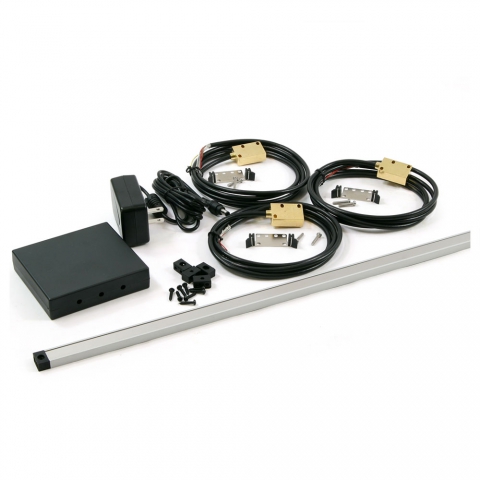

This package includes what you need to put a DRO on most any milling (or 3-in-one) machine. It includes a section of scale, three read heads, and a Bluetooth transceiver. Typical mounting bracket designs are included in the instructions. However, due to the wide range of possible applications, appropriate brackets cannot be supplied.

You must also get an Android tablet for the display on this DRO. We recommend a 7" screen size, and the tablet must have Bluetooth capability.

Chris Chris' Tips
Here are installation instructions for the Universal Bluetooth DRO.

While we sell an Android Tablet with the DRO software installed, you can use most any Android tablet that supports Bluetooth with the Bluetooth DROs that we sell.

Here's how to get going:

  1. On your Android tablet, go to Bluetooth Settings and Pair the DRO to your tablet. The name of the DRO is HC-06 or BT04-E. The PIN is 1234.
  2. Go to the Google Play Store and install Yuriy's Toys TouchDRO.
  3. When you launch TouchDRO and tap Connect in the upper right corner.
What's it take to assemble a DRO?

P/NItem
5498 Scale, Magnetic 1 Meter One meter is usually enough for small mills. See Measuring for Scales below.
5499 Read Head, Magnetic Get as many of these as you have axes on your machine.
5501 Transceiver, Bluetooth This is the "sender" that talks to your Android Bluetooth phone or tablet.
5513 Android Tablet Any Android phone or tablet works as long as it has Bluetooth capability.


Specifications
Repeatability 0.0002" (0.005 mm)
Resolution 0.0002" (0.005 mm)
Specified Accuracy 0.0020" (0.050 mm) / 1 m travel
Accuracy / Foot 0.0020" (0.050 mm)
Accuracy / 100 Mm 0.0020" (0.050 mm)
Scales Cut to Length by User Yes
Scale Technology Magnetic
Scale Protection Coolant & dust resistant
Voltage 100-240 V
Clear to Zero Yes
Direct Entry of Position Yes
Inch/mm Display Yes
Power Off Memory No
Reversible Count Direction Yes
Find Center Yes
Bolt Circles Yes
Bolt Lines Yes
Preset Points Yes
Tool Offsets Yes
Radius/Diameter Yes
Incremental/Absolute Yes
Calculator No
Arc Machining No
Linear Error Compensation No
Made In China
Warranty 1 year
Phone Tech Support Free

Screenshots of 3-Axis Universal Digital Position Readout

Read head detail Read head detail
Typical mounting of read head Typical mounting of read head
Read head in mounting bracket Read head in mounting bracket
Scale end Close-up mounting end of scale
Example of a short scale in brackets Example of a short scale in brackets
Scale end with bracket attached Close-up end of scale with bracket attached
