Chamfer Tool, 3/8" Indexable, SCSCR-06-2J, Tormach
- Designation: SCSCR-06-2J
- Steel shank 3/8" x 3-1/2"
- Designed for CCMT, CCMW, and CCGT inserts
- Approach 45°, 7° relief angle
- Insert Shape: 80° (C)
Part Number: 5612
Weight: 0.17 lb
Weight: 0.17 lb
Price: $43.95
Share this page:
http://lmscnc.com/5612
http://lmscnc.com/5612

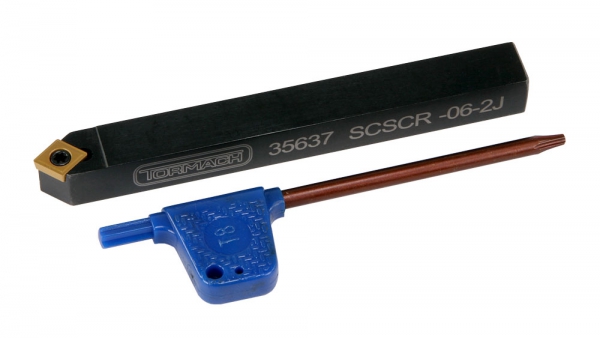

45° Right hand Chamfer Tool. Includes wrench and (1) insert.
 |

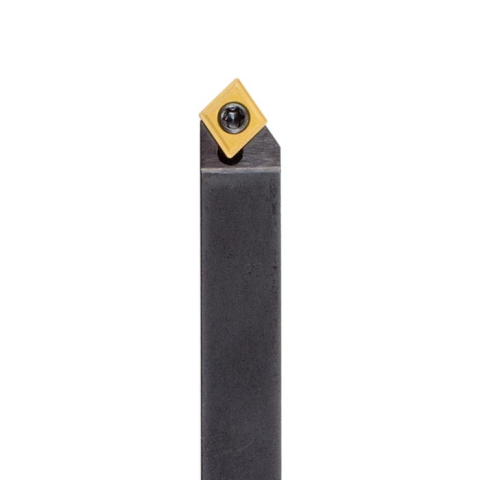

This image shows how the insert is mounted to produce a cutting edge at 45 degrees on the left side. |
Compatibility
This product works with these LittleMachineShop.com products:
- 1781 Insert, CCMT-21.51 Carbide
- 3696 Insert, CCMW-21.51 HSS
- 4975 Insert, CEMW-21.5.5 HSS
- 2695 Screw, Insert Retaining, M2.5x8
- 5551 Torx Wrench, T-8
- 4843 Torx Wrench, T-8, Wiha
