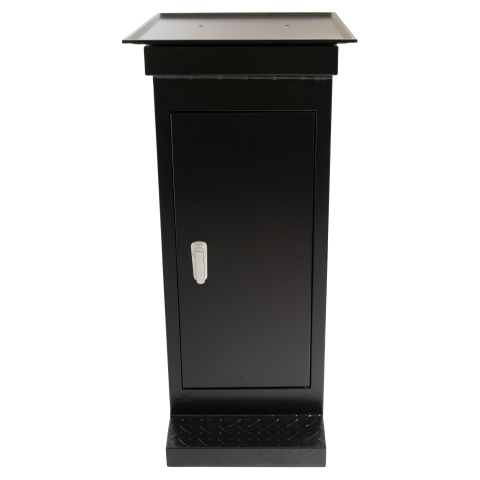

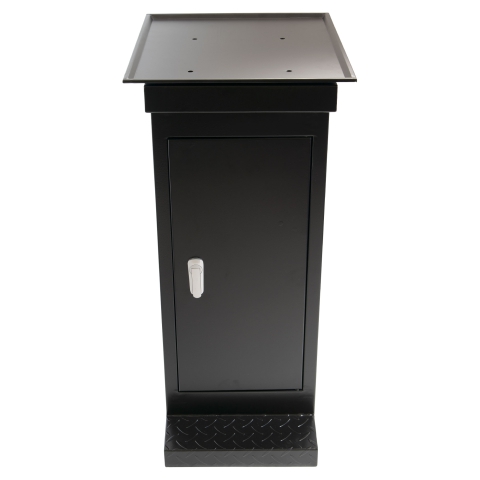

Stand Cabinet, Mini Mill
- Metal stand and chip tray for mini mill
- Single column design
- 16.1" x 19.3" x 35.3" (410 mm x 490 mm x 896 mm)

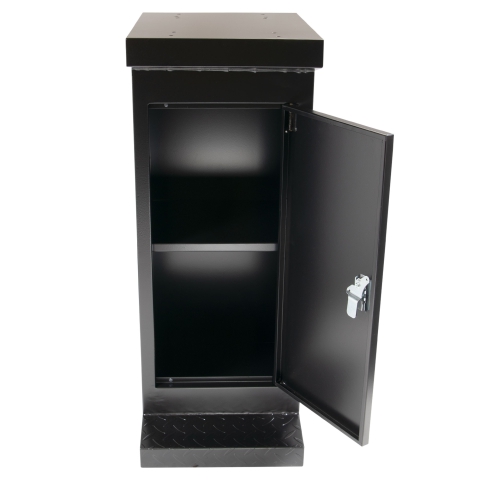

- Cabinet for storage with locking door
- Fits SIEG X2 and SX2 mini mills
Weight: 64.2 lb
Price: $249.95
This product is currently backordered.
Estimated availability:
21-Dec-2024
What is "estimated availability"?
Click this button if you want to receive an email notification when this product becomes available.
The tray dimensions are 16.1" x 19.3" x 0.95" (882 mm x 352 mm x 24 mm) and the unit stands 35" (889 mm) high. The chip tray has been upgraded to provide years of service. The tray has predrilled holes for securing SIEG X2/SX2 mini mills.

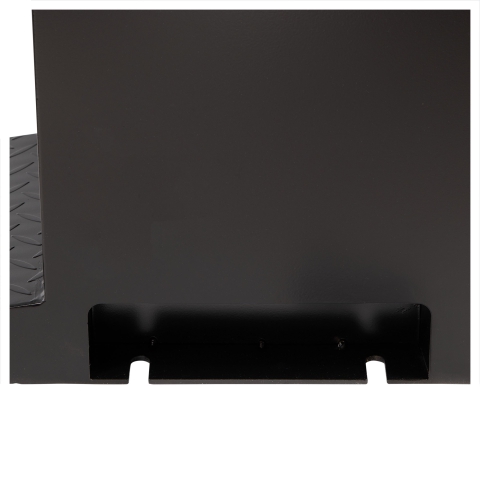

The cabinet base has bolting slots for securing the stand to a floor for additional stability and safety.
See the Compatibility tab for machines that work with this product.
Height with Tray | 35.3" (896 mm) |
Width with Tray | 16.1" (410 mm) |
Width of Cabinet | 13.4" (340 mm) |
Depth with Tray | 19.3" (490 mm) |
Depth of Cabinet | 13.4" (340 mm) |
Depth of Cabinet Base | 16.5" (420 mm) |
Tray Usable Width (Flat Area) | 14.1" (358 mm) |
Tray Usable Depth (Flat Area) | 17.2" (438 mm) |
Cabinet Usable Width | 13.2" (336 mm) |
Cabinet Top Shelf Usable Depth | 10.6" (270 mm) |
Cabinet Top Shelf Usable Heigth | 17.0" (432 mm) |
Cabinet Bottom Shelf Usable Depth | 11.4" (290 mm) |
Cabinet Bottom Shelf Usable Height | 14.6" (370 mm) |
Bolt Down Slots Distance On Center | 6.7" (170 mm) |
Bolt Down Slots Width | 0.5" (13 mm) |
Bolt Down Slots Depth | 1.5" (38 mm) |
Compatibility
This product works with the following mills. (If your machine is not on this list, we cannot verify compatibility.)
- Bolton XJ-9510 Mill/Drill
- Clarke CMD300 Milling Drilling Machine
- Grizzly G8689 Mini Milling Machine
- Hare & Forbes HM-10 Mill/Drill
- Princess Auto 8507667 Powerfist Mini Mill
- SIEG X2-MT3 Mini Mill
- Micro-Mark 82573 MicroLux Milling Machine
- BusyBee CX605 Craftex Mini Mill
- Cummins (Tools Now) 7877 Mini Mill
- Eastwood 32498 Mini Mill
- Harbor Freight 44991 Central Machinery Mill/Drill
- Homier 03947 Speedway Mini Mill
- King Canada KC-15VS King Industrial Mini Mill
- Northern Tool 49657 KLUTCH Mini Mill
- Penn Tool Co XJ-9510-1 Precise Mini Mill
- SIEG X2-R8 Mini Mill
- Travers Tools OT2213 OTMT Mini Mill
- BusyBee CX612 Craftex Mini Mill
- SIEG SX2 Mini Mill
- Micro-Mark 84630 MicroLux Mini Mill
These stands ship by freight truck because they are simply too heavy and bulky for UPS Parcel Service. If your location will be difficult for larger truck/Semi-trailer, please let us know.
We normally ship truck orders a day or two after we receive the order. For local orders transportation usually takes no more than a day or two. For orders going across county or over water the transportation time can be up to a week or longer.
We add the following shipping cost to your order total:
We ship machines only to the US and Canada.
Destination | *Local | Continental US |
---|---|---|
Freight Terminal (pick-up)
|
$99 | $179 |
Commercial Address (inc. Limited Access Sites)
|
$99 | $149 |
**Liftgate: Add liftgate if forklift or loading dock is not available onsite. |
+ $75 | |
Residential Address
|
$99 | $249 |
*Local refers to the parts of Southern California served by Hollywood Delivery Service.
**Liftgate service is included in local delivery and residential delivery. A loading dock or forklift is assumed in commercial deliveries. If these are not available, please add this extra service.
Additional Notes
- Contact and delivery. Ensure you choose the correct type of delivery, have a dedicated contact person/number, and are ready on day of delivery. Freight companies charge an additional fee if delivery exceeds 30 minutes.
- Only one shipping charge for entire pallet (up to 700 pounds total). The shipping charges shown above cover the cost of shipping the machine and anything else that you purchase with it, including a second machine, stand, tooling, and accessories.
- A "commercial address" has a sign with company name, a public entrance and posted hours of operation. If you are running a business at your residence without a public entrance and posted company name and hours of operation it is considered a residence and a not commercial address.
- A "limited access" designation is required for "Secured Locations" (schools, colleges, universities, university hospitals, military bases, government facilities, etc). Please provide accurate details on delivery in special instructions.
- "Terminal Pickup" allows for pickup at local terminal. If there is not a terminal within 50 miles (or 1 hour), we will confirm with you that you still want Terminal Pickup. Terminals tend to be near highways (usually miltiple intersecting) and industrial centers. Only certain terminals allow pick-up.
- "Residential delivery" does not include moving machine into home/garage/workshop or any setup. Delivery is to start of driveway on the street that the delivery truck can access. (See inside delivery below.)
For delivery to Alaska, Hawaii, or Puerto Rico
We will check with several trucking companies to get the best price and then call for your approval before we ship.
Canadian Shipments
Truck Freight shipping to Canada involves 3 distinct charges in addition to the product costs. (All amounts are in US Dollars, see the current mid-market exchange rate.)
- Canadian Provincial Taxes (GST, PST, HST) depending on which province the shipment is going to. This will be 5% - 15% added to total sales amount depending on province (Canadian Sales Tax).
- Hemisphere Customs Brokerage which handles all customs clearance requirements. This is a flat fee of $108 on any shipment.
- Truck Freight from Southern California to destination in Canada. This is generally $300-$500 for residential liftgate delivery and appointment for single machine + tooling orders. Delivery to a terminal for pick-up or a commercial location with loading capabilities can reduce this cost substantially.
Quotes
To get a quotation that includes the shipping costs, add the products you want to the shopping cart and continue the checkout process until you reach the Payment page. On the Payment page, select the Quotation option. We will add the shipping costs and return a complete quotation to you within one business day.
Inside Delivery
Some carriers offer Inside Delivery which gets the machine inside one doorway or into your garage. If you select this we will confirm availability before shipping:
Inside Delivery | Local | Continental US |
---|---|---|
Gets the machine inside 1 threshold This is simply pushing pallet jack to move crate a little closer to destination or up driveway into garage. Once shipment in transit carrier can not change service or refund charge. CALL IF QUESTIONS... |
$75 | $100 |
