Key Features

  • Metal stand and chip tray for mini mill
  • Single column design
  • 16.1" x 19.3" x 35.3" (410 mm x 490 mm x 896 mm)
  • Cabinet for storage with locking door
  • Fits SIEG X2 and SX2 mini mills

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

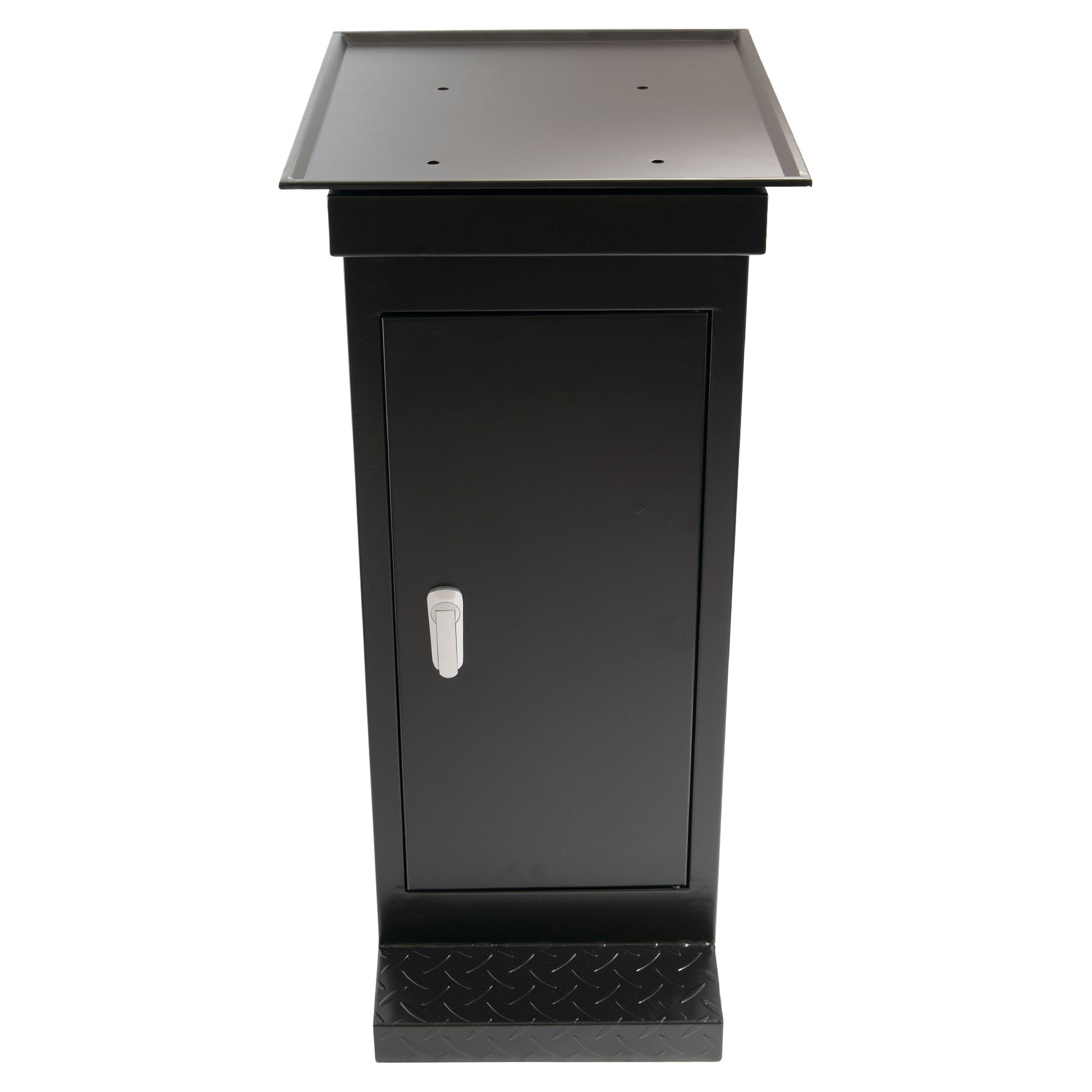

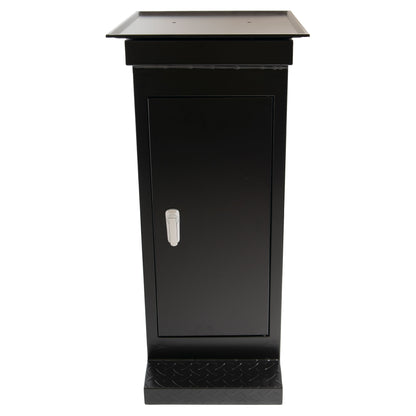

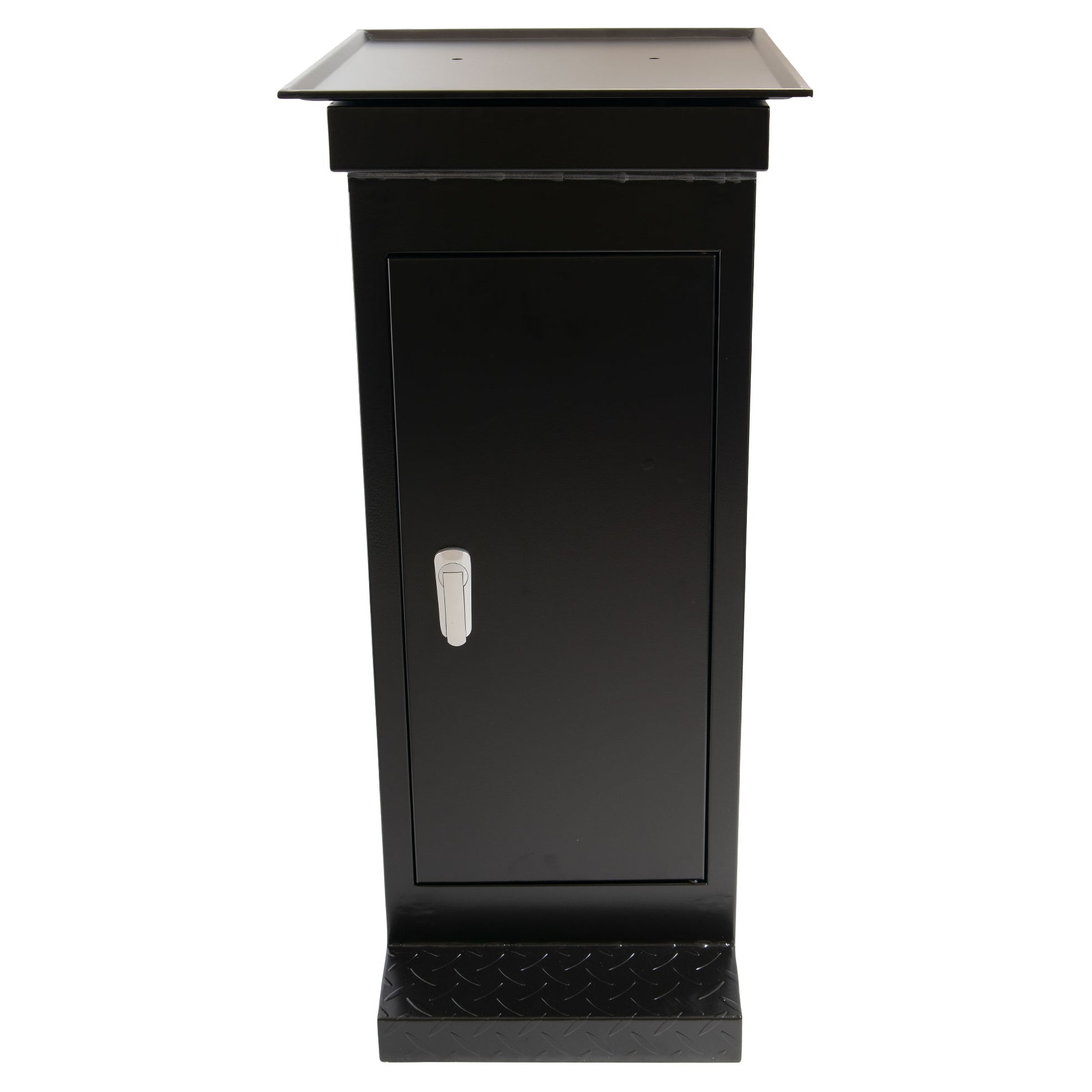

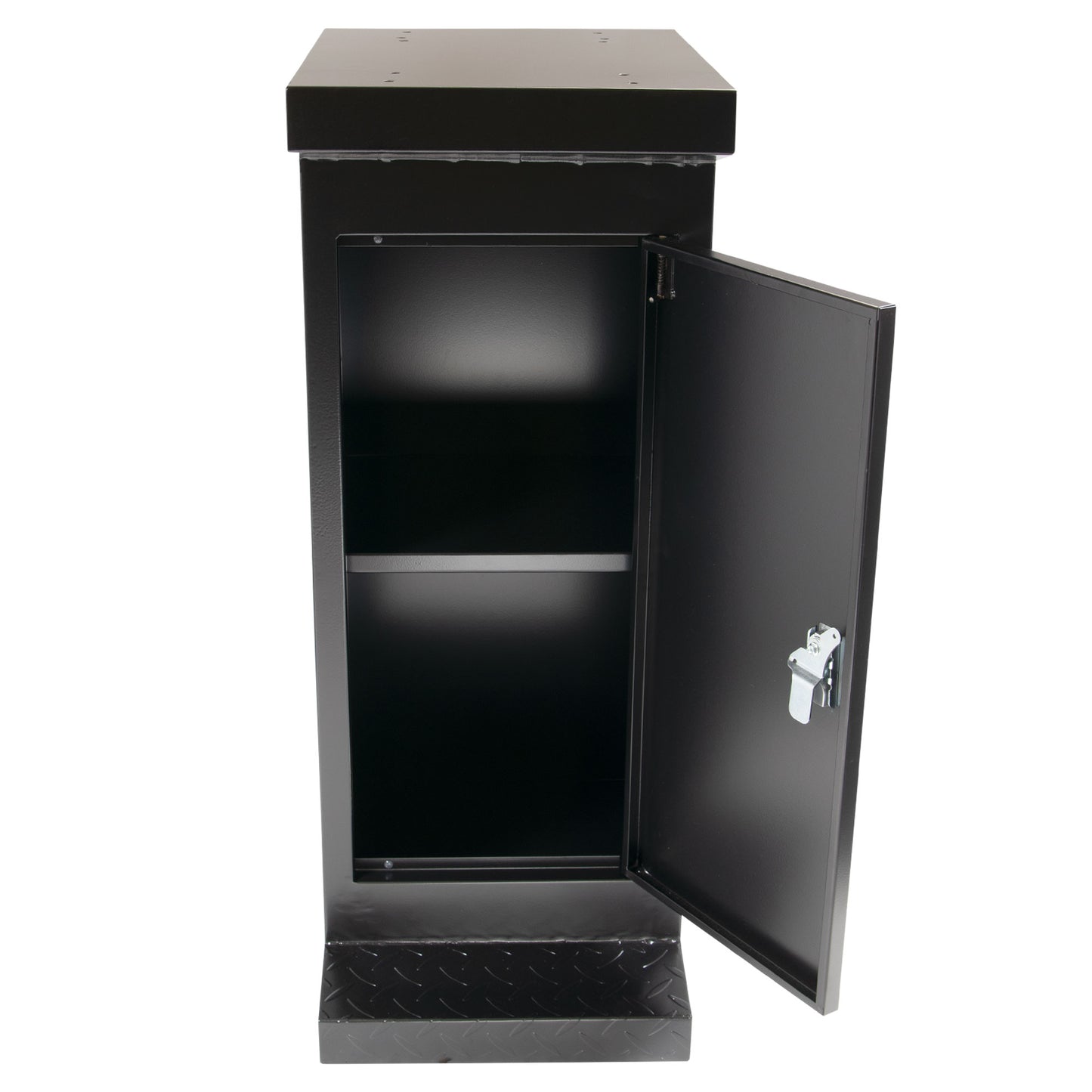

This single column black stand comes with a built in metal storage cabinet and is sized for mini mills. The cabinet has one shelf.
The tray dimensions are 16.1" x 19.3" x 0.95" (882 mm x 352 mm x 24 mm) and the unit stands 35" (889 mm) high. The chip tray has been upgraded to provide years of service. The tray has predrilled holes for securing SIEG X2/SX2 mini mills.

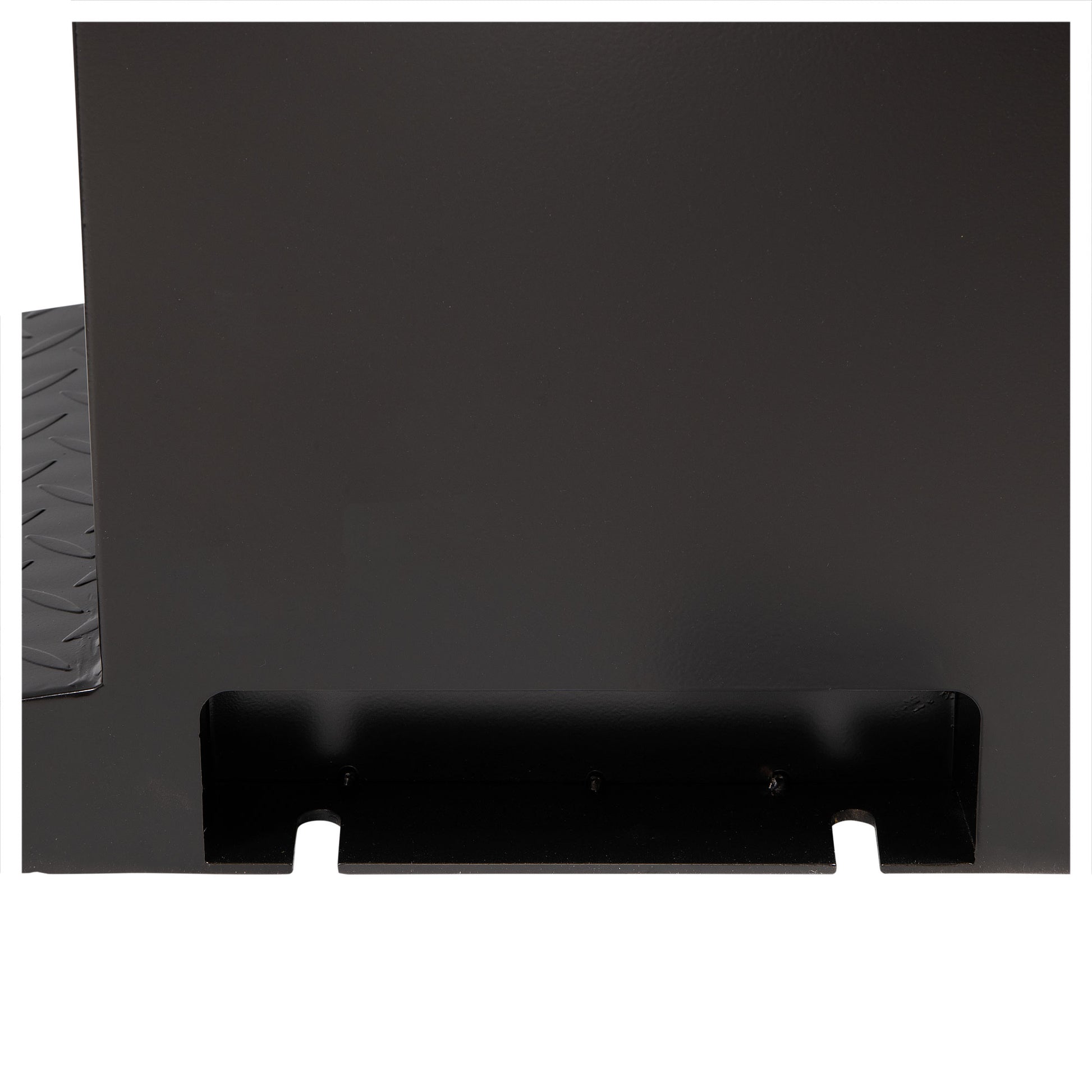

The cabinet base has bolting slots for securing the stand to a floor for additional stability and safety.
See the Compatibility tab for machines that work with this product.

Specifications

Height with Tray: 35.276" (896 mm)

Width with Tray: 16.142" (410 mm)

Width of Cabinet: 13.386" (340 mm)

Depth with Tray: 19.291" (490 mm)

Depth of Cabinet: 13.386" (340 mm)

Depth of Cabinet Base: 16.535" (420 mm)

Tray Usable Width (Flat Area): 14.094" (358 mm)

Tray Usable Depth (Flat Area): 17.244" (438 mm)

Cabinet Usable Width: 13.228" (336 mm)

Cabinet Top Shelf Usable Depth: 10.630" (270 mm)

Cabinet Top Shelf Usable Heigth: 17.008" (432 mm)

Cabinet Bottom Shelf Usable Depth: 11.417" (290 mm)

Cabinet Bottom Shelf Usable Height: 14.567" (370 mm)

Bolt Down Slots Distance On Center: 6.693" (170 mm)

Bolt Down Slots Width: 0.512" (13 mm)

Bolt Down Slots Depth: 1.496" (38 mm)

Product Compatibility

This product was designed for machines manufactured by SIEG, including those listed below. We have added compatibility for other non-SIEG machines when a “fit” can be verified.

If your machine is not listed, we cannot verify compatibility but encourage you to contact us. With additional information we may be able to help you find a solution.

  • Bolton XJ-9510 Mill/Drill
  • Clarke CMD300 Milling Drilling Machine
  • Grizzly G8689 Mini Milling Machine
  • Hare & Forbes HM-10 Mill/Drill
  • Princess Auto 8507667 Powerfist Mini Mill
  • SIEG X2-MT3 Mini Mill
  • Micro-Mark 82573 MicroLux Milling Machine
  • BusyBee CX605 Craftex Mini Mill
  • Cummins (Tools Now) 7877 Mini Mill
  • Eastwood 32498 Mini Mill
  • Harbor Freight 44991 Central Machinery Mill/Drill
  • Homier 03947 Speedway Mini Mill
  • King Canada KC-15VS King Industrial Mini Mill
  • Northern Tool 49657 KLUTCH Mini Mill
  • Penn Tool Co XJ-9510-1 Precise Mini Mill
  • SIEG X2-R8 Mini Mill
  • Travers Tools OT2213 OTMT Mini Mill
  • BusyBee CX612 Craftex Mini Mill
  • SIEG SX2 Mini Mill
  • Micro-Mark 84630 MicroLux Mini Mill
