Quill, Bench Lathe

Quill, Bench Lathe

4335

$24.95 USD
$24.95 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Key Features

  • Bench lathe quill
  • #2 Morse taper bore
  • Overall length 130 mm, Diameter 25 mm
  • Keyway 4 mm x 77 mm
  • Fits HiTorque and SIEG SC4 bench lathes
*Will this fit my machine? Check our Replacement Parts

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

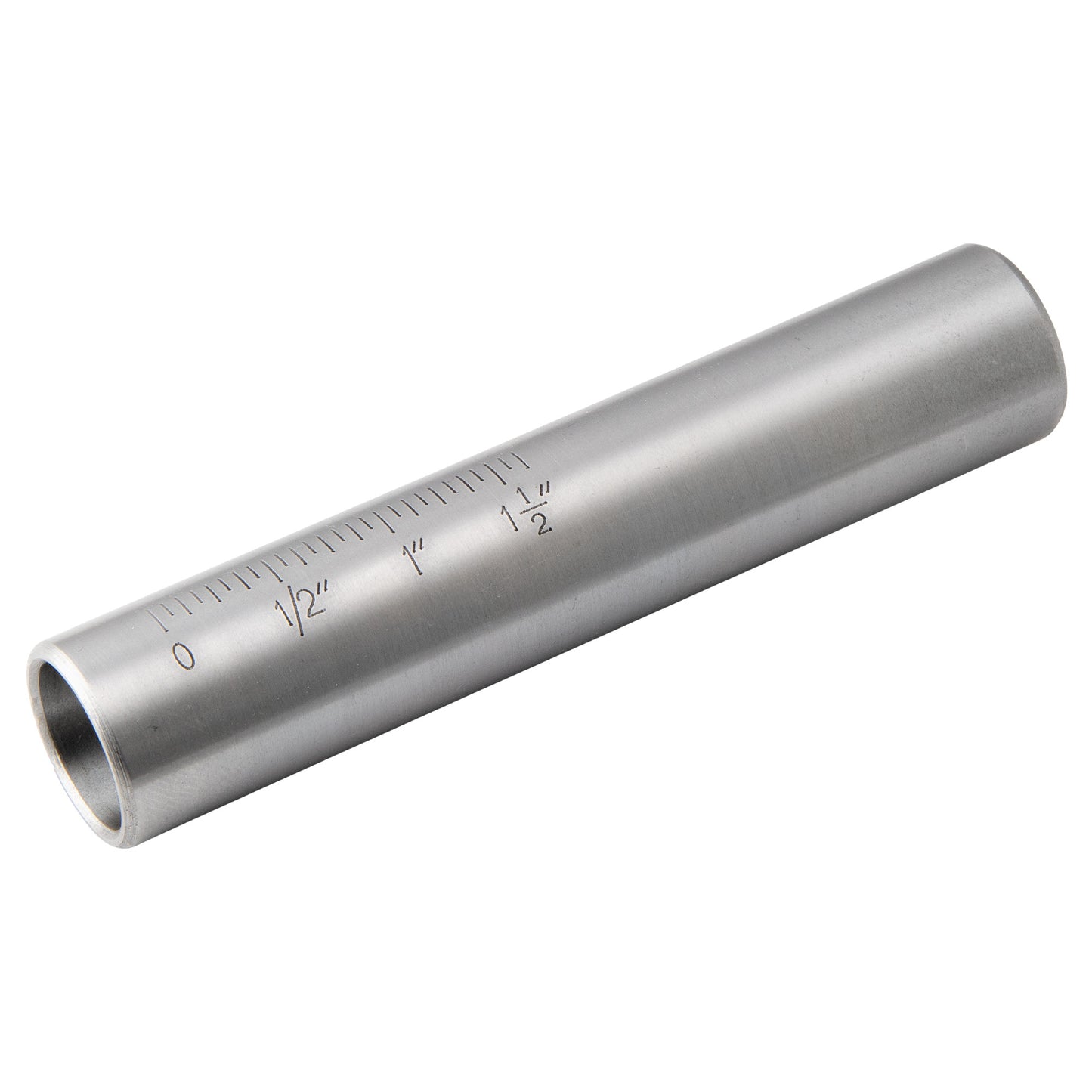

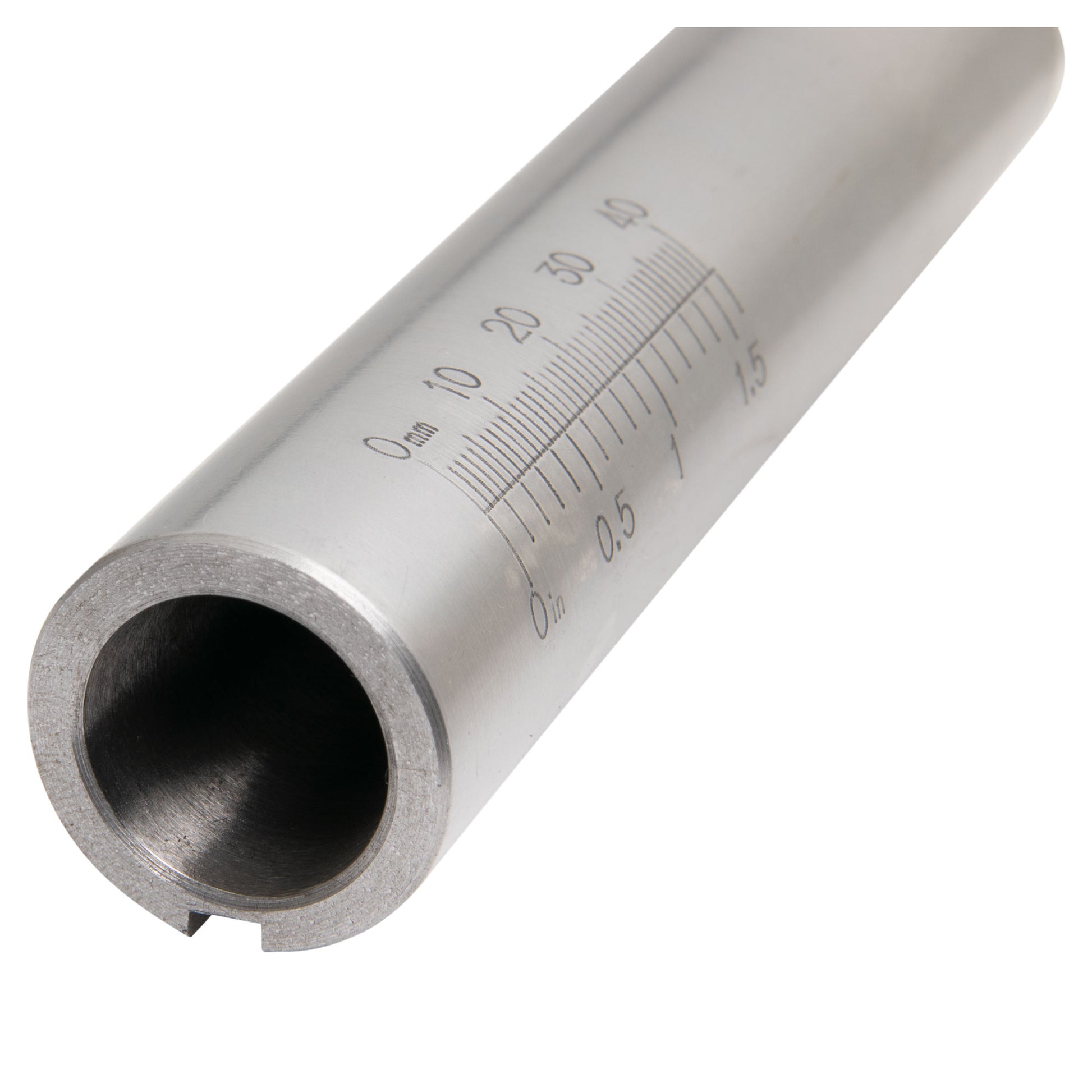

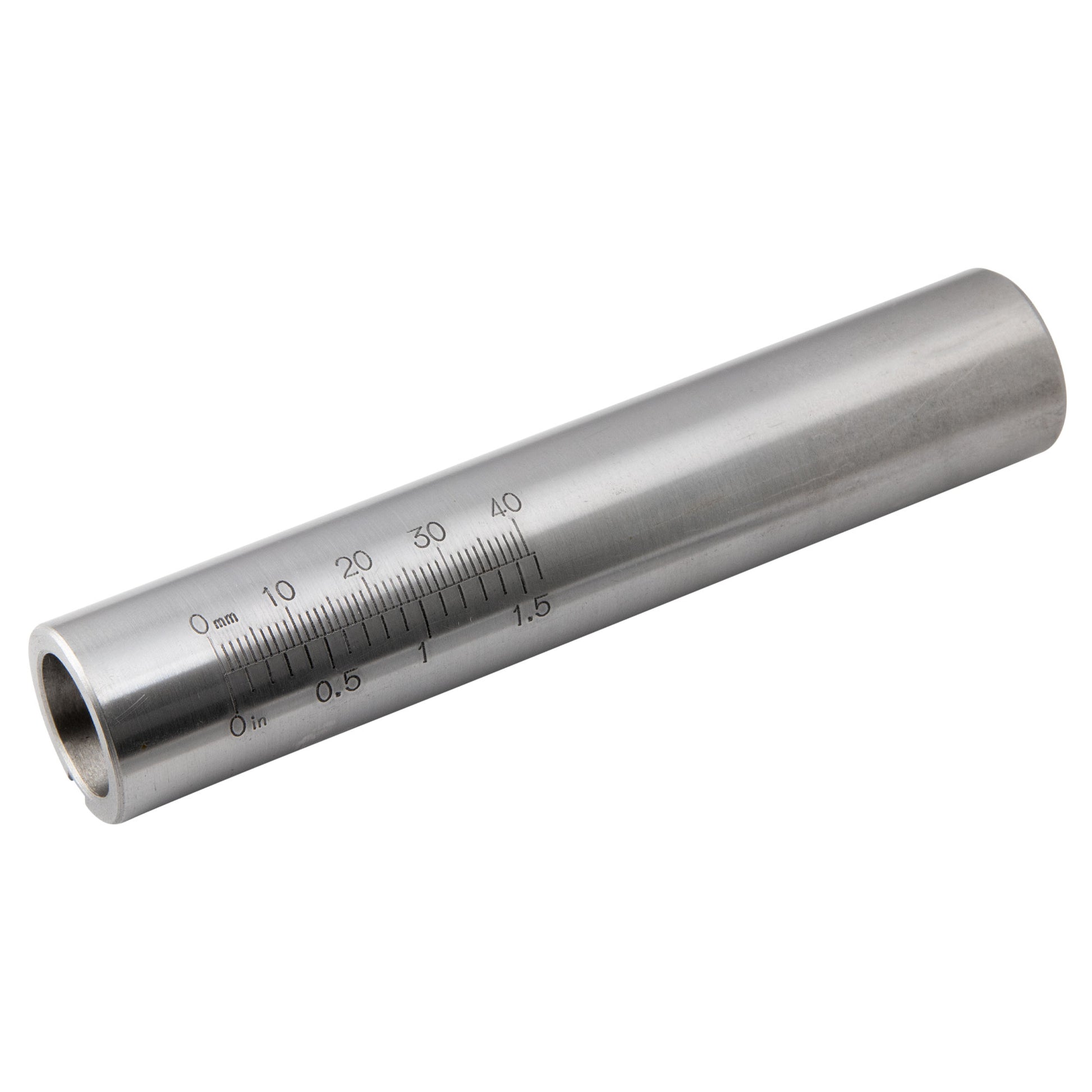

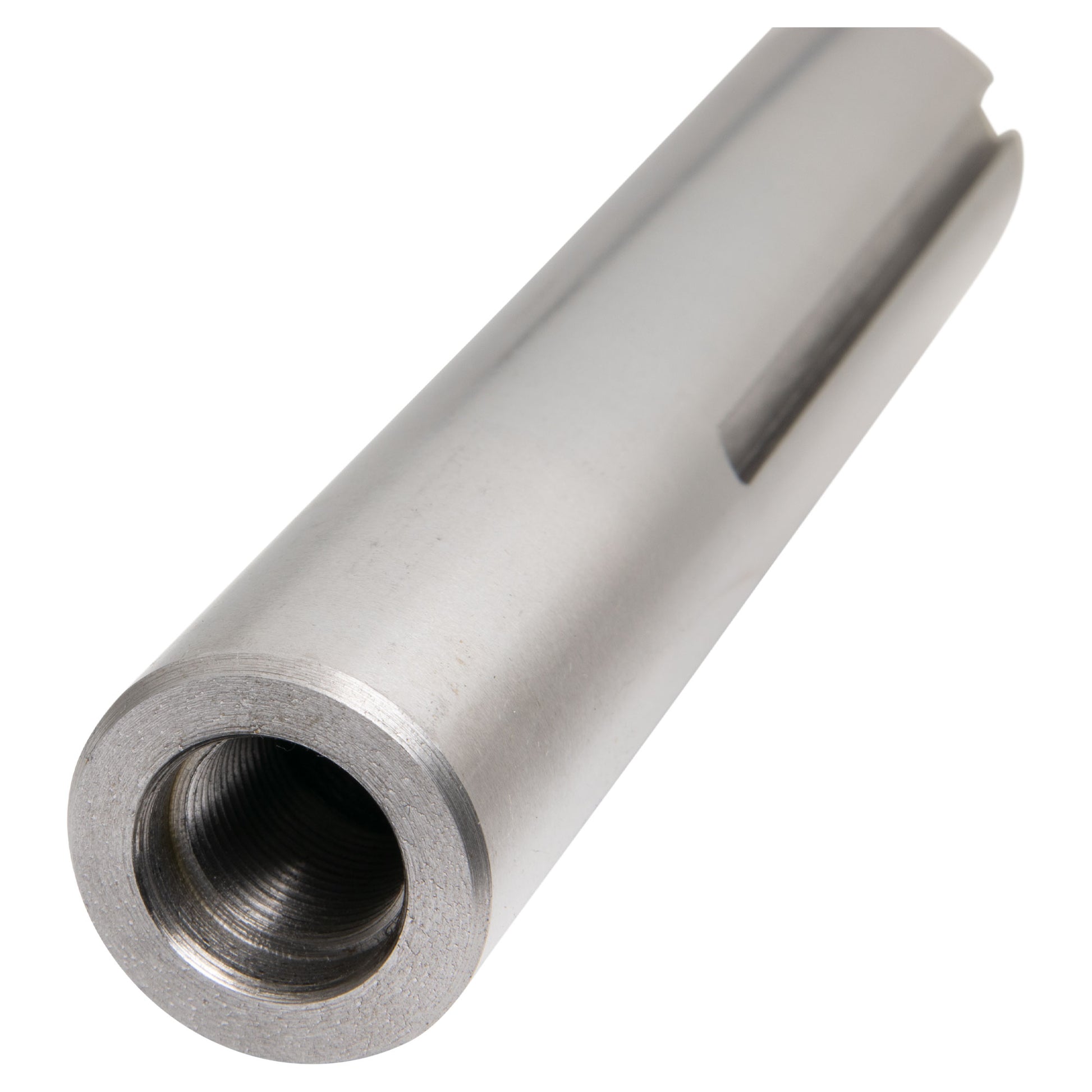

This is the quill for the tailstock on HiTorque bench lathes and SIEG SC4 bench lathes.
It has a #2 Morse Taper bore.

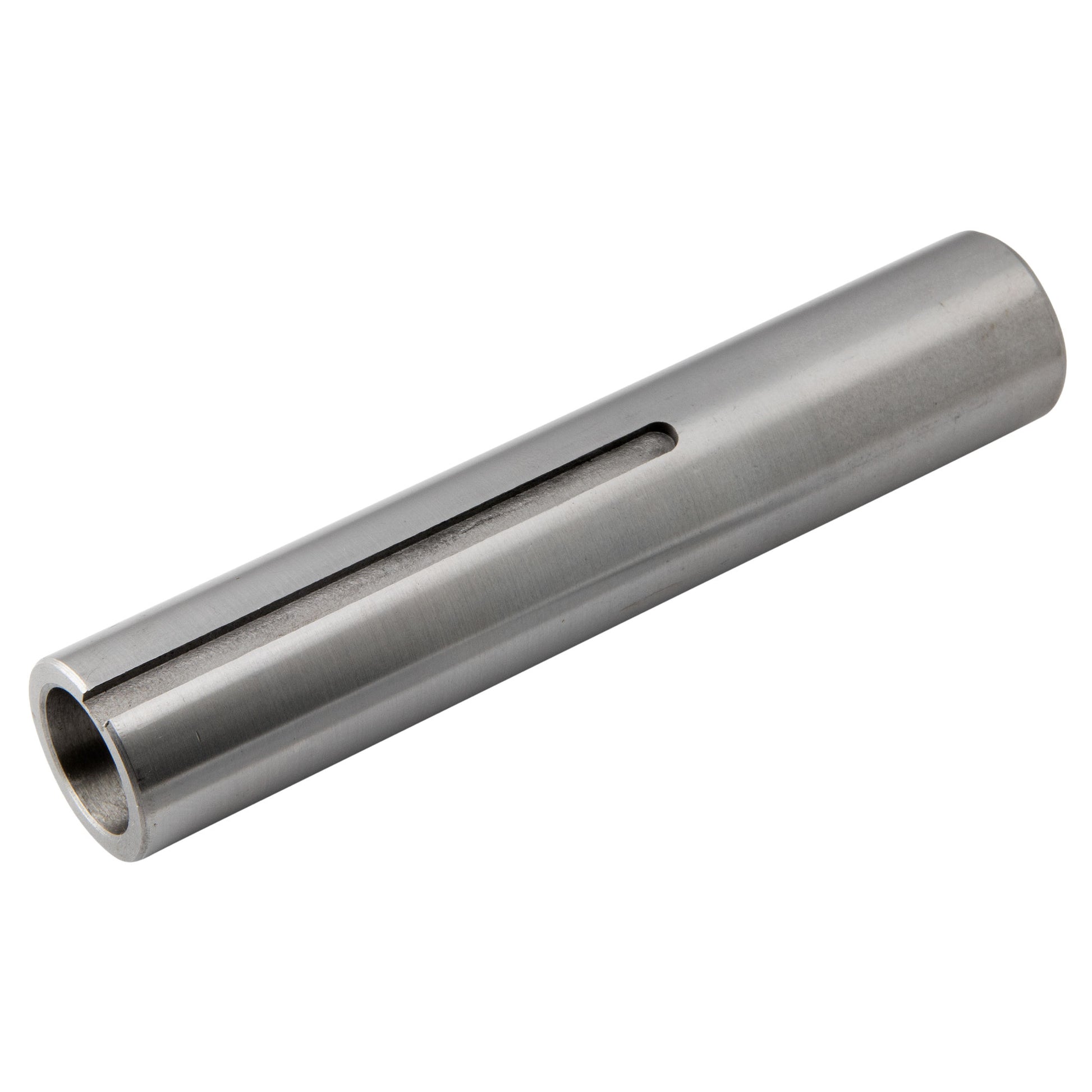

The overall length is 130 mm and the diameter is 25 mm. The underneath keyway is 4 mm x 77 mm.

Specifications

Overall Length: 5.118" (130 mm)

Diameter: 0.984" (25 mm)

Keyway: 4 mm x 77 mm

Bore: #2 Morse Taper
