Rack, Mini Mill Z-Axis, 13.5" Drilled

This is the rack that provides the Z-axis motion.

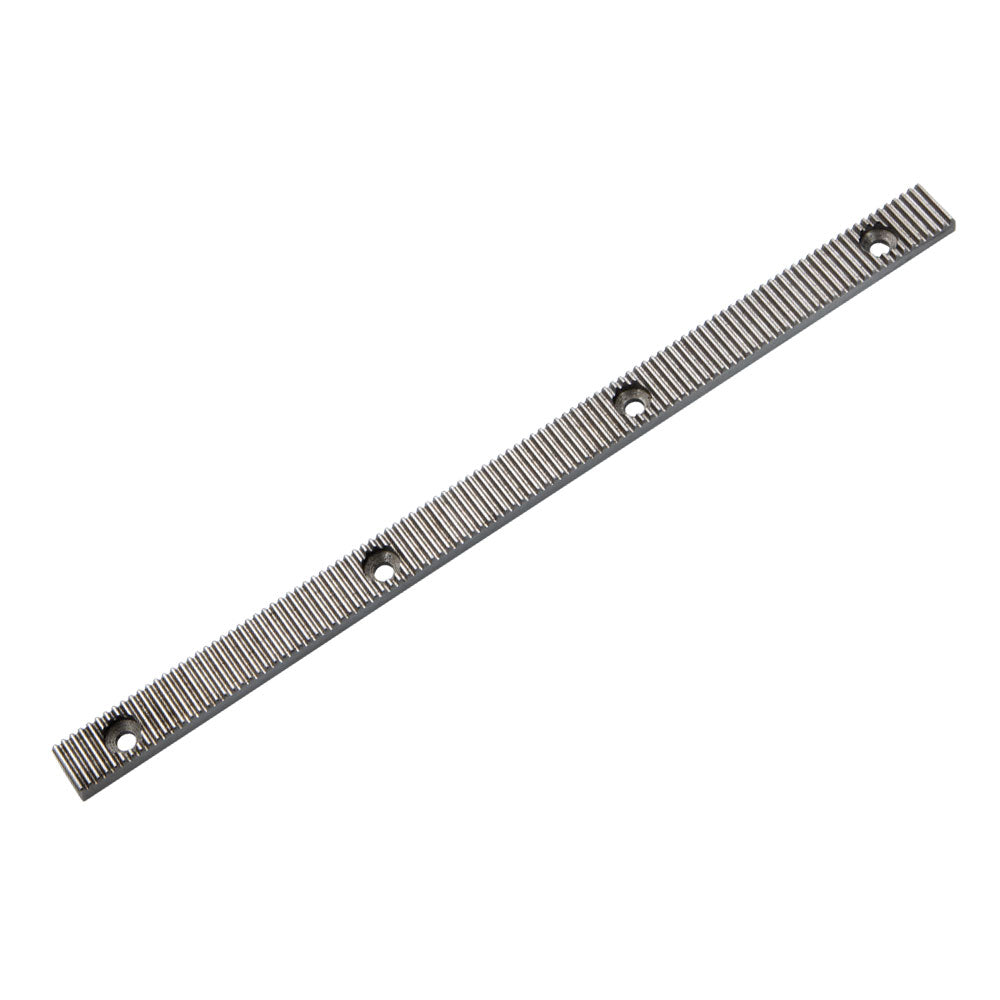

This is the rack used on older mini mills and current model 3990 and 4190 mills with air spring. The rack is approximately 13.5" long and there are four mounting holes.

We stock three different Z-axis racks.

Part 1696 is about 8.75" long and has 2 mounting holes. This rack is used on current production mini mills.

Part 1486 is about 14" long and has 4 mounting holes. This rack was used on earlier mini mills, but it is useful for extending the Z-axis range.

Part number 2232 is also about 14" long. It doesn't have any mounting holes, so it is good for custom applications.

If you get the longer 1486 rack, get a couple PN 1563 screws, too. It requires 4 screws rather than the 2 screws you have in the short rack.

This product was designed for machines manufactured by SIEG, including those listed below. We have added compatibility for other non-SIEG machines when a “fit” can be verified.

If your machine is not listed, we cannot verify compatibility but encourage you to contact us. With additional information we may be able to help you find a solution.
