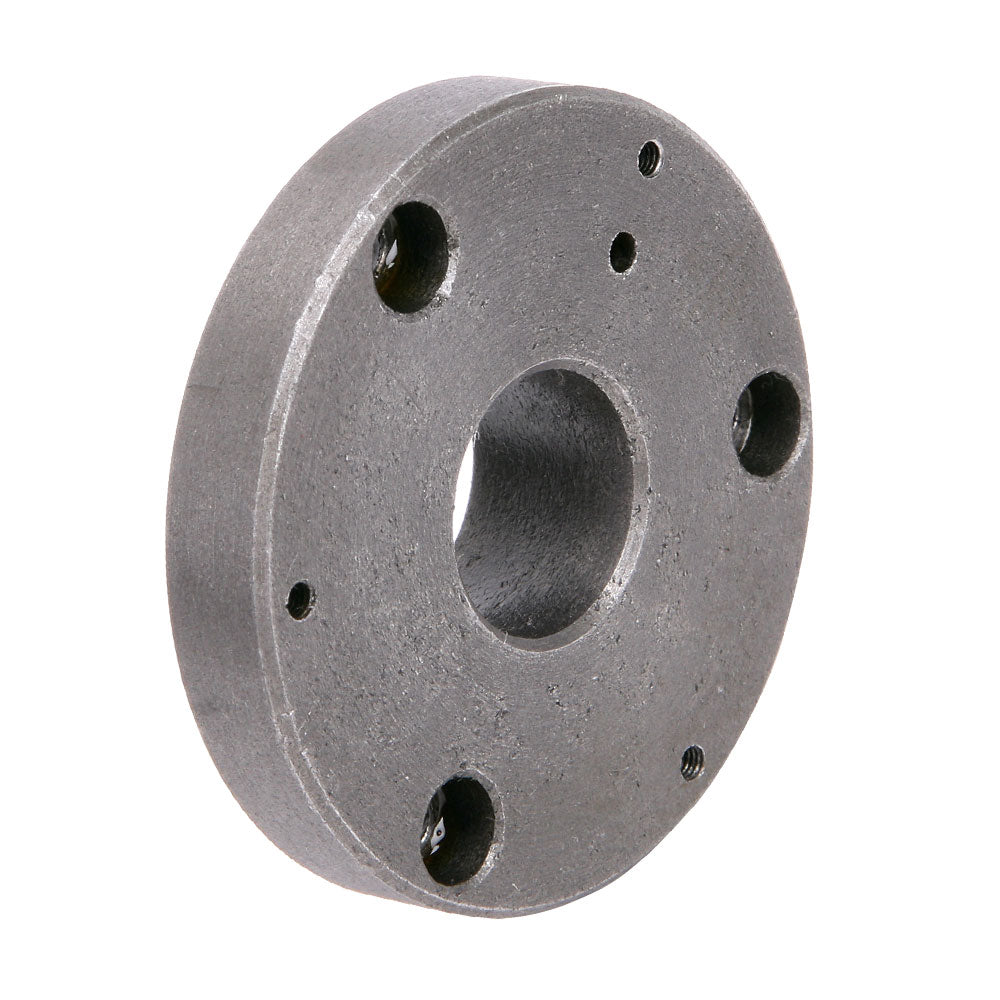

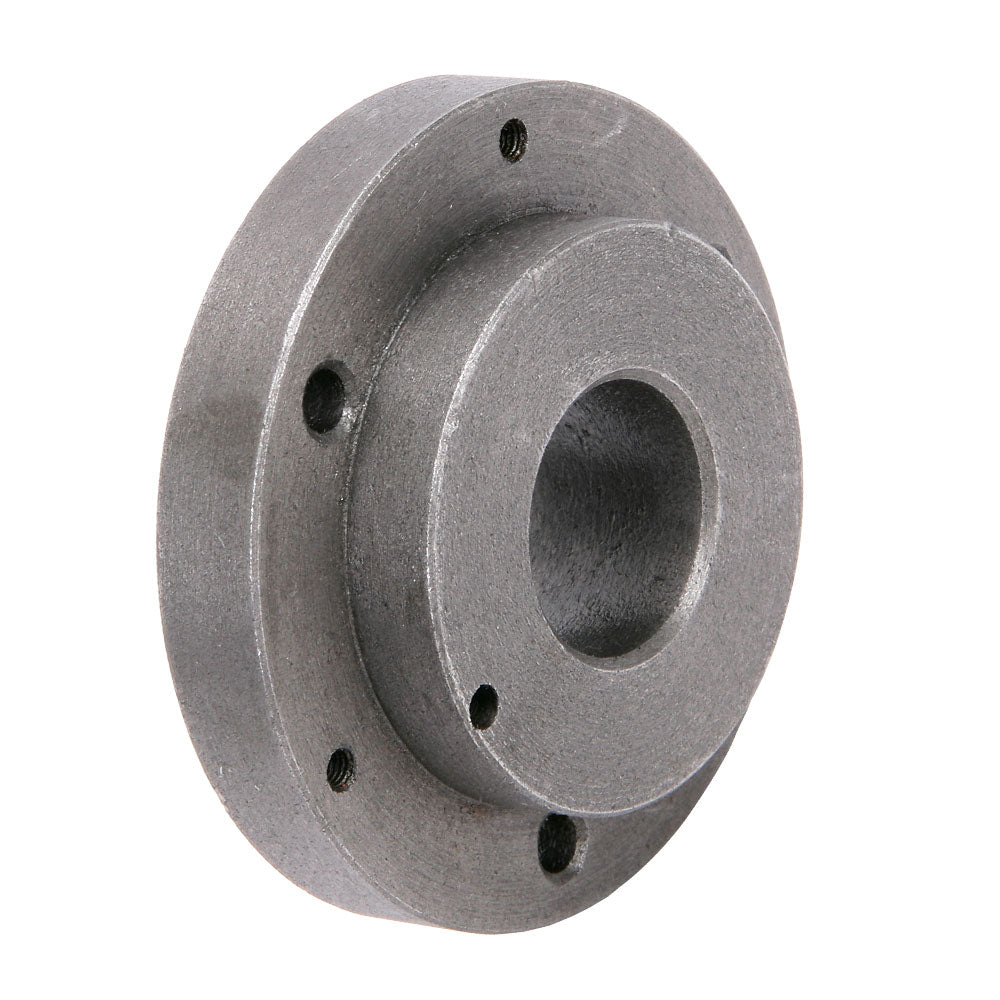

Retainer, Quill Pinion - Right, Bench Mill
Retainer, Quill Pinion - Right, Bench Mill
SKU:5692
Regular price
$15.61 USD
Regular price
Sale price
$15.61 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock
Couldn't load pickup availability
Key Features
Key Features
- Quill pinion retainer, right
- Fits HiTorque bench mills and large bench mills
- Part of quill Z-axis handle assembly
- Width: 2.44" (62.0 mm)
- Thickness: 0.71" (18.0 mm)
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
Right quill pinion retainer for the HiTorque Bench Mill, HiTorque Large Bench Mills and SIEG SX2.7 & SX3.5 bench mills.
Fits between the quill gear and the quill pinion pivot.
Due to a different size head on the HiTorque Deluxe bench mill model 6550, see part #6260 for this retainer for that model.
Specifications
Width: 2.441" (62 mm)
Thickness: 0.709" (18 mm)
Registration Diameter: 1.693" (43 mm)
Bore: 0.787" (20 mm)
