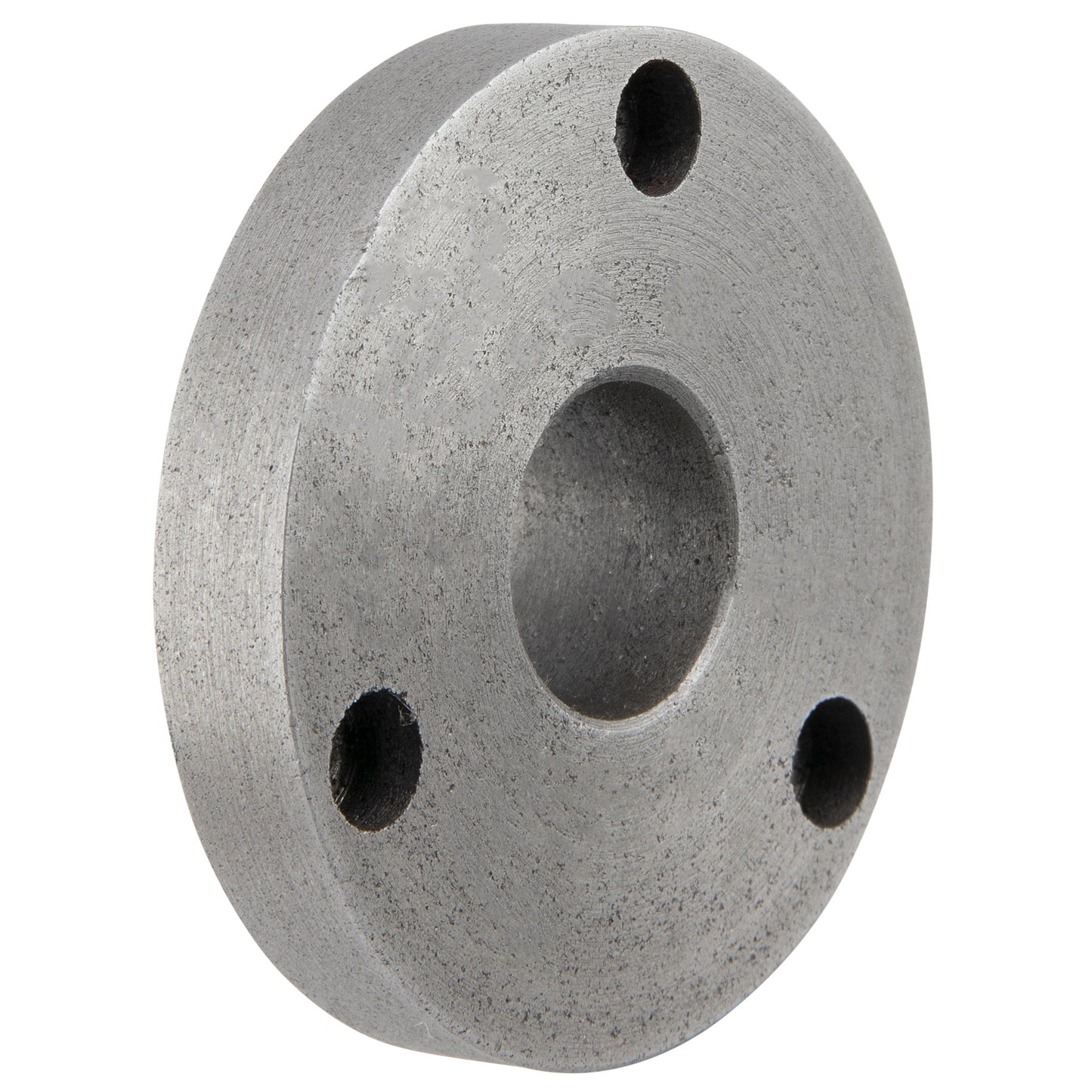

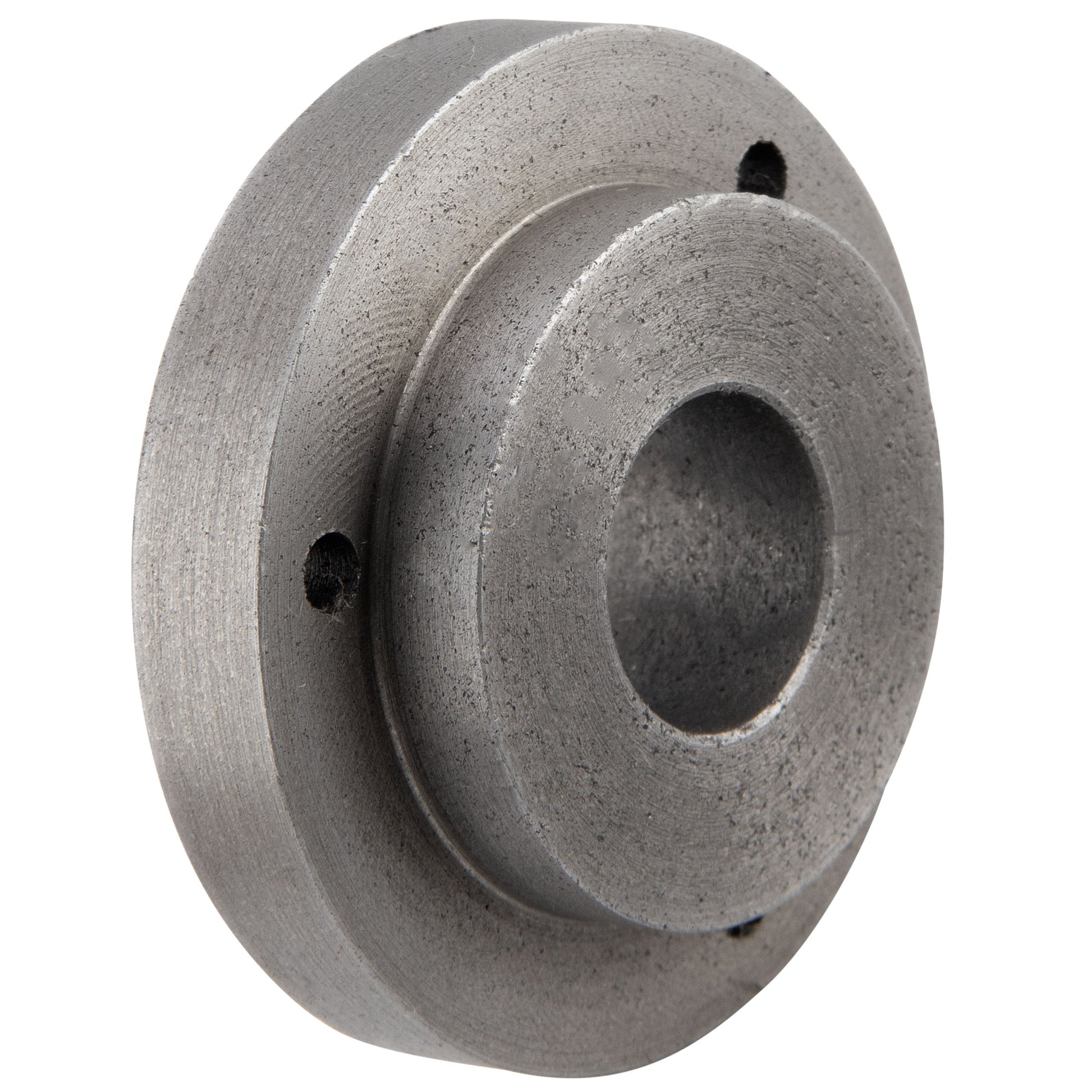

Retainer, Quill Pinion - Right, Deluxe Bench Mill
Retainer, Quill Pinion - Right, Deluxe Bench Mill
SKU:6260
In stock
Couldn't load pickup availability
Key Features
Key Features
- Quill pinion retainer, right
- Fits HiTorque deluxe bench mill
- Part of quill Z-axis handle assembly
- Width: 2.44" (62.0 mm)
- Thickness: 0.71" (18.0 mm)
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
Right quill pinion retainer for the HiTorque Bench Mill and SIEG SX2.7L bench mills.
Fits between the quill gear and the quill pinion pivot.
The HiTorque deluxe bench mill model 6550 has a slightly larger head than the other bench mills in that line resulting is slight changes in the parts around the quill. For the part on other HiTorque bench mills and large bench mills see part #5692.
Specifications
Width: 2.441" (62 mm)
Thickness: 0.709" (18 mm)
Registration Diameter: 1.693" (43 mm)
Bore: 0.787" (20 mm)
