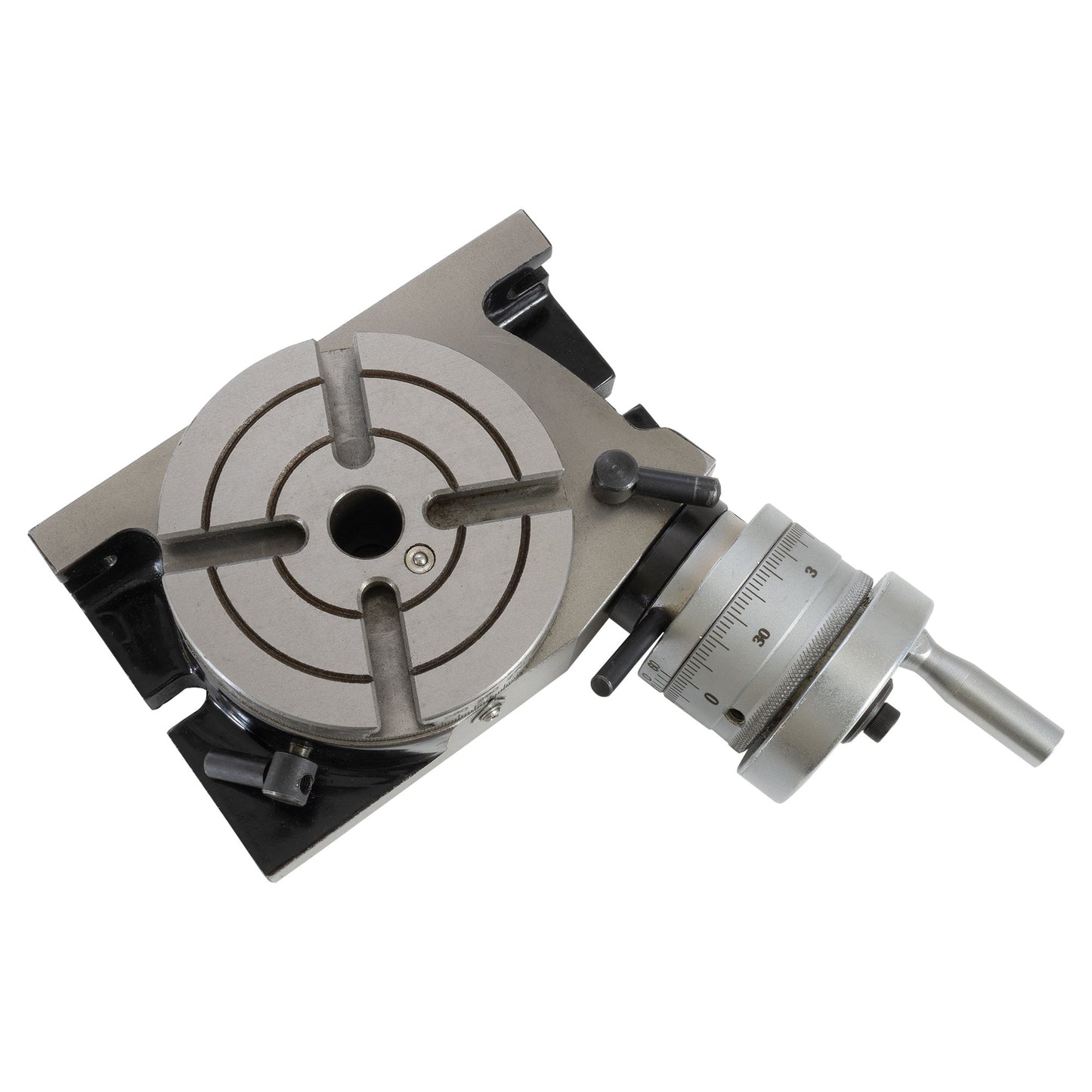

Rotary Table Low Profile 4"/100mm

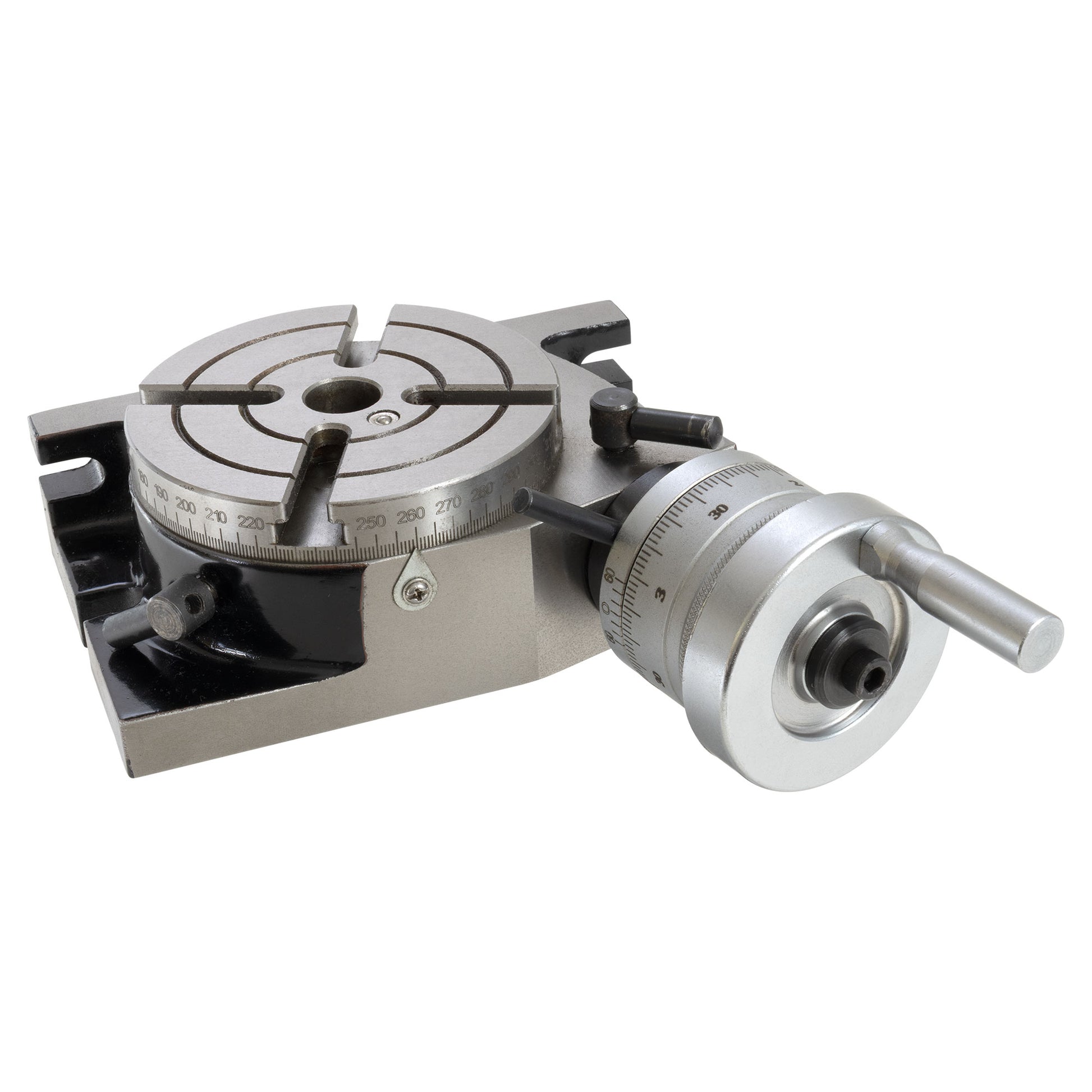

Rotary Table Low Profile 4"/100mm
In stock
SKU:6757Shelf Location: (C01 - 02)
Couldn't load pickup availability
Key Features
Key Features
- Horizontal or vertical use
- 4" (100mm) diameter table rotates 360°
- 1:72 ratio or 5° per handwheel revolution
- Scale reads to 15 minutes
- Low profile - 55mm (2.17") tall
- 2 Morse taper center hole
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
This 4" horizontal/vertical rotary table is perfect for indexing, circular cutting, angle setting, bolt patterns, arched slots, cutting out flywheels, boring, and spot facing operations on a milling machine.
This rotary table is made of precision machined cast iron and has a 2 Morse taper center hole. The table is graduated with a 360-degree scale. The handwheel utilizes a 1:72 ratio resulting in 5° per handwheel revolution. The rotary table is furnished with lock down clamps. The table has a low profile of 55mm (2.17") in the horizontal position.
Specifications
Ratio: 72:1
Table Diameter: 4" (102mm)
Height (Mounted Horizontal): 2.2" (56mm)
Body Length: 4" (103mm)
Body Width: 6.14" (156mm)
Center Hole Taper: MT-2
Center Height (Mounted Vertically): 2" (52mm)
T-Slot Width: 1/4" (M-6)
Minimum Vernier Reading: 20 Second
Flatness of Table Surface (Concave): 0.20 to 0.030µ
Parallelism of Table Surface to Base: 0.20 to 0.030µ
Squareness of Table Surface to Base: 0.20 to 0.030µ
Runout of Table Surface: 0.020 to 0.030µ
Runout of Center Taper: 0.015 to 0.025µ
Squareness of Table Surface to Angle Face Slot: 0.20 to 0.030µ
Center Hole Parallel with the Angle Face: 90°
