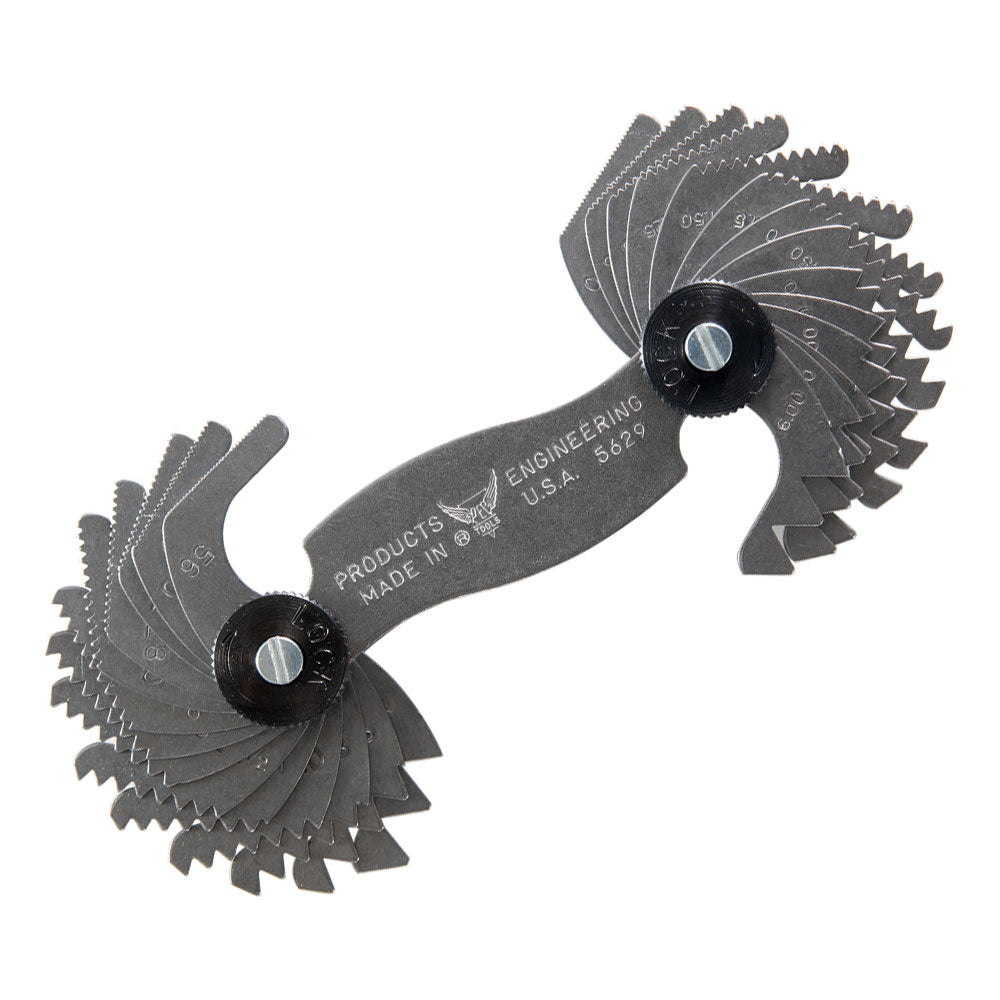

Screw Pitch Gage, Inch/Metric 28 Leaves, PEC

Screw Pitch Gage, Inch/Metric 28 Leaves, PEC

Made in United States of America (USA) Made in United States of America (USA)

2746

$31.95 USD
$31.95 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Key Features

  • Screw pitch gage with 28 leaves
  • Measures 60° threads from 4 - 56 TPI and 0.50 - 6.00 mm
  • Each blade clearly marked with thread size
  • Blades are protected in sturdy steel case
  • Locking device at both ends of case

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

Screw pitch gage made in the US by Products Engineering Corporation (PEC).

The correct pitch is determined by engaging the blade teeth with the threads you are measuring.

Gage measures 60 degree threads from 4-56 TPI and 0.50-6.00mm.

Each blade is clearly marked with the thread size and a each node of the gage has a locking wheel to secure the blade when measuring.

The correct pitch is determined by engaging the blade teeth with the threads you are measuring.

This screw pitch gage measures the following screw pitches:

Leave Sizes: 4, 6, 8, 10, 11, 11-1/2, 12, 13, 16, 20, 28, 32, 40, 56 threads per inch (TPI)

Leave Sizes: 0.50, 0.75, 1.00, 1.25, 1.50, 1.75, 2.00, 2.50, 3.00, 3.50, 4.00, 4.50, 5.00, 6.00 mm
