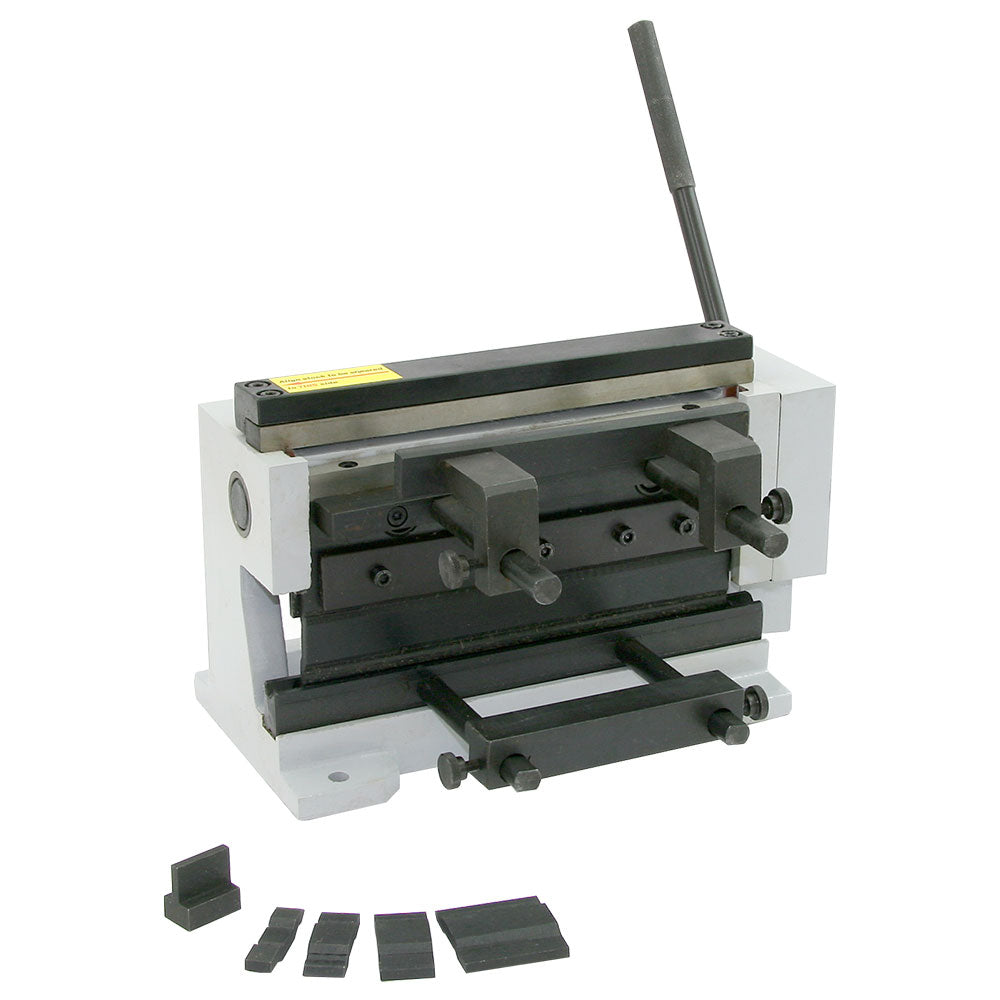

Shear and Brake Combination, 8"

Shear and Brake Combination, 8"

5587

$249.95 USD
$249.95 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Key Features

  • Shear sheet metal, plastics, circuit boards
  • Bend sheet metal up to 90 degrees
  • Maximum material width 7.75" (197 mm)

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

This small shear and brake combination is great for small sheet metal projects.
It cuts metal, plastics, and printed circuit boards.
The bending brake will make bends up to 90 degees. It includes a full length bending die as well as four different length smaller dies.
The base of the machine is 9.4" x 5.4".

Chris's Tips

Here is a quick video sowing the use of the 8" Shear and Brake Combination.

Specifications

Maximum Material Width: 7.75" (196.850 mm)

Maximum Thickness Aluminum: 0.039" (1.0 mm)

Maximum Thickness Brass: 0.039" (1.0 mm)

Maximum Thickness Circuit Booard: 0.059" (1.5 mm)

Maximum Pan Depth: .625" (15.875 mm)

Minimum Reverse Bend: .25" (6.350 mm)

Machine Weight: 31.45 lbs (14 kg)

Base Dimensions (W x D): 9.45" x 5.39" (240.030 mm x 136.906 mm)

Mounting Holes Center to Center (W x D): 7.717" x 4.528" (196 mm x 115 mm)

Overall Dimensions (W x D x H): 11.250" x 5.01" x 06.625" (285.750 mm x 127.254 mm x 168.275 mm)
