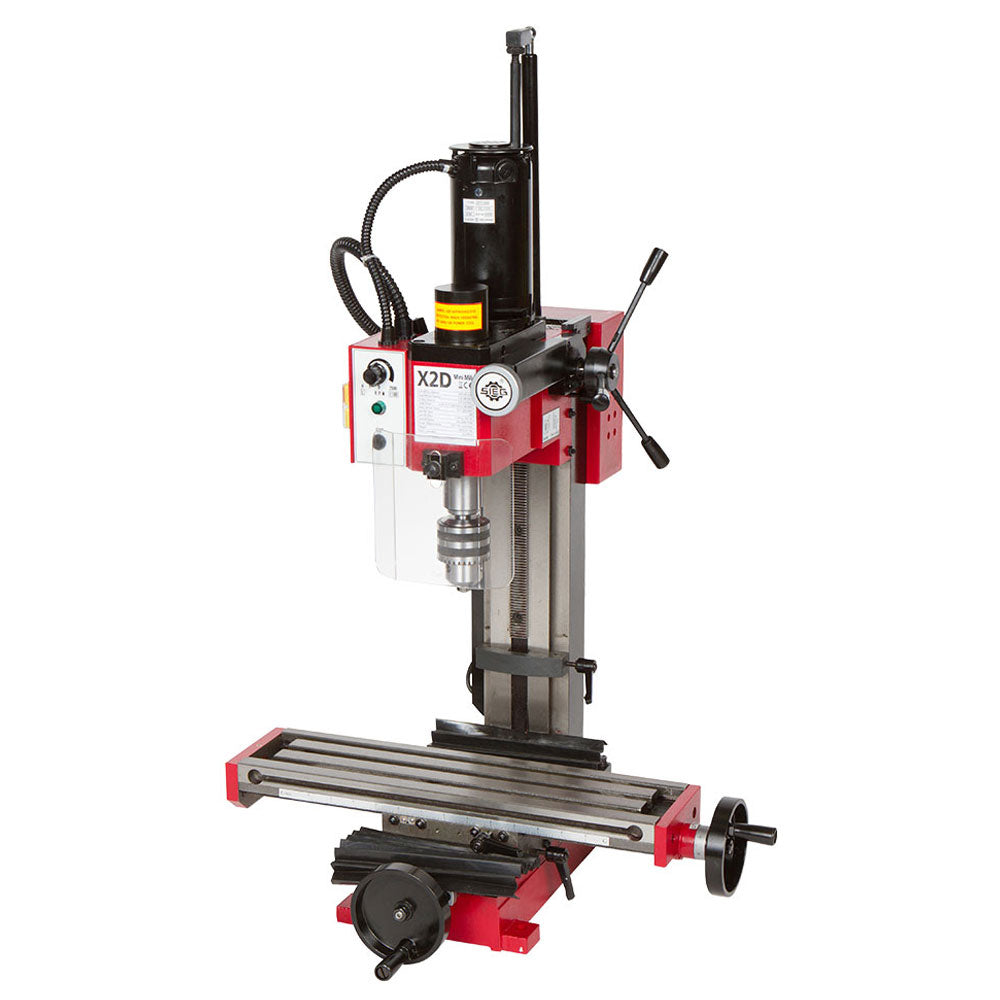

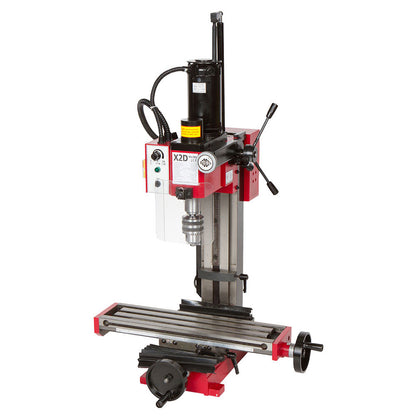

SIEG X2D Mini Mill

The SIEG X2D Mini Mill has all the features you want at an incredibly low price.

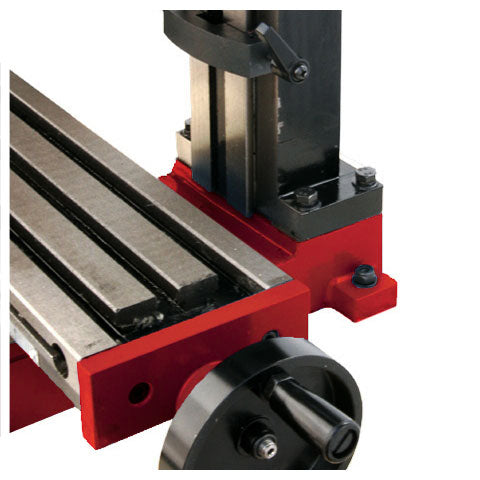

This mill has a solid column. It does not tilt from side to side. This construction is significantly stiffer than the tilting column on other mini mills.

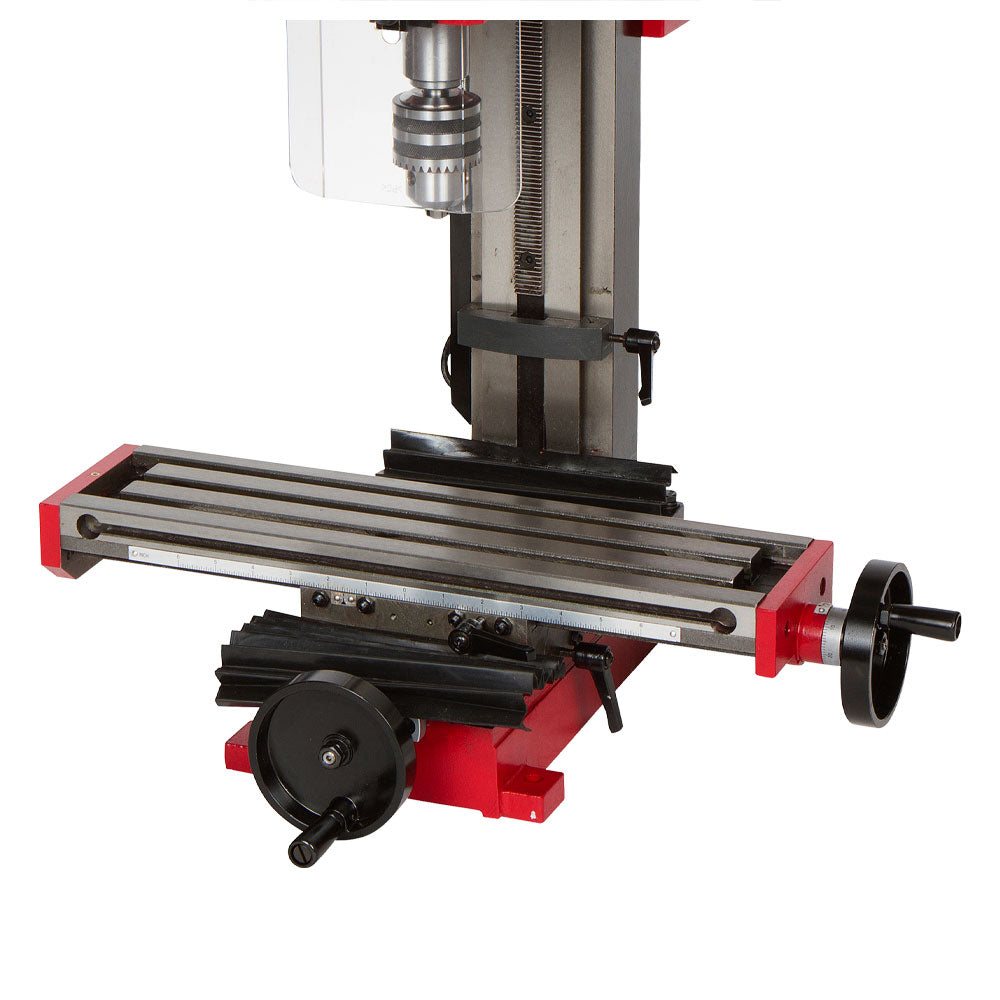

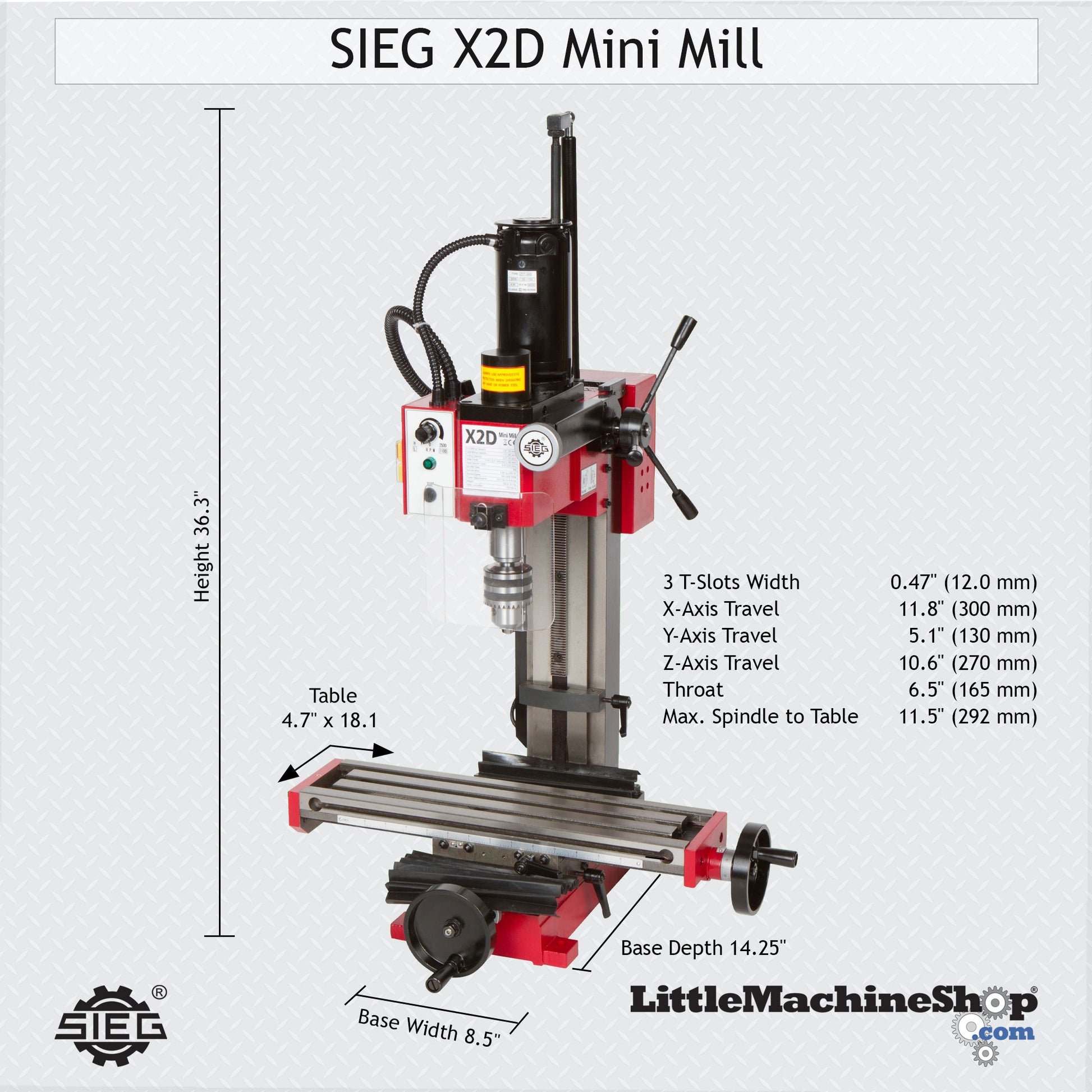

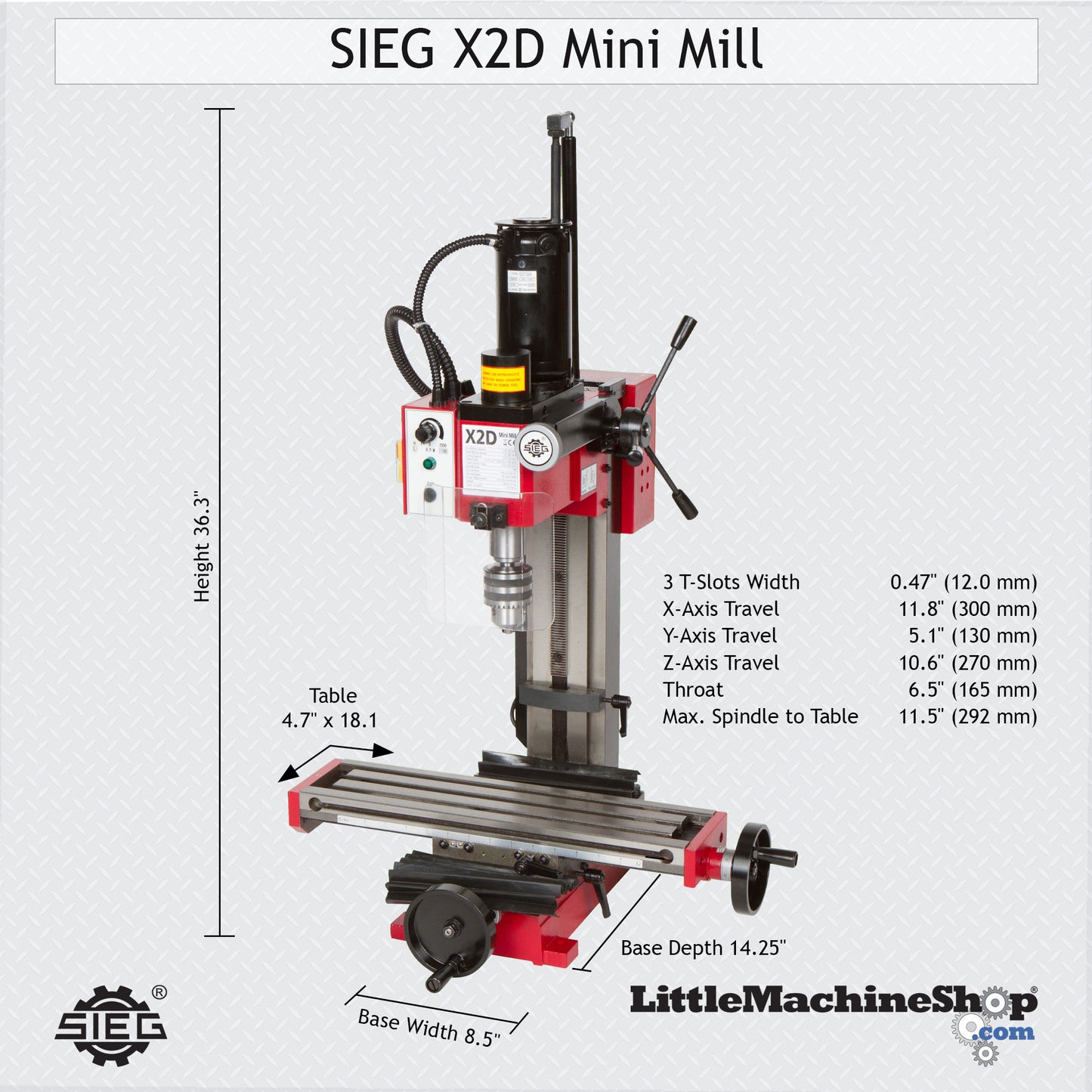

The large mill table provides 50% more table area than other mini mills. It also has 30% more travel in each direction. The resettable feed dials allow you to zero them at any point.

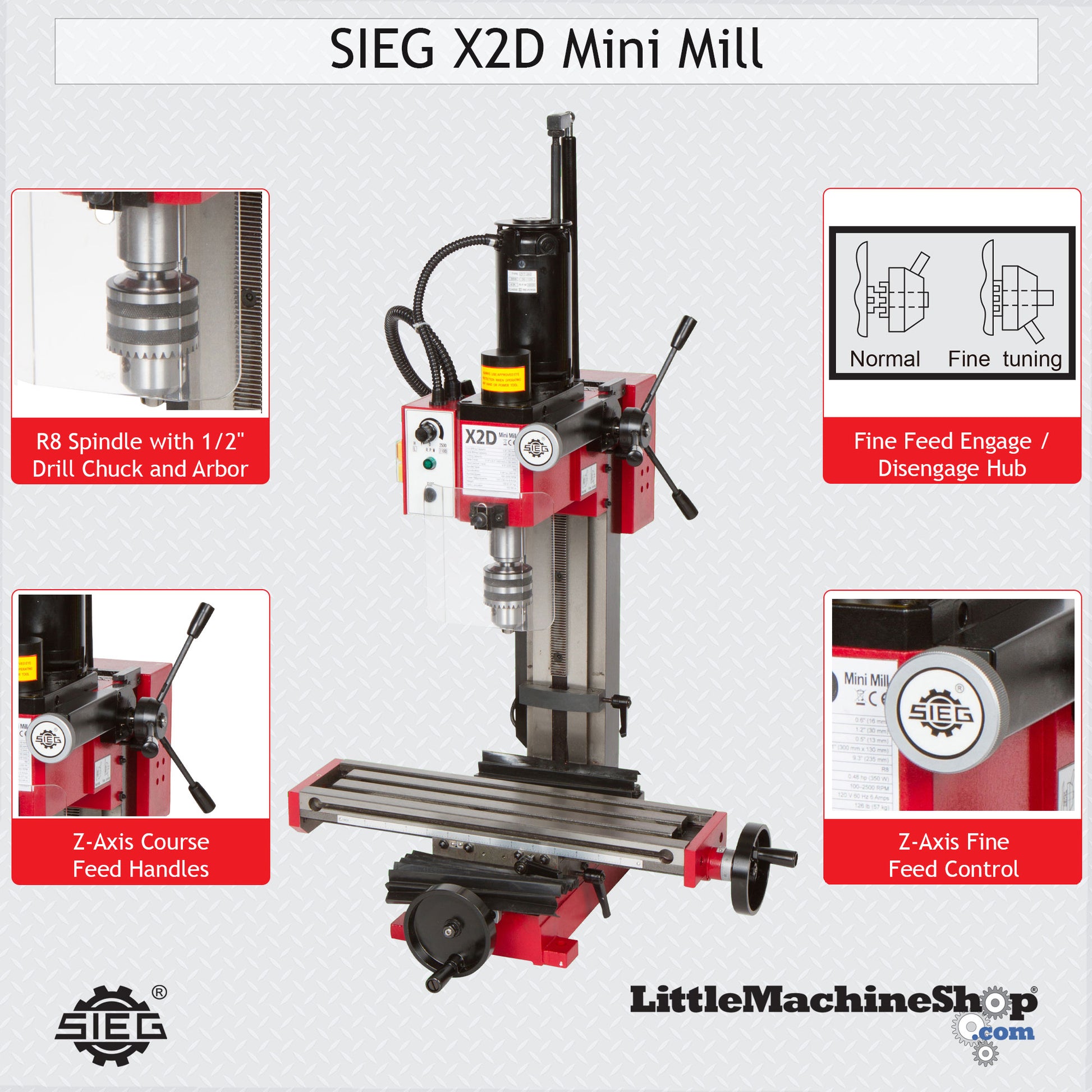

The SIEG X2D Mini Mill has drill press handles for drilling and fast motion of the mill's head. It also has Z-axis fine feed with 0.001" resolution for milling operations.

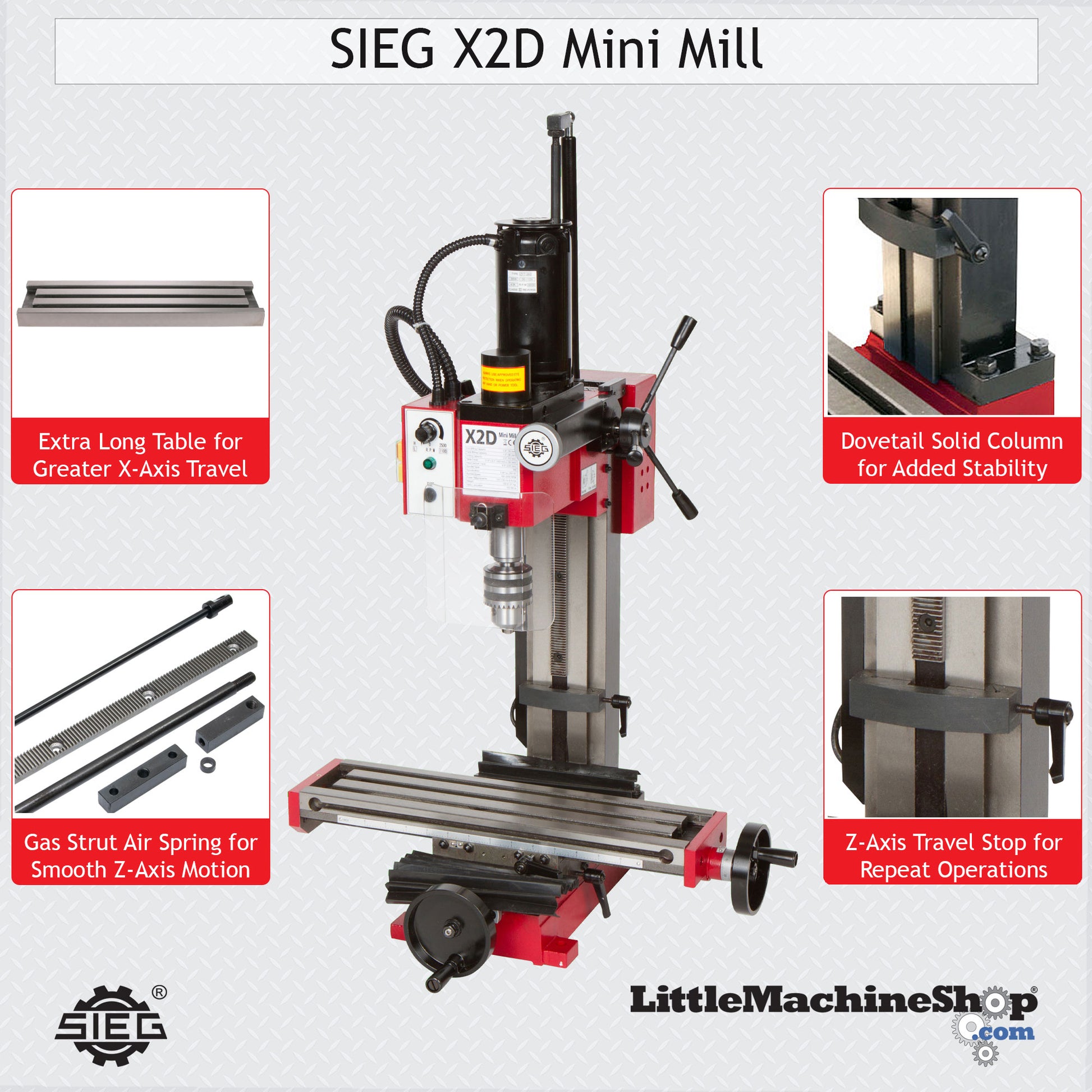

This model also includes the air spring head support for even support throughout the Z-axis travel.

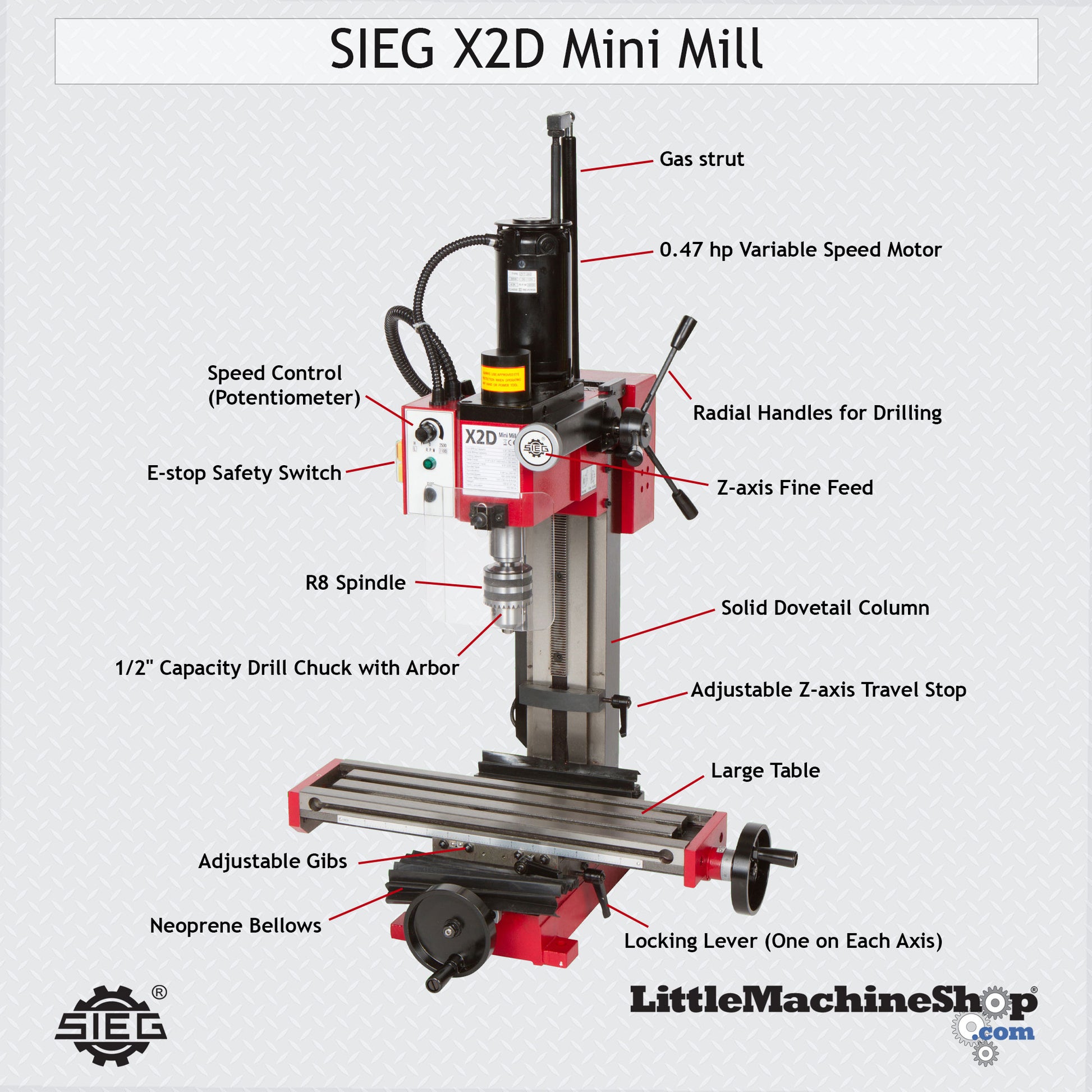

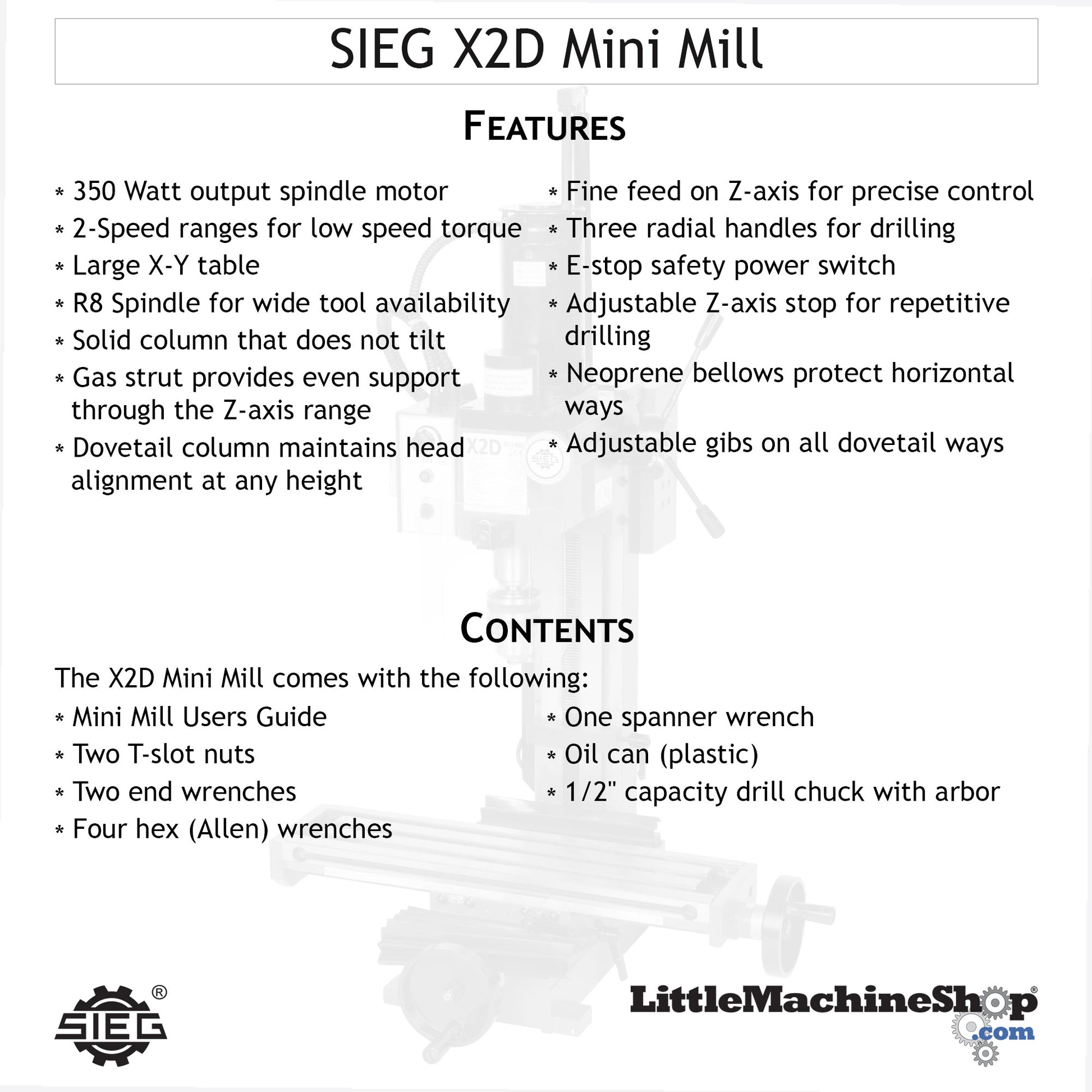

The LittleMachineShop.com exclusive version of this machine features:

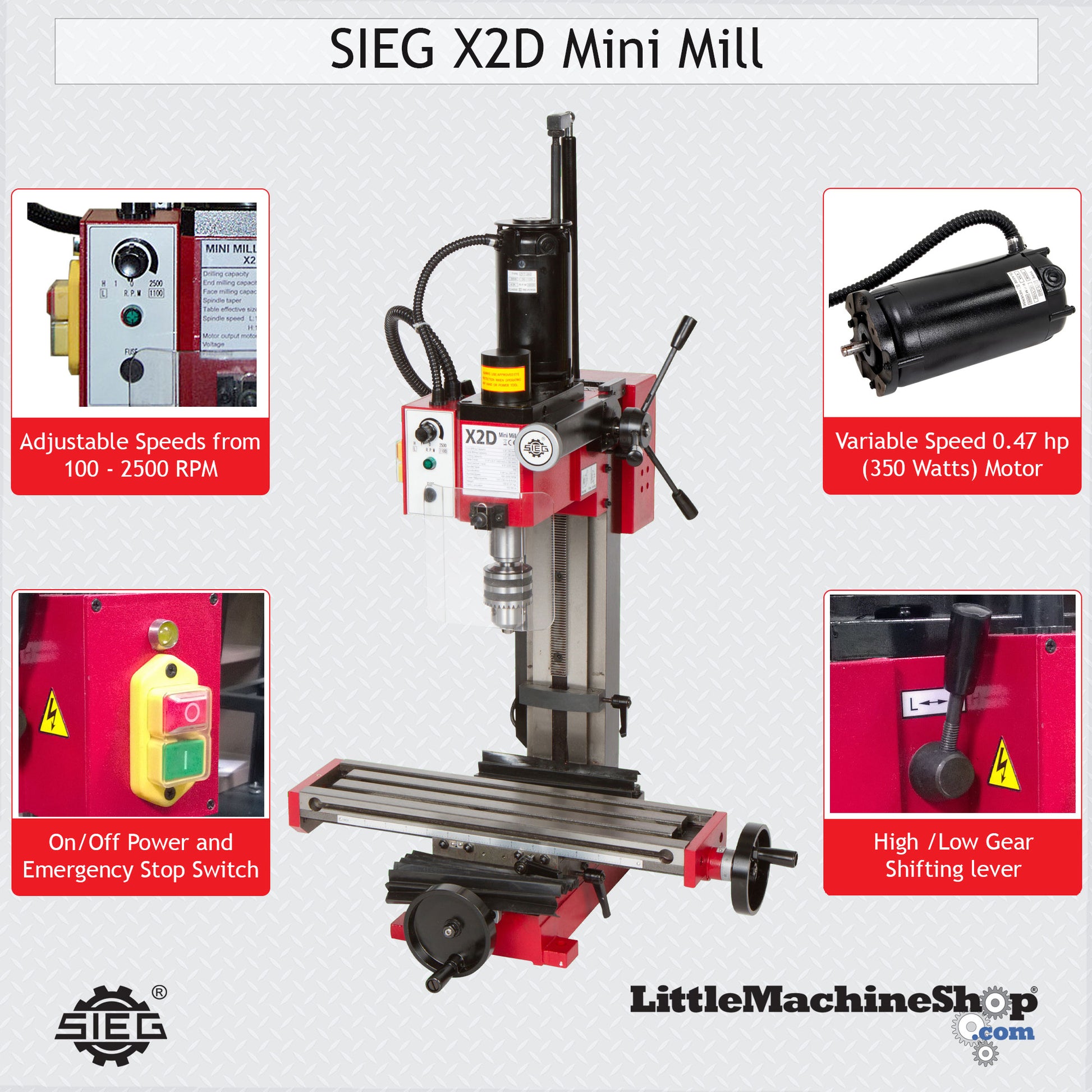

• 350-Watt output spindle motor
• 2-Speed ranges for low-speed torque
• Large X-Y table
• R8 Spindle for wide tool availability
• Solid column that does not tilt
• Gas strut provides even support through the Z-axis range
• Dovetail column maintains head alignment at any height
• Fine feed on Z-axis for precise control

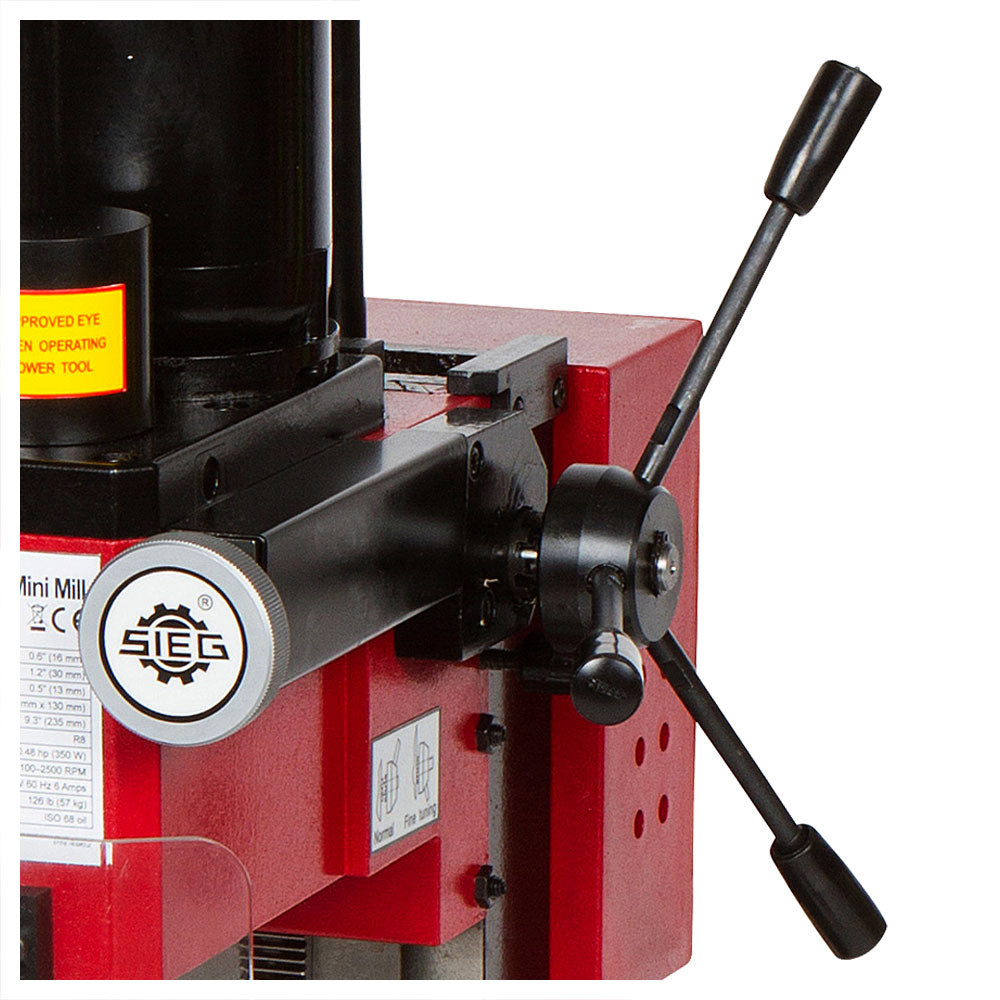

• Three radial handles for drilling

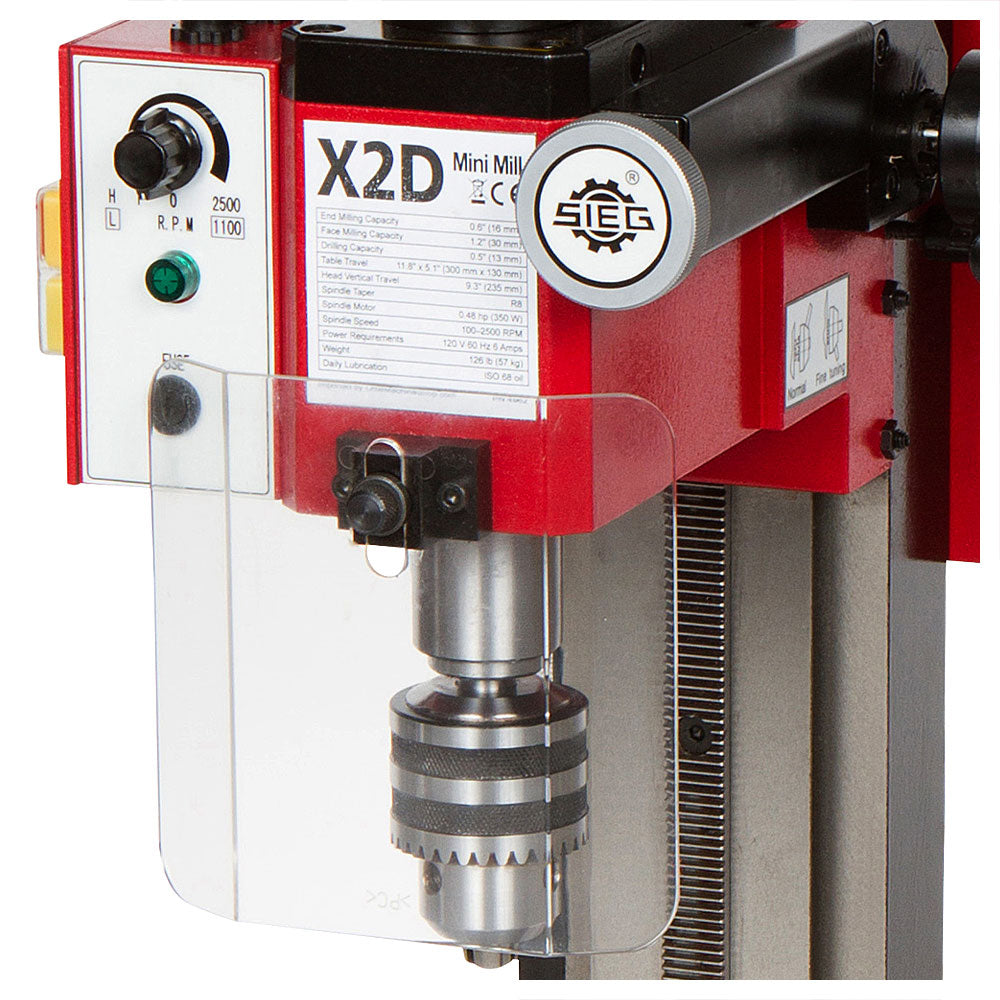

• E-stop safety power switch
• Adjustable Z-axis stop for repetitive drilling
• Neoprene bellows protect horizontal ways
• Adjustable gibs on all dovetail ways

The X2D Mini Mill comes with the following:

• Mini Mill Users Guide
• Two T-slot nuts
• Two end wrenches
• Four hex (Allen) wrenches
• One spanner wrench
• Oil can (plastic)
• 1/2" capacity drill chuck with arbor

See what the difference is between the SIEG drive system and the HiTorque drive system.

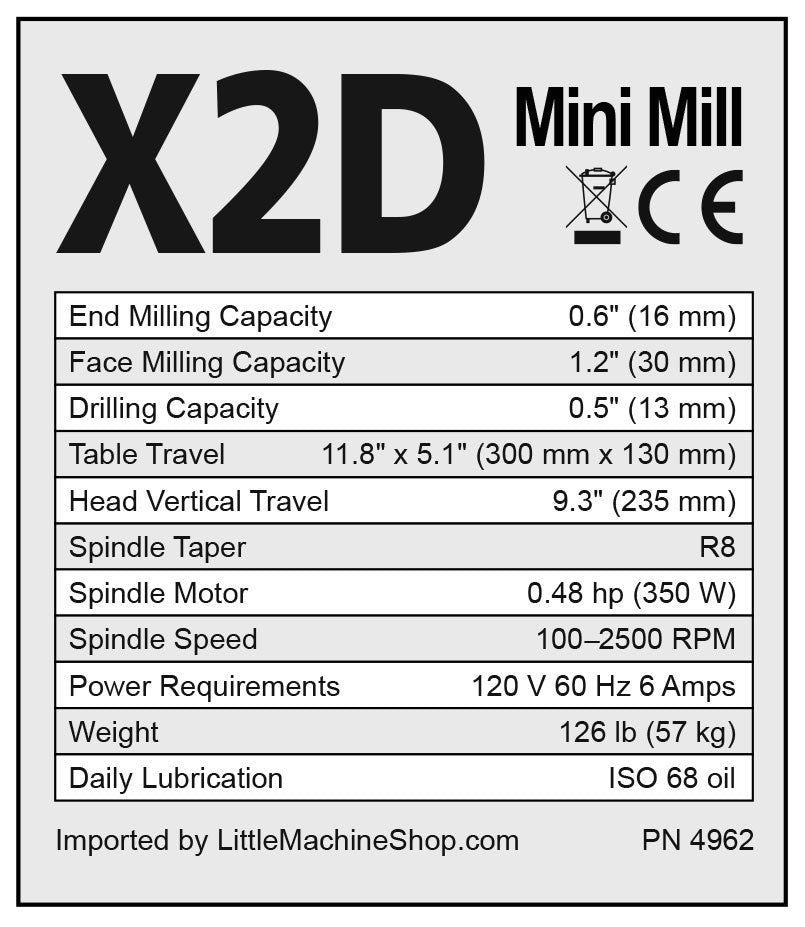

You can compare the specifications for our mills.

Let's compare the LittleMachineShop.com Solid Column HiTorque Mini Mill to mini mills with a tilting column.

The tilting column on other folk's mini mills tilts 45 degrees from side to side and it is possible to make some angled cuts. One user (and only one) has described to me a cut that was impossible to make any way but using a tilting column.

HiTorque mills have a solid column. The solid column has thicker walls than the tilting column, and a stiffer joint where it joins the base, so the column is significantly more rigid than the tilting column. It is not as easy to knock it out of tram as the tilting column mini mill. If you need to cut on an angle... angle blocks, tilting vises, sine vices, fixture plates, etc. are a much better way of ensuring and accurate cut.

LittleMachineShop.com no longer sells mills with a tilting column. That is an indication of how much better the solid column is.

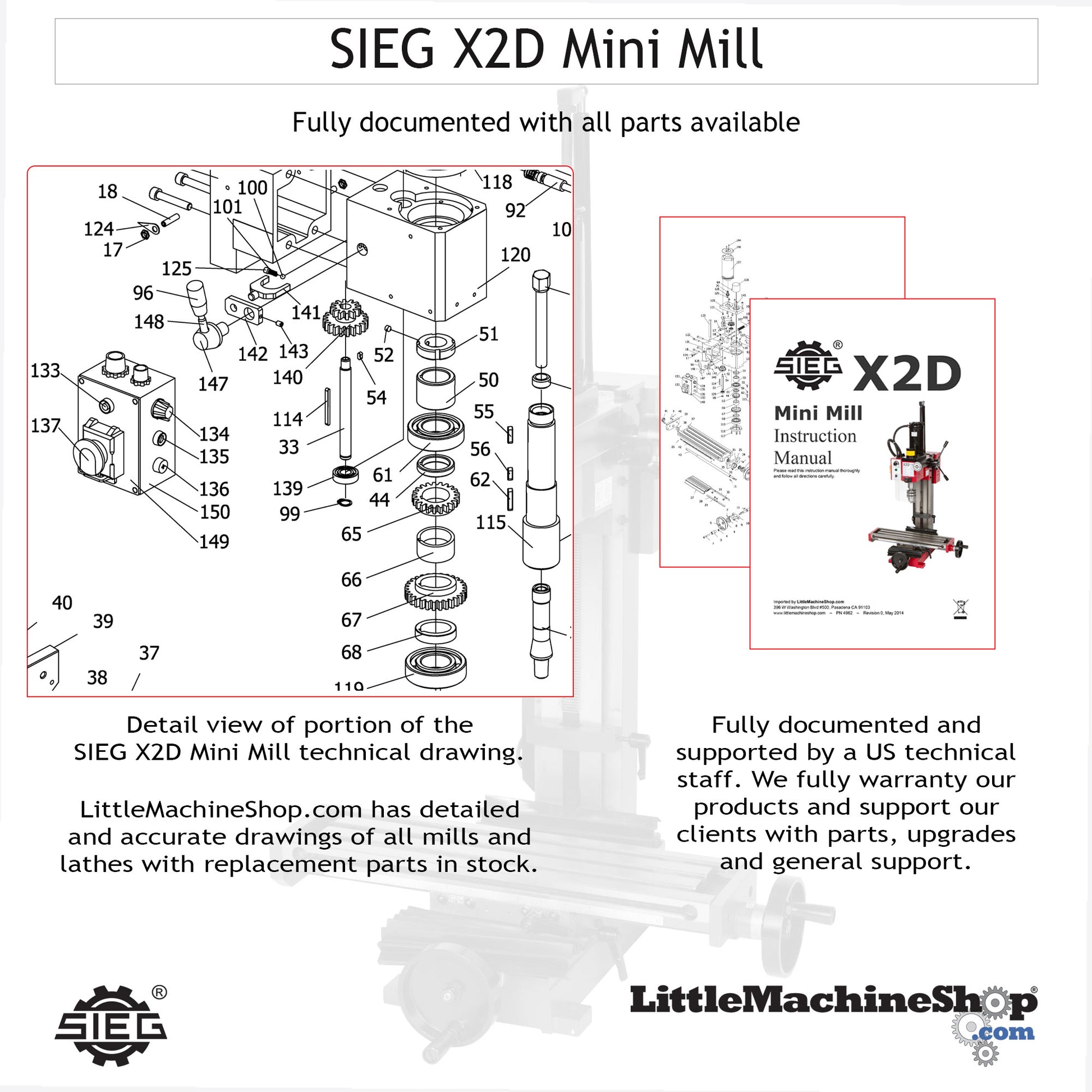

• X2D 4962 Parts Diagram
