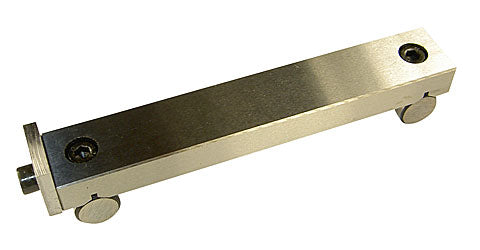

Sine Bar, 5"
Sine Bar, 5"
Low stock
SKU:3525Shelf Location: (D03 - 06)
Couldn't load pickup availability
Key Features
Key Features
- Working face accurate to 0.00003" per inch of length
- 5.00" center distance of rolls accurate to 0.0002"
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
Use a sine bar and space blocks to set or measure extremely accurate angles.
Chris' Tips
There are tables available that tell you how tall a stack of space blocks you need for a particular angle with a sine vise or sine bar. But nowadays, it is probably easier to find a calculator that has a sine function than the appropriate table. (There is such a calculator built into Windows--switch to scientific view.)
Here is how to use a calculator to calculate the stack of space blocks you need:
1. Enter the angle in decimal degrees (for example 15.2).
2. Press the SINE (or SIN) key (result 0.26218).
3. Press the X (multiply) key.
4. Enter the roll spacing (for example 5).
5. Press the = (equal) key (result 1.31095).
