Spider, 9x20 HiTorque Bench Lathe Spindle

Spider, 9x20 HiTorque Bench Lathe Spindle

Made in United States of America (USA) Made in United States of America (USA)

$84.95
$0.00 $84.95
Sale Sold out
Shipping calculated at checkout.

Low stock

6809 (A08 - 04)

Key Features

  • Spindle spider for the 9x20 bench lathe
  • Use to support long stock through spindle
  • Holds up to 1.1" (28 mm) stock
  • Made in the USA for LittleMachineShop.com

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

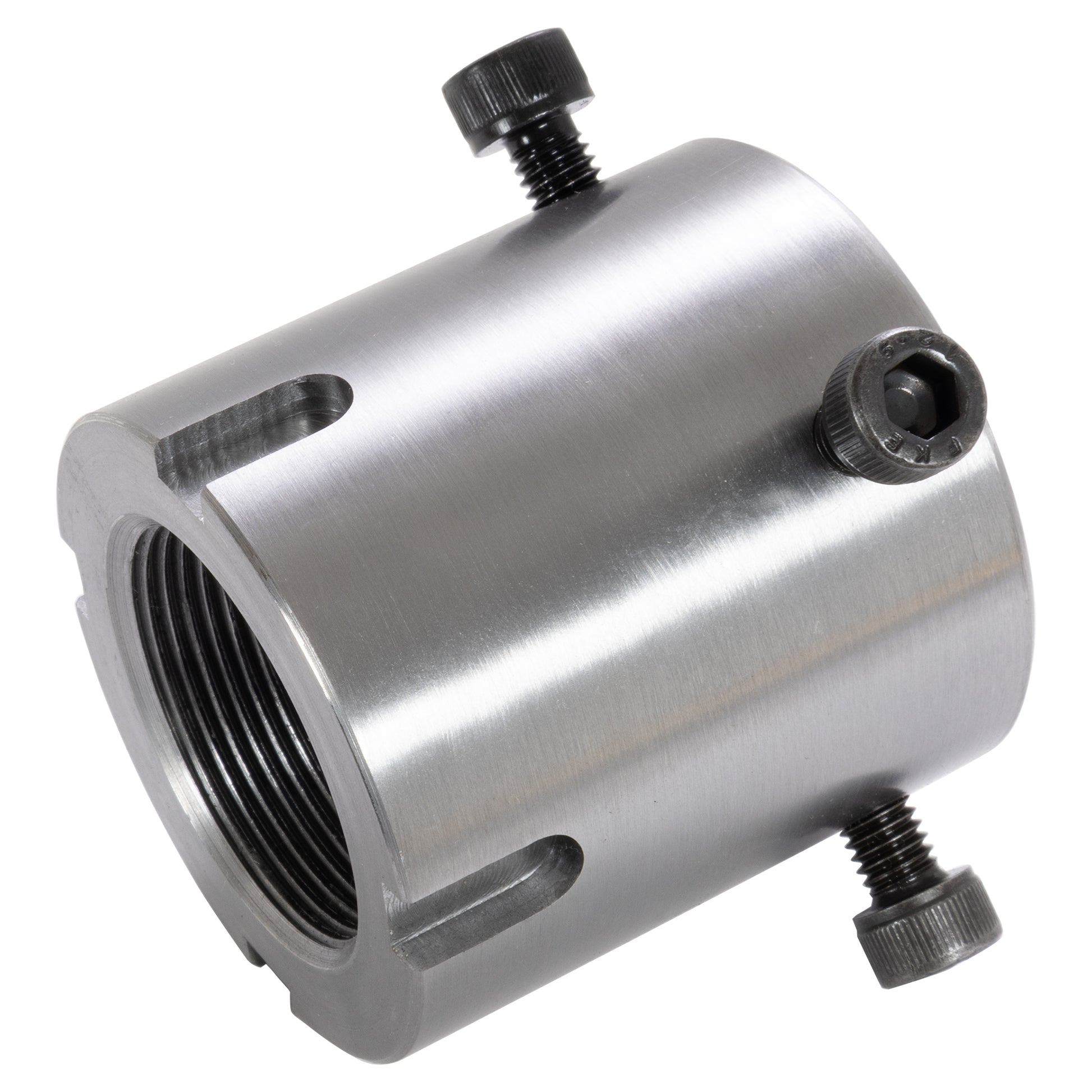

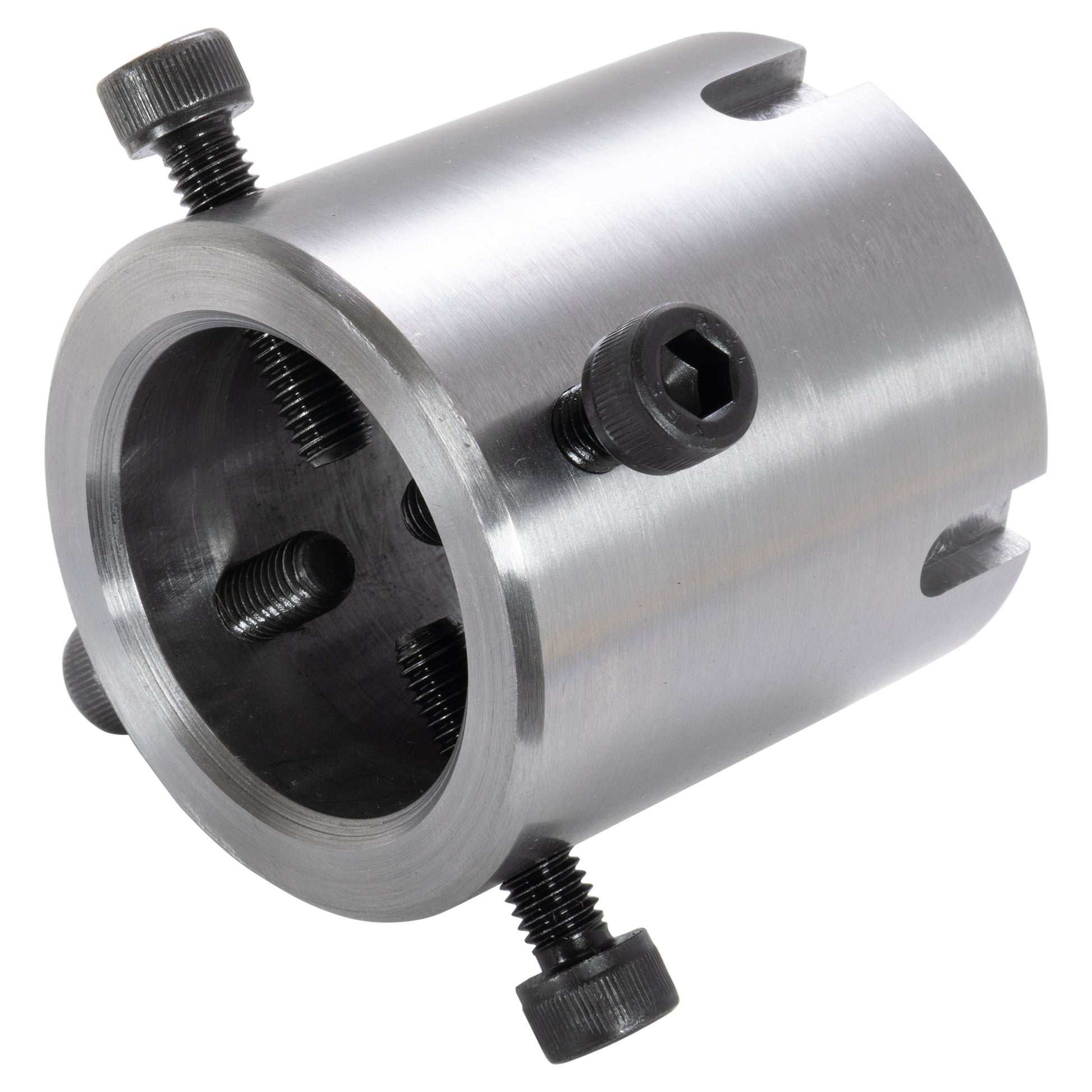

Bench lathe spindle spider. Made for LittleMachineShop.com and designed specifically for the HiTorque 9x20 and SIEG SC50 bench lathe spindle.

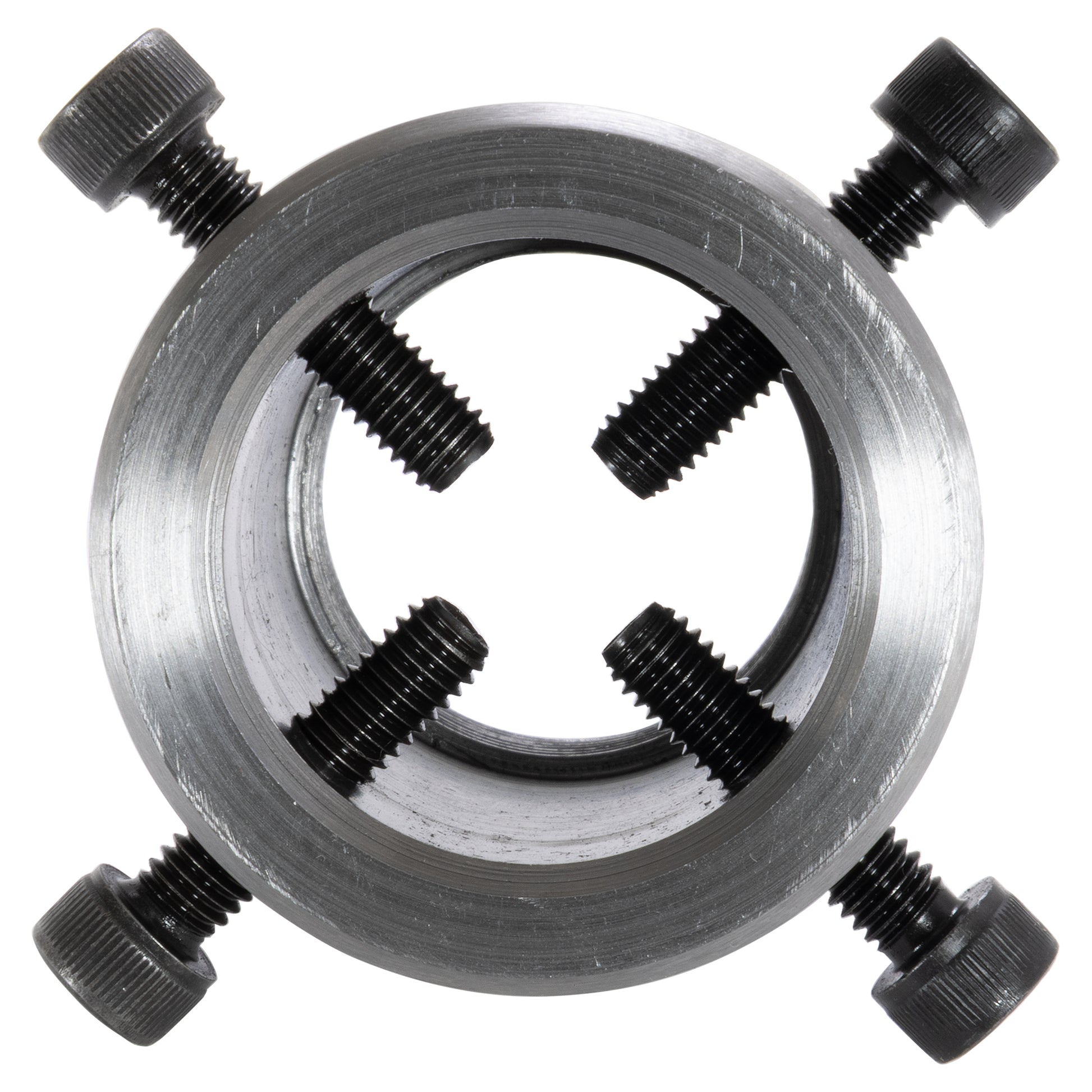

Use this spider to support long stock extending out the back of the spindle. The spider has a 1" (25 mm) diameter capacity with four adjustment screws sized M6x20.

Mount on back of spindle by removing and replacing one of the M33x1.5 spindle locking nuts (6599). Once attached to spindle, stock is secured by four cap screws.

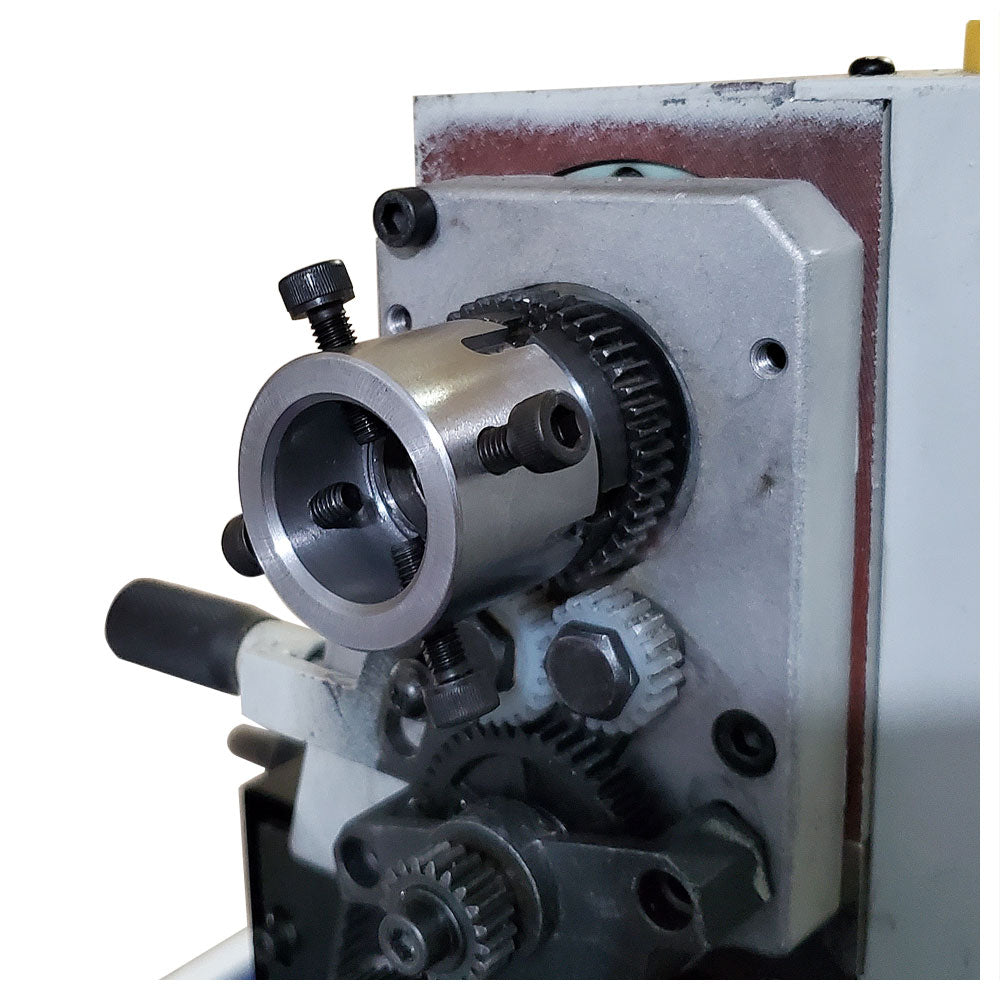

* NOTE: Requires having change gear door open during operation and unscrewing safety latch key (6117) from door and inserting into "auto-stop" safety mechanism. Mounted Spider shown is for mini lathe.
