Priest Tools

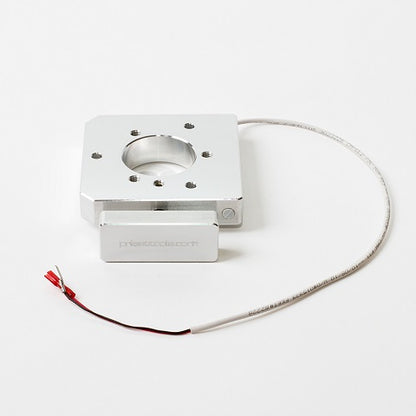

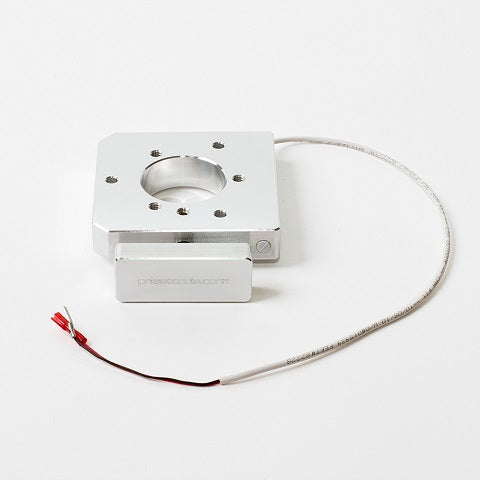

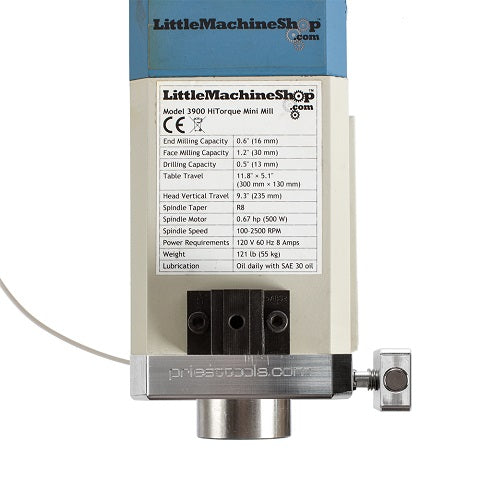

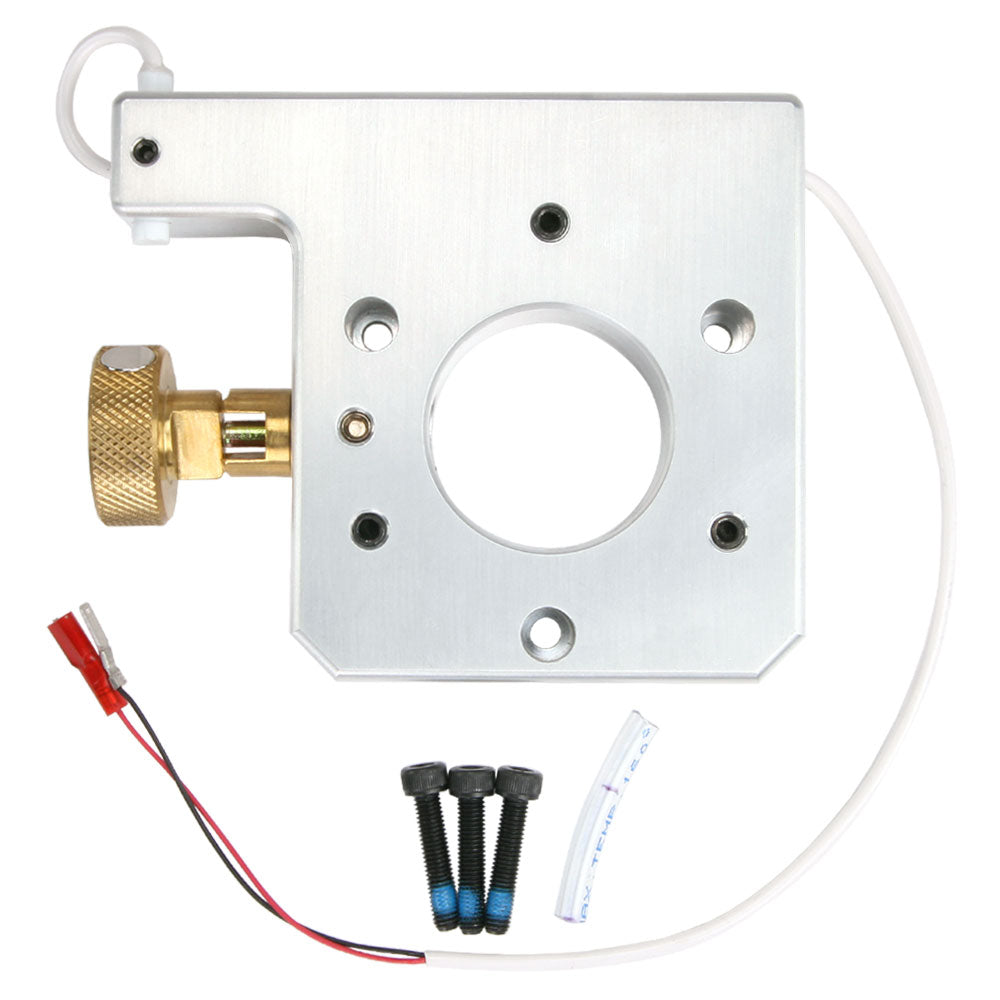

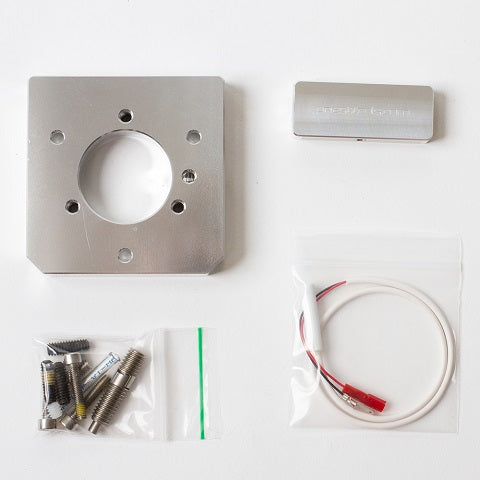

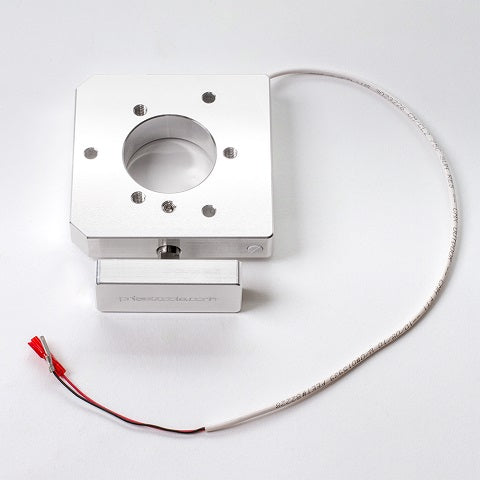

Spindle Lock, Interlocked, HiTorque Mini Mill

Spindle Lock, Interlocked, HiTorque Mini Mill

Made in United States of America (USA) Made in United States of America (USA)

$179.95
$179.95
Sale Sold out
Shipping calculated at checkout.

Out of stock

4762 (D05 - 03)

Key Features

  • Makes tool changes easier, faster, and safer
  • When engaged, the plunger automatically drops into the locking hole as the spindle is rotated
  • An electro-magnetic interlock disables power to the motor when the spring plunger is engaged
  • Frees both hands for changing tools
  • Loosen and tighten keyless chucks with one hand

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

The spindle brake provides a semi-automatic method of locking the spindle freeing both hands to complete a tool change. A safety switch disables power to the motor when the spring plunger is engaged.

Fits SIEG SX2 mills

  • Integral Safety Switch and hand-retractable Spring Plunger
  • Approximate dimensions: 4 x 3.5 x .75"
  • The Spindle Brake Plate is made of 6061-T6511 Aluminum
  • Made to exacting specifications in precision machining center
  • Made in the USA

Chris' Tips

Here are the installation instructions.

Product Compatibility

This product was designed for machines manufactured by SIEG, including those listed below. We have added compatibility for other non-SIEG machines when a “fit” can be verified.

If your machine is not listed, we cannot verify compatibility but encourage you to contact us. With additional information we may be able to help you find a solution.

  • Micro-Mark 84630 MicroLux Mini Mill
  • LittleMachineShop.com 3900 HiTorque Mini Mill
  • SIEG SX2L Mini Mill
  • LittleMachineShop.com 3960 HiTorque Mini Mill
  • LittleMachineShop.com 3990 HiTorque Mini Mill
  • LittleMachineShop.com 4190 HiTorque Mini Mill
  • LittleMachineShop.com 6450 HiTorque Mini Mill
  • SIEG SX2LF Mini Mill
