Spring, X-Axis Handwheel, HiTorque Large Bench Mill
Spring, X-Axis Handwheel, HiTorque Large Bench Mill
SKU:6092
Regular price
$0.95 USD
Regular price
Sale price
$0.95 USD
Unit price
/
per
Shipping calculated at checkout.
In stock
Couldn't load pickup availability
Key Features
Key Features
- Handwheel spring for HiTorque large bench mill
- Fits SIEG SX3.5 mills
- Wire diameter 1.20 mm, coil 24 mm
- Length 23 mm uncompressed
- 5 coils, right hand wind with closed end
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

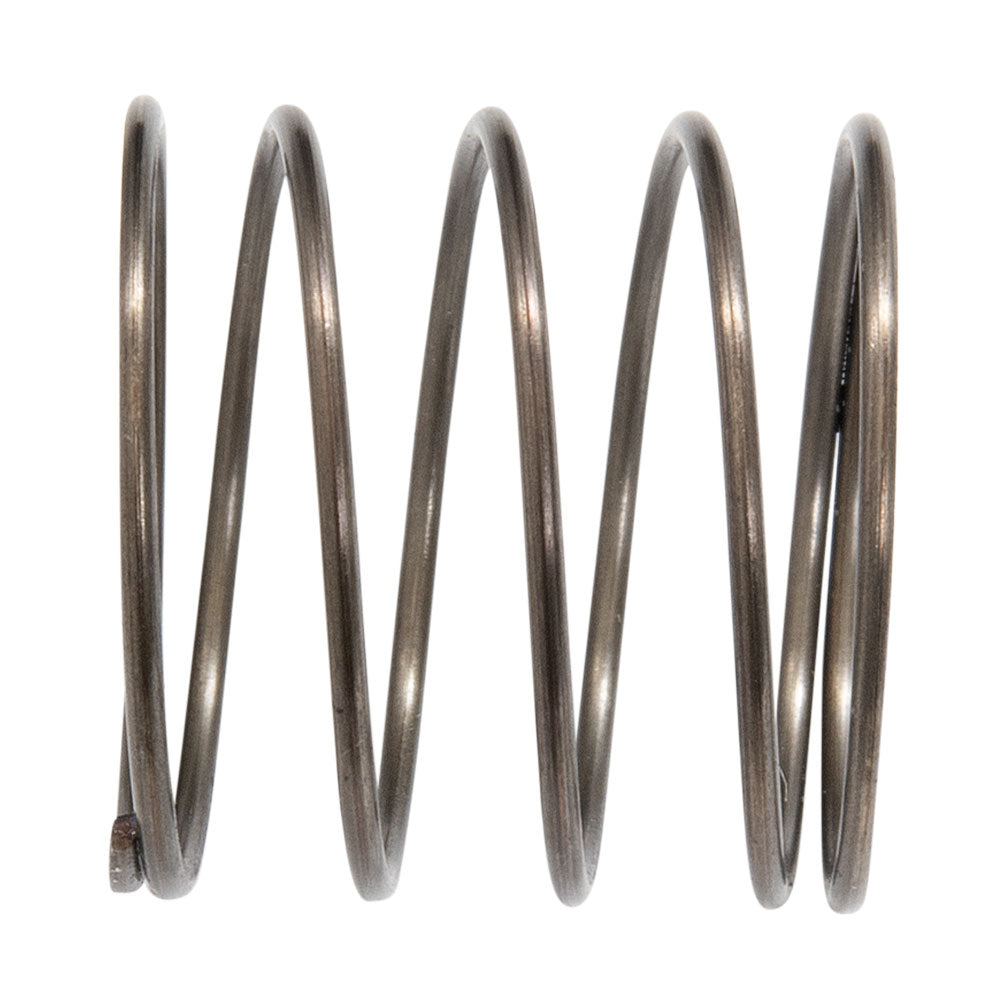

X-Axis handwheel compression spring for the HiTorque large bench mill and SIEG SX3.5 mills. The spring allows the X-Axis handwheel to engage a clutch and spring back to neutral when disengaged. The wire diameter of the spring is 1.20 mm with a 24 mm coil diameter. The length uncompressed is 23 mm with 5 coils and a right hand wind. The spring has a closed end.
